High End, high-performance AV receiver. Class AB amplification for stunning realism for both music and home cinema. 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR11 can deliver incredible theatre experiences.
Arcam AVR11 HDMI2.1 Class AB AV Receiver
€2,999
Call for availability
Call for availability
SEND EMAIL QUERYDescription

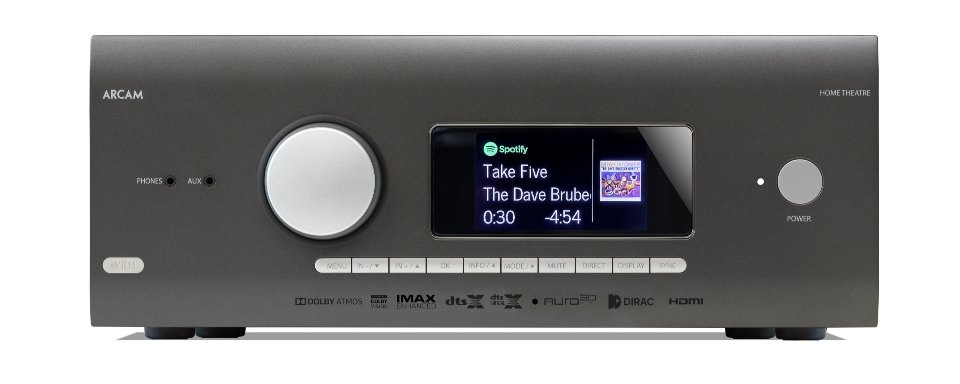

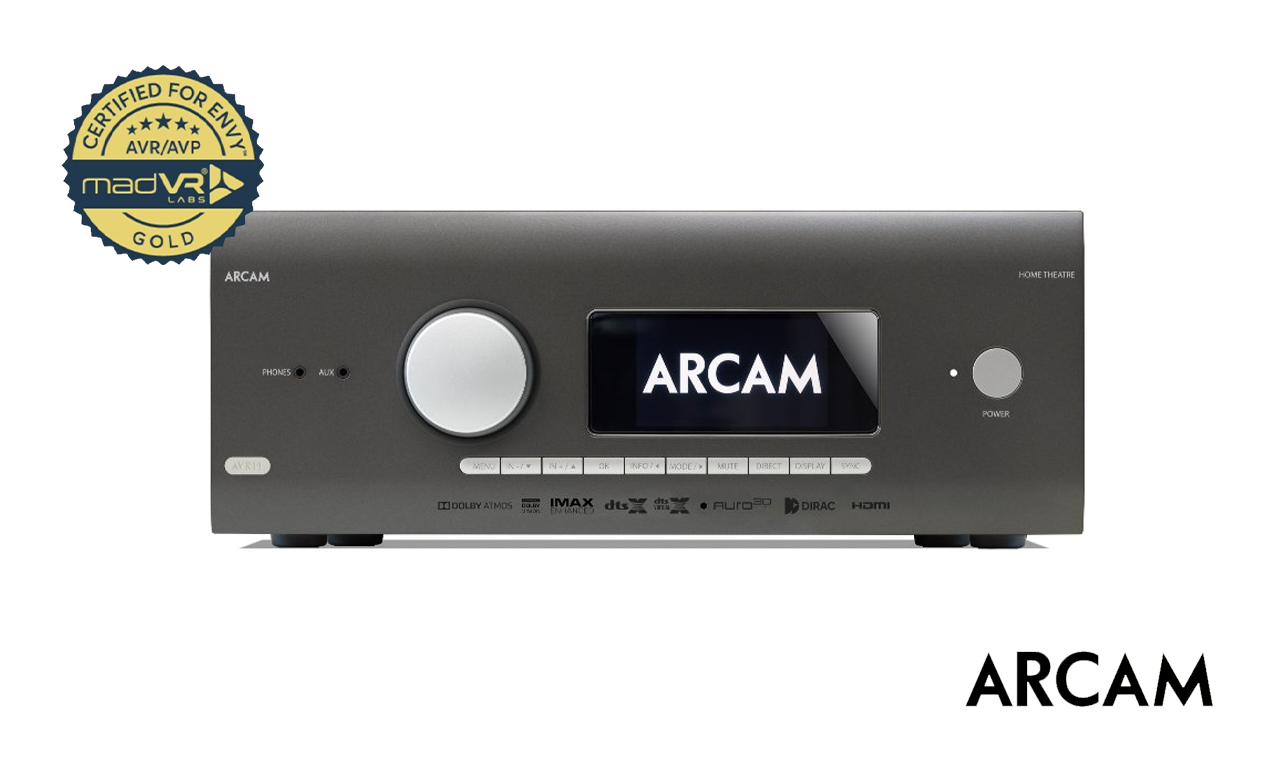

ARCAM AVR11
Rich Musicality + Immersive Sound = Stunning Realism
The AVR11 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR11 can deliver incredible theatre experiences.
The Arcam AVR11 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR11 features an over-engineered power supply and transformer for real world power with low noise. The 7 channels of Class AB amplification are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.
The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.
Dirac Live® Bass Control is available at an additional cost via the Dirac website: https://www.dirac.com/online-store/arcam-avr11/
Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.
PRODUCT DETAILS
- Dolby Atmos, DTS:X & AURO-3D 7.1.4 decoding

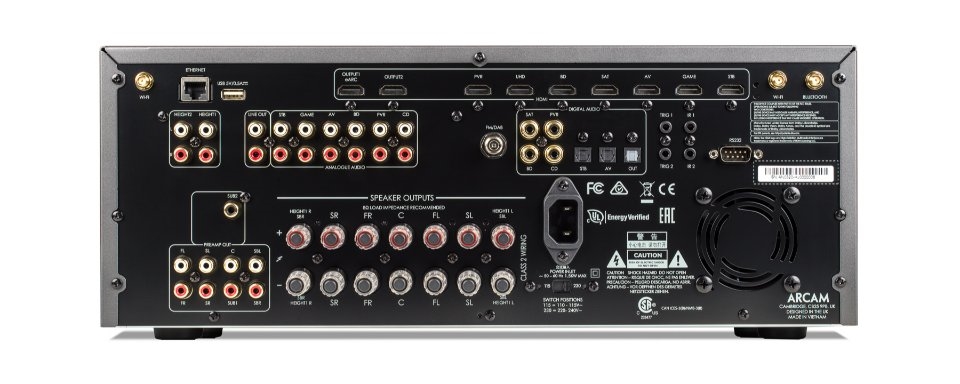

- 7 HDMI inputs, 2 HDMI outputs, eARC compatible
- HDMI 2.1 with HDCP2.3
- All inputs support 8K@60fps and 4K@120fps
- Supports Dolby Vision, HDR10+, HDR10, and HLG
- Includes Dirac Live® room correction
- Ready for Dirac Live Bass Control*
- Dual ESS 9026PRO audiophile DACs with ESS reference voltage regulators
- 7 Channels of Class AB power amplification
- Wi-Fi / Ethernet, RS232, and IR control
- Google Chromecast® built-in for streaming audio
- Apple® Airplay2
- Bluetooth aptX®HD
- Free MusicLife iOS and Android UPnP app
- Supports MQA
- Roon Ready
SPECIFICATIONS
| Continuous power output, per channel, 8Ω/4Ω |  |
| 2 channels driven, 20Hz – 20kHz, <0.02% THDÂ | 80W/100W |
| 2 channels driven, 1kHz, 0.2% THDÂ | 85W/120W |
| 7 channels driven, 1kHz, 0.2% THDÂ | 60W/85W |
| Residual noise & hum (A-wtd)Â | <0.15mV |
| Â | Â |
| Stereo Line Inputs | Â |
| Maximum input | 4.5V rms |
| Nominal sensitivity | 1V, 2V, 4V (user adjustable) |
| Input impedance | 47kΩ |
| Signal/noise ratio (A-wtd ref 100W) normal/stereo direct | 100dB/110dB |
| Frequency response | 20Hz—20kHz ± 0.2dB |
| Â | Â |
| Preamplifier Outputs | Â |
| Nominal output level | 1V RMS (max. 5V RMS) |
| Output impedance | 560Ω |
| THD+N (20Hz—20kHz) | –100dB |
| Â | Â |
| Headphone Output | Â |
| Maximum output level into 32Ω | 5Vrms |
| Output impedance | <100Ω |
| Â | Â |
| General | Â |
| Mains voltage | 110–120V or 220–240V, 50–60Hz |
| Power consumption (maximum)Â | 1.5kW (Thermal dissipation approx. 5200 BTU/hour) |
| Power consumption (idle, typical)Â | 90W (Thermal dissipation approx. 340 BTU/hour) |
| Power consumption (standby)Â | <0.5W |
| Dimensions W x D (including speaker terminals) x H (including feet)Â | 433 x 425 x 171mm |
| Weight (net)Â | 16.5kg |
| Weight (packed)Â | 19.8kg |
| Supplied accessories | Mains lead |
| Â | Remote control with 2 x AAA batteries |
| Â | Manual |
| Â | DAB/FM aerial |
| Â | 3 x WiFi/Bluetooth antennas |
| Â | Calibration microphone |
| Â | USB cable |
| EAN | 6925281994456 |
| Â | Â |
| Â | Â |
GET THE APP
Control the UPnP audio and basic function of this product with your iPad, iPhone or iPod Touch and the FREE MusicLife App! The Arcam control app is now available on Android.
Additional information
| Brand | Arcam |
|---|---|
| Amplifier Connectivity | Bluetooth, HDMI, Aux-In, Sub Pre-Out, Network Port, Wi-Fi, Dolby Atmos, 12 Channel |
