€5,499

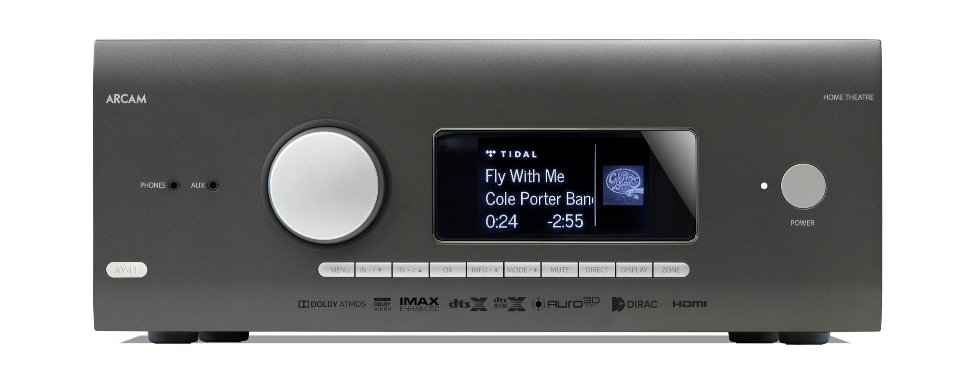

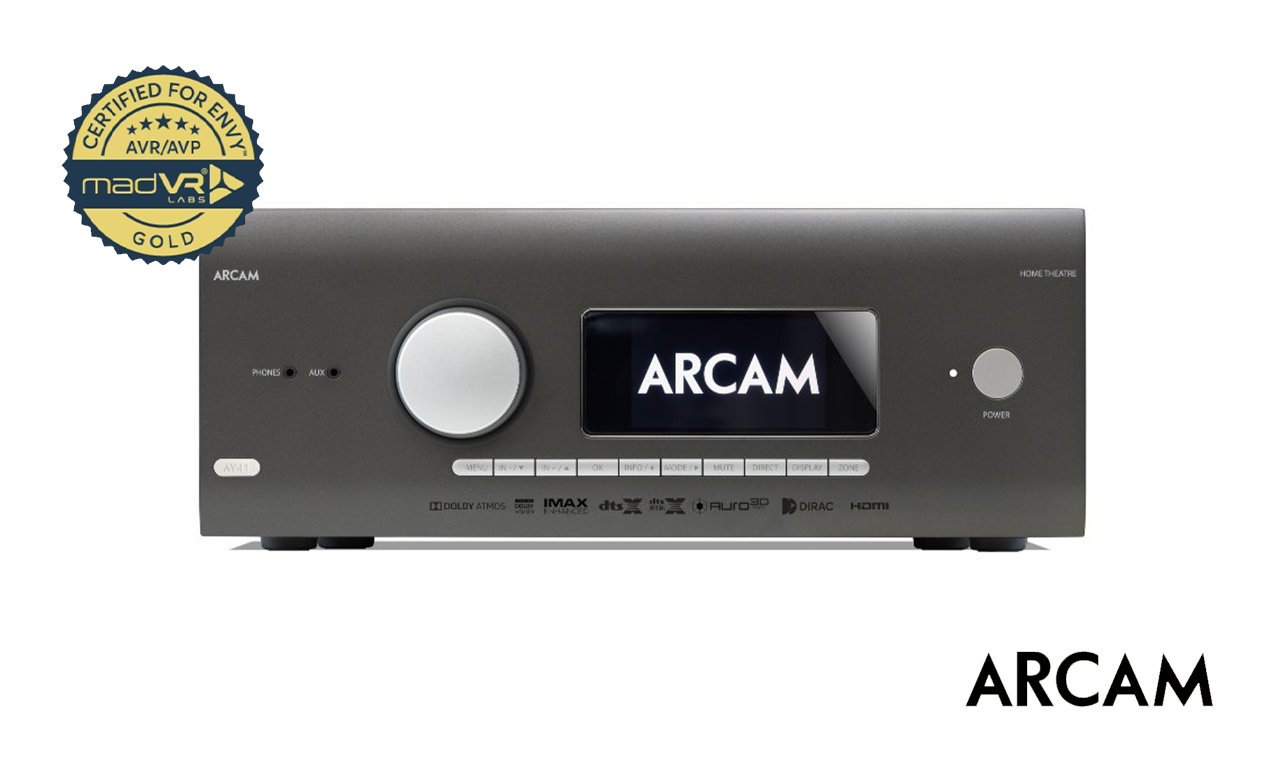

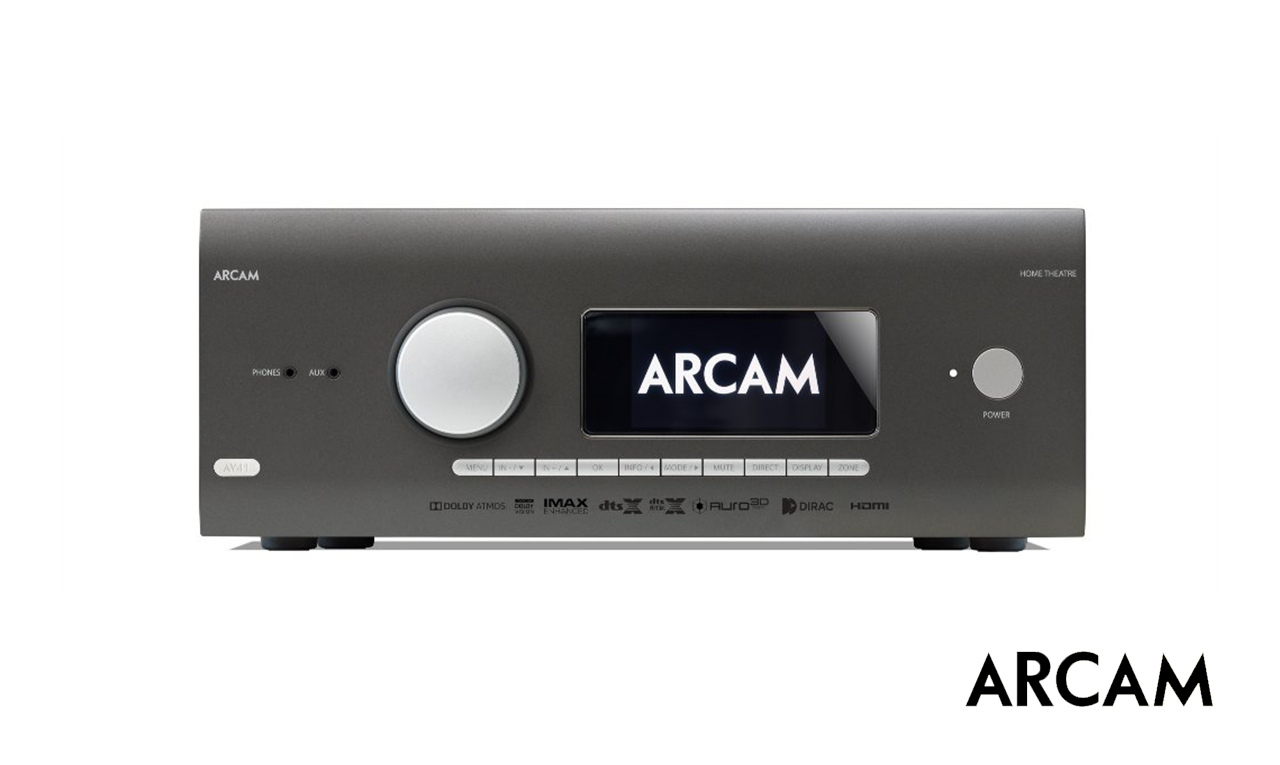

High-performance, audio/visual processor that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, the AV41 can deliver incredible theatre experiences in partnership with Arcam power amplifiers.
The AV41 is a high-performance, audio/visual processor that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, the AV41 can deliver incredible theatre experiences in partnership with Arcam power amplifers.
The Arcam AV41 is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AV41 boasts XLR balanced outputs for all 16 channels to deliver the highest quality analogue connection to power amplifiers.
The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.
Dirac Live® Bass Control is available at an additional cost via the Dirac website: https://www.dirac.com/online-store/arcam-av41/
Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.
| Stereo Line Inputs | Â |
| Maximum input | 4.5V rms |
| Nominal sensitivity | 1V, 2V, 4V (user adjustable) |
| Input impedance | 47kΩ |
| Signal/noise ratio (A-wtd ref 100W) normal/stereo direct | 100dB/110dB |
| Frequency response | 20Hz—20kHz ± 0.2dB |
Preamplifier Outputs | Â |
| Balanced (XLR) nominal output level per channel | 2V RMS (max. 10V RMS) |
| Single-ended (RCA) nominal output level per channel | 1V RMS (max. 5V RMS) |
| Output impedance | 560Ω |
| Headphone Output | Â |
Maximum output level into 32Ω | 5Vrms |
| Output impedance | <100Ω |
| General | Â |
| Mains voltage | 110–120V or 220–240V, 50–60Hz |
| Power consumption (maximum) | 50W (Thermal dissipation approx. 170 BTU/hour) |
| Power consumption (idle, typical) | 40W (Thermal dissipation approx. 170 BTU/hour) |
| Power consumption (standby) | <0.5W |
| Dimensions W x D (including speaker terminals) x H (including feet) | 433 x 425 x 171mm |
| Weight (net) | 10.6kg |
| Weight (packed) | 13.9kg |
| Supplied accessories | Mains lead Remote control with 2 x AAA batteries Quick Start Guide (full manual online) DAB/FM aerial 3 x Wi-Fi/Bluetooth antennas Calibration microphone USB cable |
| EAN | 6925281994548 |
Control the UPnP audio and basic function of this product with your iPad, iPhone or iPod Touch and the FREE MusicLife App! The Arcam control app is now available on Android.
| Brand | Arcam |
|---|---|
| Amplifier Connectivity | Bluetooth, Optical, HDMI, Aux-In, Sub Pre-Out, Network Port, Wi-Fi, Dolby Atmos, 16 Channel |
