The A15+ features an enhanced power supply design and cutting-edge wireless capabilities straight out of the box. Snapdragon Sound delivers uncompressed digital audio via Bluetooth, while Auracast enables multiple compatible headphones or speakers to share music wirelessly, with no pairing required.
Description
Integrated Amplifier with Bluetooth
and Auracast

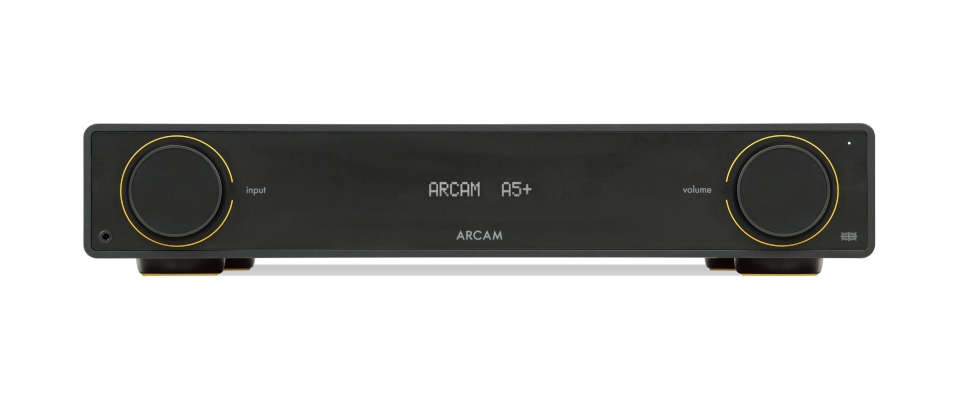

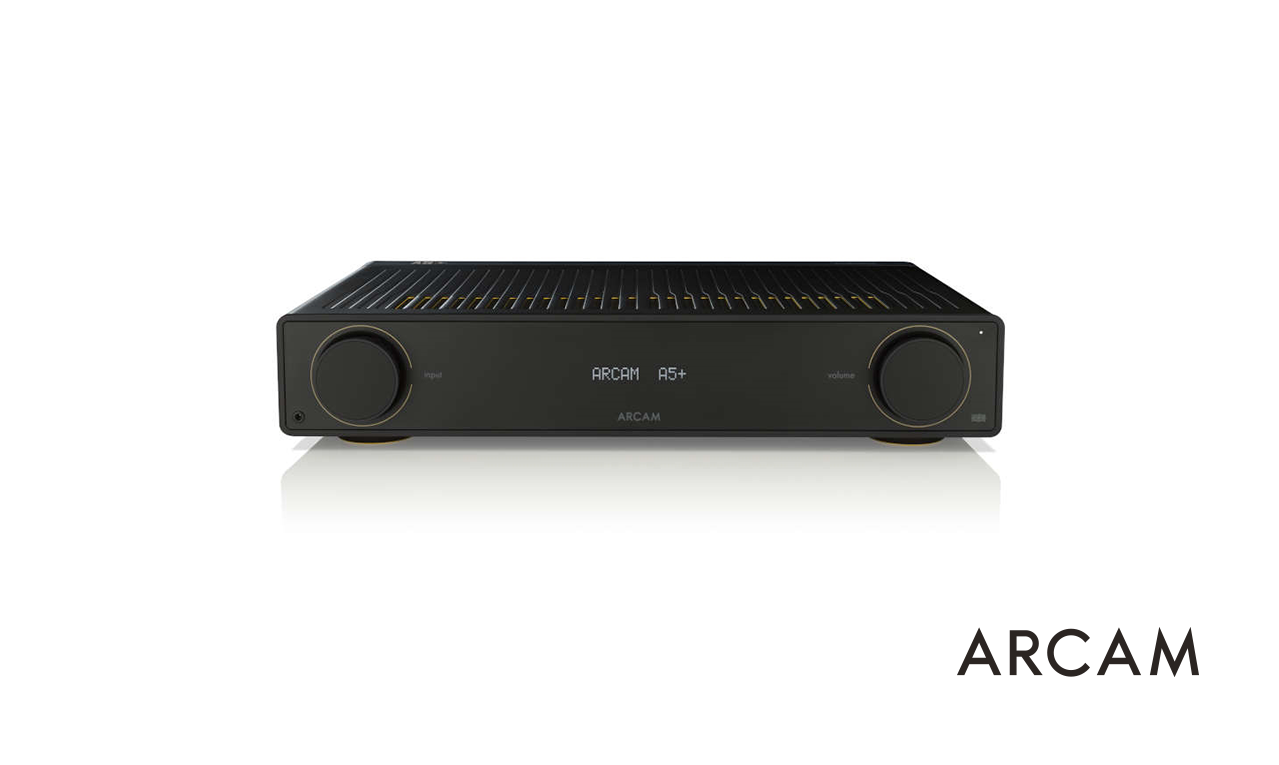

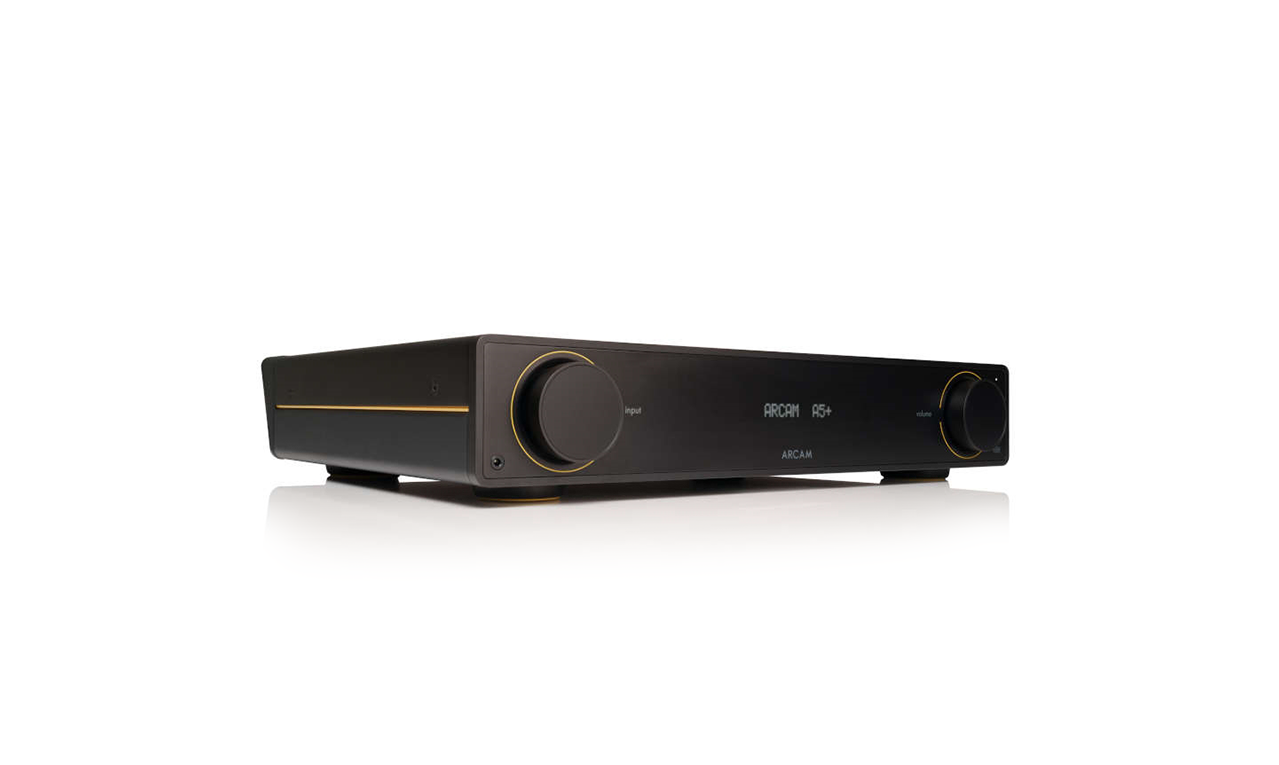

The ARCAM A5+ is a powerhouse with brilliant sound quality.
The “A” in ARCAM stands for amplification, where our expertise lies. The A5+ is the latest in nearly 50 years of amplifier design and manufacture, dating back to our first product in 1976 —the A&R Cambridge A60 amplifier. Since the launch of the award-winning ARCAM Radia A5, we haven’t rested. Our engineering team pushed further to create the ARCAM A5+, an even better sounding and more versatile integrated amplifier.
The A5+ features an enhanced power supply design and cutting-edge wireless capabilities straight out of the box. Snapdragon Sound delivers uncompressed digital audio via Bluetooth, while Auracast enables multiple compatible headphones or speakers to share music wirelessly, with no pairing required.
With a wide array of digital and analogue inputs, including a meticulously tuned phono stage, the A5+ ensures impeccable sound quality for everything from vinyl to streaming.
The "A" in ARCAM stands for Amplification - this is our core competence.
- ARCAM Class AB Amplification – provides brilliant musicality
- 2x 50W Power Output – powers loudspeakers with ease
- Wireless audio with Snapdragon Sound and Auracast built-in – for the best sound with the most convenience
- Wired or Wireless Headphones – connect your headphones for quiet listening with, or without wires
- Fine-tuned phono stage – ensures your records sound as detailed and engaging as possible
- Plastic Free Packaging – for easy disposal of natural materials
Technical Specs
Continuous power output
(0.5% THD), per channel
| – 2 channels driven, 20Hz – 20kHz, 8Ω 50W |
| – 2 channels driven, 1kHz, 4Ω 75W |
| – Harmonic distortion, 80% power, 8Ω at 1kHz 0.003% |
Analogue Inputs
| – Number of inputs 3 (RCA pairs) |
| – Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB |
| – Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB |
Phono (MM) Input
| – Input impedance 47kΩ + 100pF |
| – Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB |
Headphone Output
| – Maximum output level (RMS) into 32Ω/300Ω 2.5V/5V |
| – Load range 16Ω – 2kΩ |
Digital Inputs
| – Supported Sample Rates (kHz) 192, 176.4, 96, 88.2, 48, 44.1 |
| – Bit depths (bit) 24, 16 |
| – Frequency response (fi lter 1) 20Hz—20kHz ± 0.2dB |
| – Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB |
Wireless Specifications
| – Bluetooth Version – 5.4; A2DP Sink/Source |
| – AVRCP, BLE, SBC, AAC, aptX, aptX HD and aptX Lossless, LE Audio, Auracast |
| – Bluetooth Transmitter Frequency and Power – 2,400 MHz to 2,483.5 MHz: <20dBm |
General
| Mains voltage | 100V or 110–120V or 220–240V, 50–60Hz |
| Power consumption (maximum) | 350W |
| Power consumption (standby) | <0.5W |
| Dimensions W x D (including speaker terminals) x H (including feet) | 431 x 344 x 83mm |
| Weight (net) | 8 kg |
| Weight (packed) | 11kg |
Supplied accessories
| – Mains lead(s) | |
| – Remote control with 2 x AAA batteries | |
| – Quick Start Guide | |
| – Important Safety Instructions |
Additional information
| Brand | Arcam |
|---|---|
| Product Type | Stereo Amplifier |
