5.1 Ceiling Speaker Package – Monitor Audio CS140S + MRW10 Sub

999

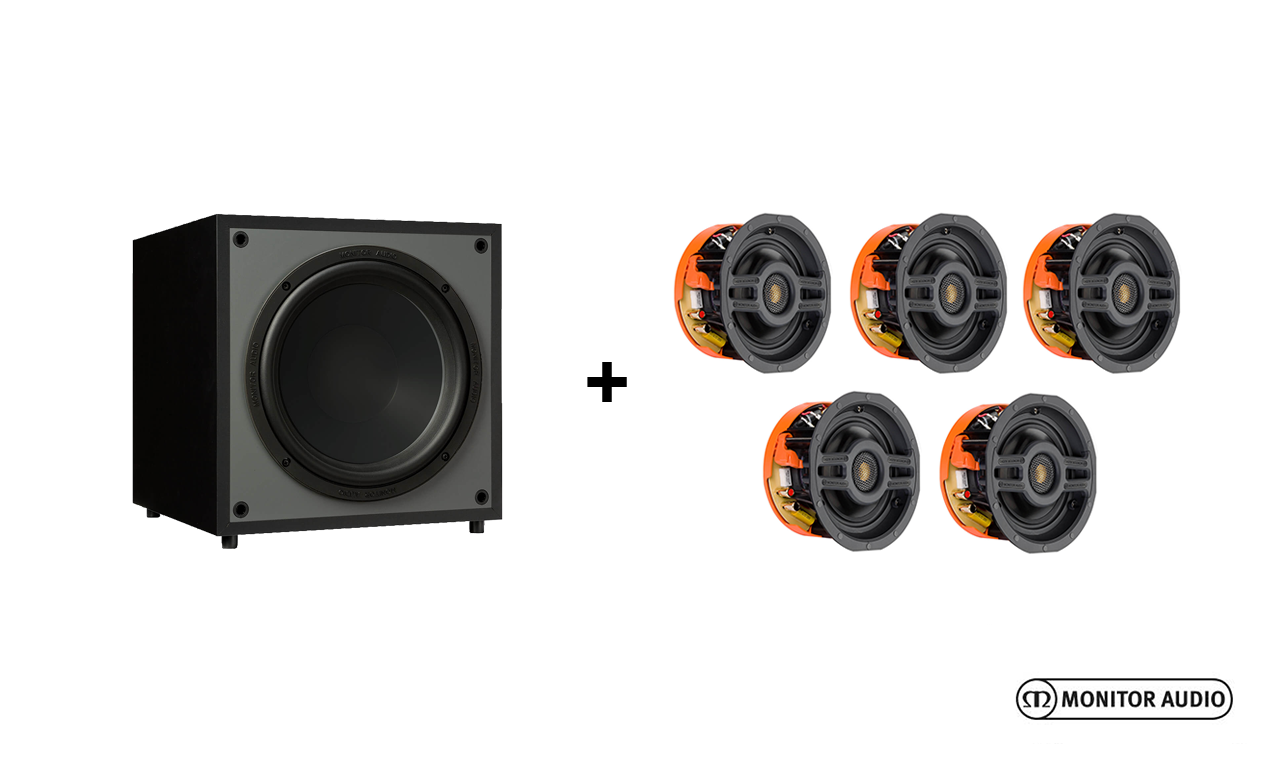

The Monitor MRW-10 sub, combined with five Monitor Audio CS140S ceiling speakers, delivers powerful, detailed sound with discreet aesthetics. The subwoofer delivers a deep bass down to below 30Hz, while the ceiling speakers use a pivoting C-CAM Gold Dome tweeter to direct sound to the listener.

Description

CS140

The CS140 in-ceiling model features a proprietary 4-inch MMP II cone and a pivoting version of our acclaimed C-CAM Gold Dome tweeter.

Engineered for excellent detail resolution and complete with square grilles, the CS140S will deliver great sound with super-discreet aesthetics.

Mounting Depth –  99mm

round grille option available by special order.

Monitor MRW-10
Subwoofer

The Monitor MRW-10’s rigid cabinet is made from 18 mm thick MDF and accommodates a 10″ long-throw MMP II bass driver and a rear port that allows optimal output from the powerful onboard 100 W class D power amplifier.

The Monitor MRW-10 boasts an array of features dedicated to optimizing a home theatre system. There are three pre-set EQ mode settings (Music, Movie, Impact) to offer a level of adjustment for all rooms and tastes, and the controls use an advanced DSP based architecture to provide the ultimate in audio flexibility

Monitor MRW-10 Key Features

Key Features

  • 10″ MMP II long-throw subwoofer driver
  • Rigid MDF cabinet with rear porting
  • Powerful 100 W Class D power amplifier – high efficiency and punchy bass delivery
  • Switch-mode power supply, designed to deliver high continuous rating and provides the instantaneous delivery of high current when required
  • DSP processing with all control features and crossover performed in the digital domain
  • Three pre-set EQ mode settings. Music / Movie / Impact
  • 12 V trigger – provides switching control from AV amp, processor, or home automation control system
  • 18 mm thick MDF construction

Specifications

CS140

Frequency Response
75 Hz – 30 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
85 dB

Maximum SPL
102.8 dBA

Power Handling (RMS)
50 W

Recommended Amplifier Requirements
10 – 50 W

Drive Unit Complement
1 x 4″ MMP II cone bass driver.
1 x 1″ (25 mm) C-CAM pivoting Gold Dome tweeter

Acoustic Configuration
2-way

Overall Dimensions (Including Grille (H x W))
With Optional Round Grille: 180.2 mm (71/8“)
With Included Square: 176.7 x 176.7 mm (615/16 x 615/16“)

Mounting Depth
99 mm (37/8“)

Cut-Out Hole Diameter
149 mm (57/8“)

Fixing Type
3 position Tri-Grip dog fixings

Connection
Gold plated ‘push’ type terminals

Grille Attachment
Magnetic

Construction Material

Mineral filled ABS, RoHS compliant

Weight
1.18 kg (2 lb 10 oz)

Optional Pre-Construction Bracket
CB4 Pre-Construction Bracket (Pink)

Optional Back Box
CCBOX-R

Sold As
Single Unit

Monitor MRW-10

System Format
Rear ported bass reflex cabinet

Lower Frequency Limit
30 Hz (-6 dB)

Upper-Frequency Limit
Variable 50 – 120 Hz @ 24 dB/Octave

Amplifier Output
100 W RMS

Amplifier Classification
Class D with Switch mode PSU

Bass EQ Profiles
Music / Movie / Impact

Phase Control
0 – 180°

Auto-Sensing
>3.5 mV

Input Level Requirements
Standby after approximately 15 minutes if no signal is sensed

Drive Unit Complement
1 x 10″ MMP II long-throw driver

Input Impedance
>20 K ohms

Mains Input Voltage
110 – 120 Vac – 50 – 60 Hz
220 – 240 Vac – 50 – 60 Hz. Selectable

Fuse Specification
110 – 120 VAC – T4AL/250VAC
220 – 240 VAC – T4AL/250VAC

Connection
2 x Stereo RCA, 1 x LFE RCA connection
12 V trigger (3.5 mm mono mini-jack)

External Dimensions (Including Grille and Feet (H x W x D))
336 x 320 x 350.6 mm (131/4 x 125/8 x 1313/16“)

Standby Power Consumption
<0.5 W standby

Weight
10.54 kg (23 lb 4 oz)

Sold As
Single Unit

Full Monitor Series Brochure​

Additional information

Brand

Monitor Audio

System Configuration

5.1 Surround

Colour

Black
