2 channel power amplifier – Monitor Audio IA800-2C

2,240

Call for availability

Up to 800 watts per channel at 4 Ohm or 500 watts per channel at 8 Ohm, It will directly drive 70 V line speakers without a line matching transformer. Controllable via web application.

Call for availability

Description

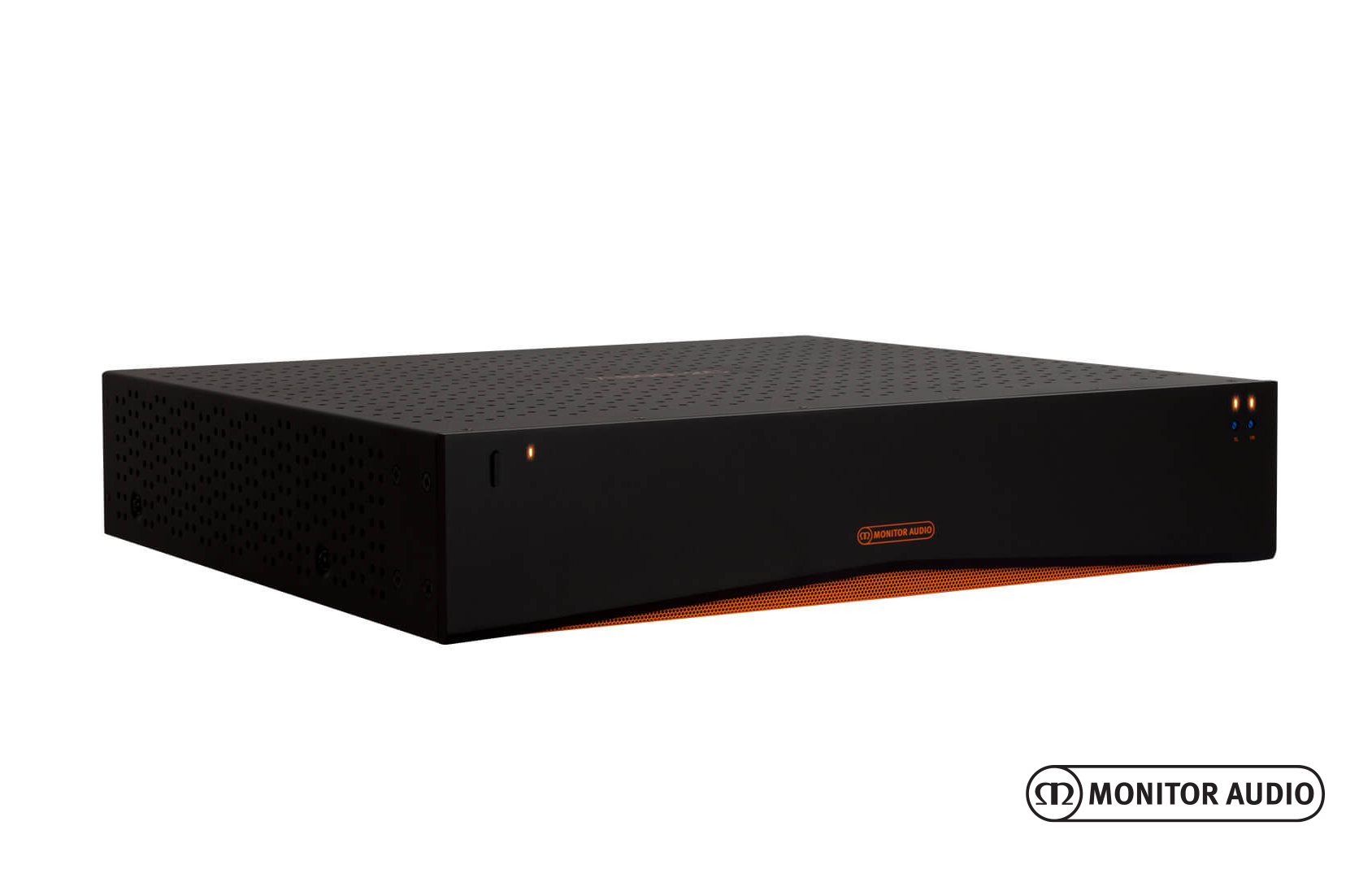

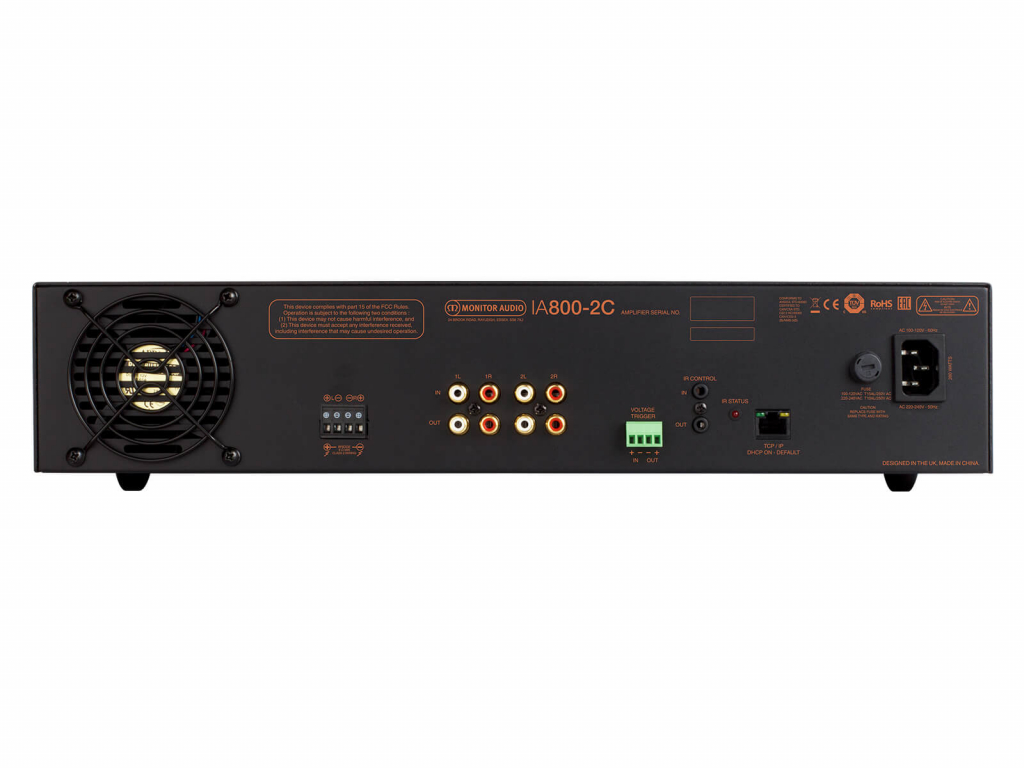

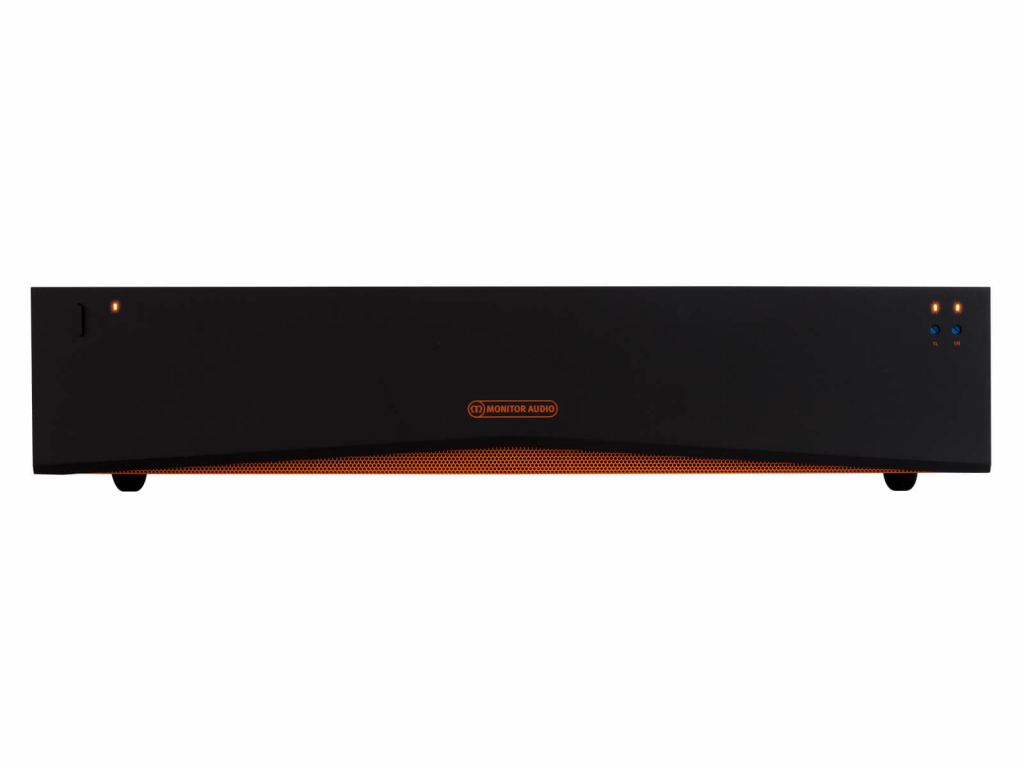

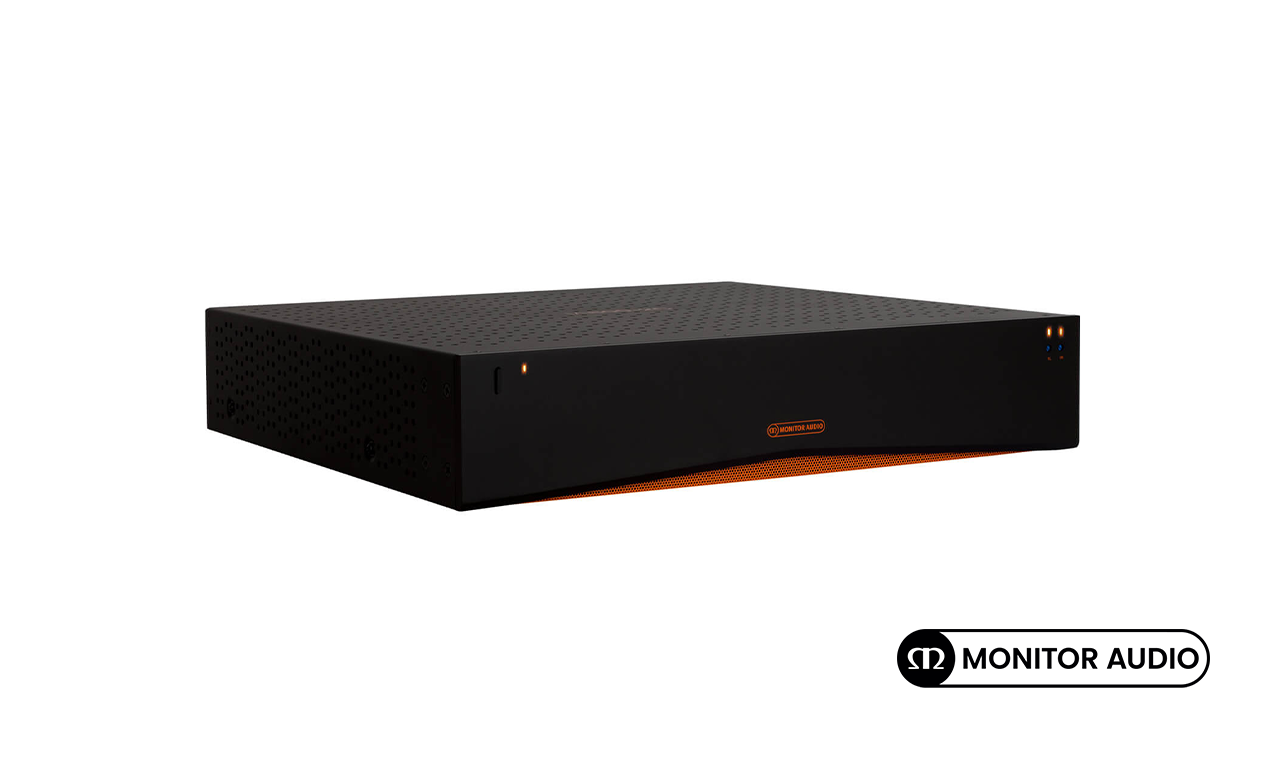

Monitor Audio IA800-2C Power Amplifier

The IA800-2C is part of our Connect Amplifiers division, bringing our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

Fluently delivering up to 800 watts per channel, this two-channel powerhouse can directly drive 70 V line speakers without a line matching transformer. Each channel has a volume adjustment on the front panel and the 2U high case universally fit into most racks whilst delivering 93% energy efficiency. And even though its likely to live its live on the rack, our design team have produced an especially handsome Installation Amplifier. Ready and waiting for any project.

Technical Specifications

‘Connect’ IP Control Yes

Channel Number 2 (1 Stereo Pair)

Power (W / Channel) | 4 ohms 800 W

Power (W / Channel) | 8 ohms 500 W

Power (W / Channel) | Bridge (8 ohms) 2000 W (1CH)

Power (W / Channel) | 70V 800 W

Input Impedance 20 K ohms

Output Impedance (Loop RCA) 600 ohms

Input Sensitivity 100 mV / 1 W, 2200 mV – Full power

Maximum Input Voltage 2.9 V

Signal to Noise (SN:R) -100 dB (20 Hz – 20 kHz)

Frequency Response 5 Hz – 50 kHz

Total Harmonic Distortion THD + N@1 KHz 0.03%

Rack Height 2U

Dimensions (Excluding Feet (H x W x D)) 86.8 x 438 x 438 mm (37/16 x 171/4 x 1613/16″)

Dimensions (Including Feet (H x W x D)) 97.2 x 438 x 438 mm (313/16 x 171/4 x 1613/16″)

Width (including rack brackets) 482 mm (19″)

IP Communication TCP/IP (RJ-45 10/100 Base T)

Mains Operating Voltage 100 –120 V @ 60 Hz 220 – 240 V @ 50 Hz

Fuse Rating 5 A (T5AL ~ 250VAC)

Standby Power Consumption <0.5 W (green mode)

Networked Standby Power Consumption <2 W

Weight 9.2 kg (20 lb 4 oz)

Sold As Single Unit

Additional information

Brand

Monitor Audio

Product Type

Power Amplifier

Amplifier Connectivity

Multiroom, Network Port, 2 Channel
