The IA150-2 installation amplifier delivers 150 watts per channel at 4 ohms, powering one stereo pair. Part of Monitor Audio’s cutting-edge Installation Amplifiers range, it offers both Line Inputs and Loop Outputs.
2 channel power amplifier – Monitor Audio IA150-2
€1,030
Call for availability
Call for availability
Description
Monitor Audio IA150-2 Power Amplifier
The IA150-2 installation amplifier delivers 150 watts per channel at 4 ohms, powering one stereo pair. Part of Monitor Audio’s cutting-edge Installation Amplifiers range, it offers both Line Inputs and Loop Outputs.
Monitor Audio Installation Amplifiers are built to do more and use less space. Our distribution amplifiers offer full connectivity with simple wired voltage trigger or signal sense.

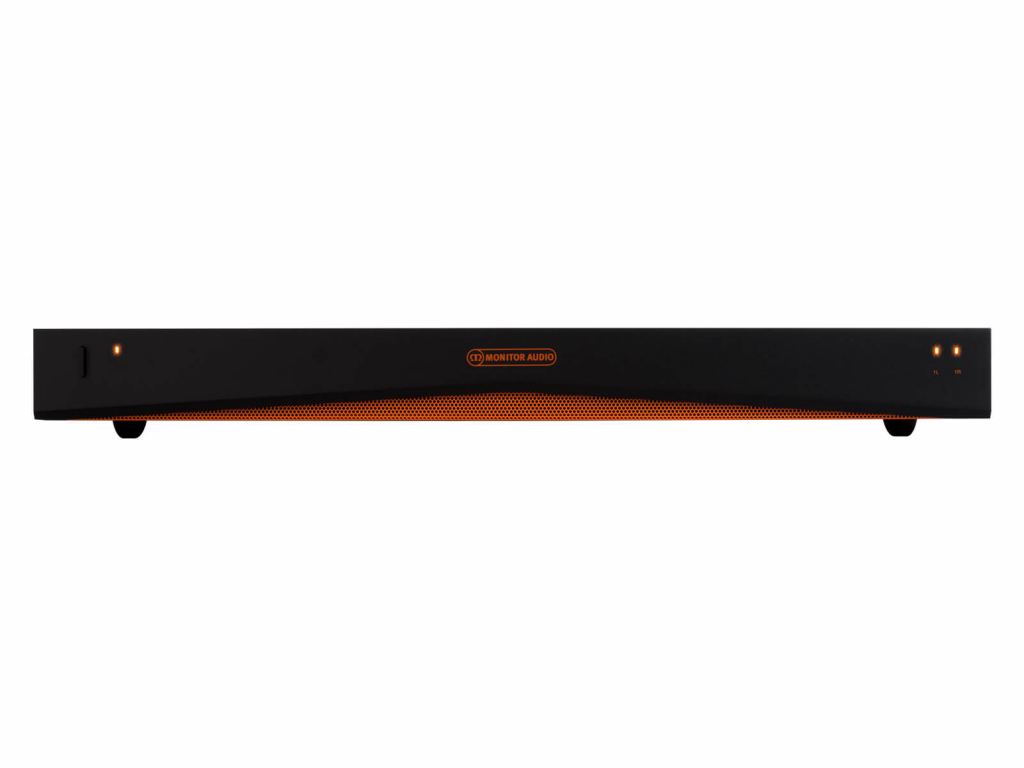

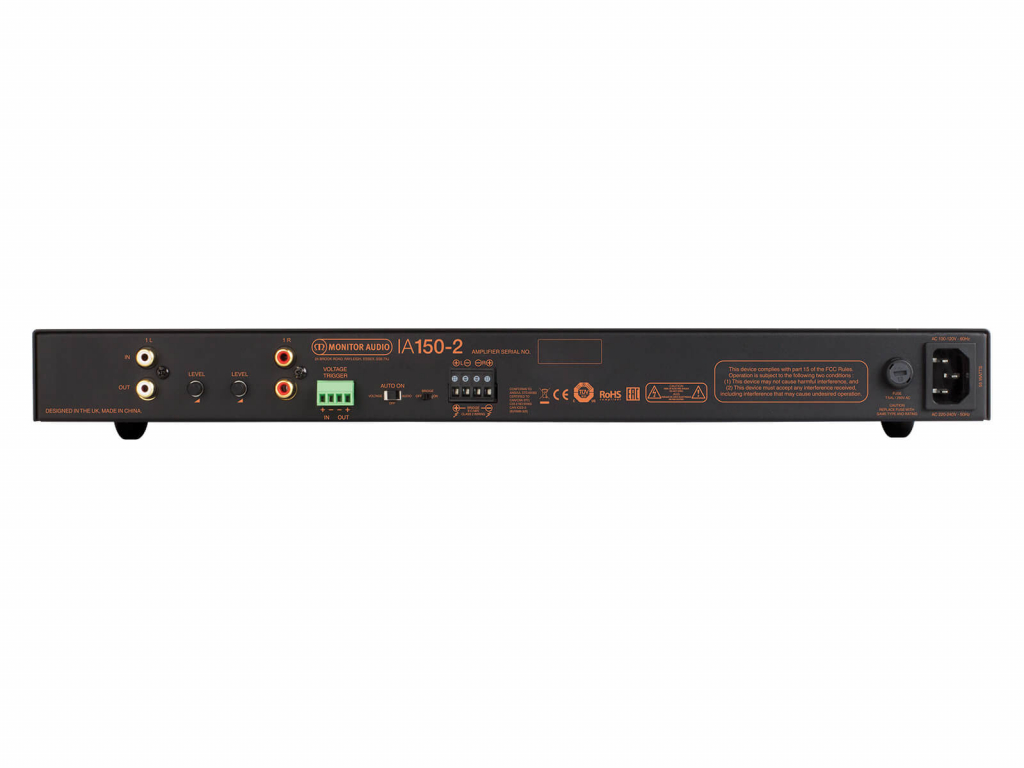

The IA150-2 powers a stereo pair, with rear panel-located volume adjustment for each channel. Just 42 mm high, 438 mm wide, and 427 mm deep, the handsome 1U sized case houses world renowned Hypex amplifiers, selected by us to guarantee reliability and the great sound quality the world has come to expect from Monitor Audio.
Technical Specifications
‘Connect’ IP Control N/A
Channel Number 2 (1 Stereo Pair)
Power (W / Channel) | 4 ohms 150 W
Power (W / Channel) | 8 ohms 100 W
Power (W / Channel) | Bridge (8 ohms) 320 W (1CH)
Power (W / Channel) | 70V N/A
Input Impedance 20 K ohms
Output Impedance (Loop RCA) 600 ohms
Input Sensitivity 100 mV / 1 W, 1000 mV – Full power
Maximum Input Voltage 2.9 V
Signal to Noise (SN:R) -100 dB (20 Hz – 20 kHz)
Frequency Response 5 Hz – 50 kHz
Total Harmonic Distortion THD + N@1 KHz 0.03%
Rack Height 1U
Dimensions (Excluding Feet (H x W x D)) 42.4 x 438 x 427 mm (111/16 x 171/4 x 1613/16″)
Dimensions (Including Feet (H x W x D)) 52.8 x 438 x 427 mm (21/16 x 171/4 x 1613/16″)
Width (including rack brackets) 482 mm (19″)
IP Communication N/A
Mains Operating Voltage 100 –120 V @ 60 Hz 220 – 240 V @ 50 Hz
Fuse Rating 5 A (T5AL ~ 250VAC)
Standby Power Consumption <0.5 W (green mode)
Networked Standby Power Consumption N/A
Weight 5.29 kg (11 lb 10 oz)
Sold As Single Unit
Additional information
| Brand | Monitor Audio |
|---|---|
| Product Type | Multiroom Amplifier, Power Amplifier |
| Amplifier Connectivity | Multiroom, 2 Channel |
