Yamaha RS-202D and Monitor Audio Monitor 200

879

In stock

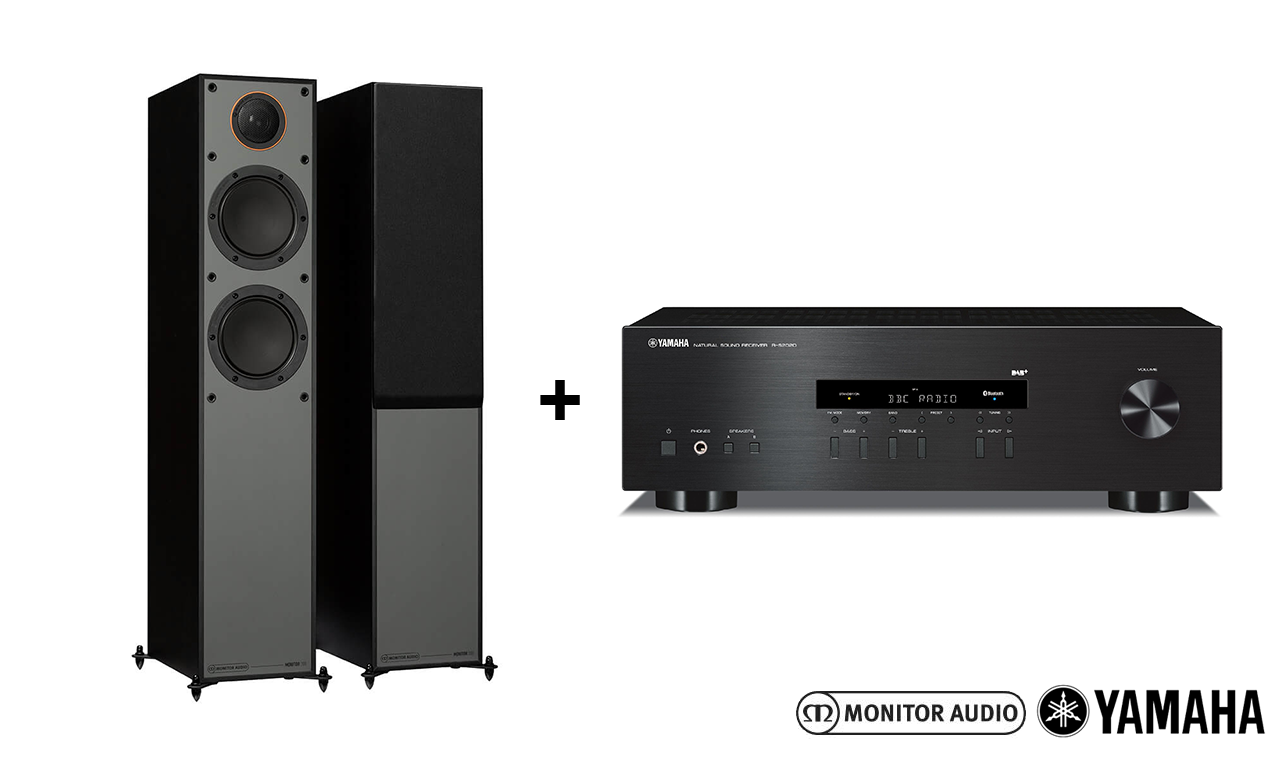

Yamaha R-S202D, created by rich experience and tradition provides Bluetooth® compatibility and a DAB/DAB+ tuner combined with the Monitor Audio Monitor 200 with two 51/2″ MMP II drivers to provide powerful bass lines.

In stock

Description

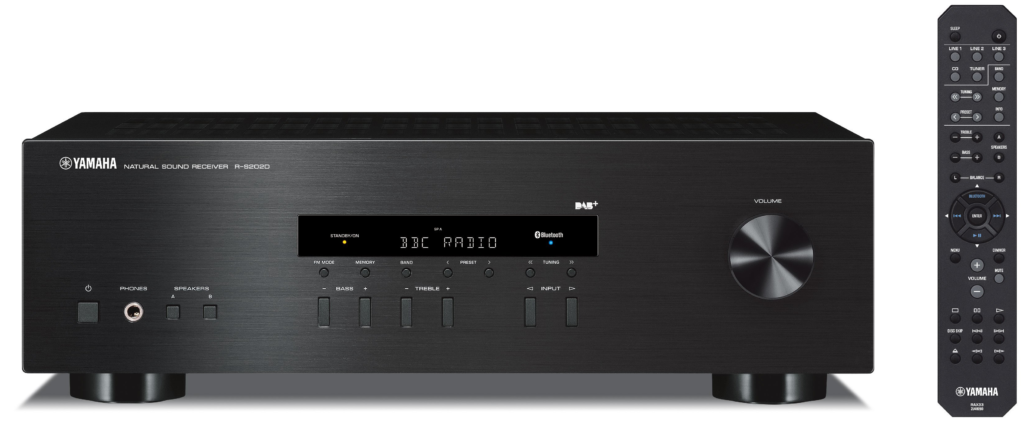

YAMAHA R-S202D

Hi-Fi Receiver featuring the outstanding sound quality and clean design that Yamaha is famous for. Provides Bluetooth® compatibility and a DAB/DAB+ tuner for enjoying digital broadcasts.

  • Yamaha high sound quality, created by rich experience and tradition, and high technological expertise
  • Bluetooth® compatible for wireless music streaming
  • DAB/DAB+ and FM tuners both have 40 station preset memories
  • Simple and sophisticated design
  • Speaker selector and speaker terminals for two systems
  • Auto power standby function
  • Simple design remote control
  • Headphone terminal

Yamaha High Sound Quality, Created by Rich Experience and Tradition, and High Technological Expertise

Yamaha, with a long history of 125 years as a musical instrument maker, also has a high reputation for HiFi components. The R-S202D was created by taking advantage of this rich experience and high technological expertise. Based on the concept of “Natural Sound”, for reproducing all music as it really sounds, and built with scrupulous care from circuit design to basic sound production, even though an entry model it reproduces high sound quality and musically rich sound.

100 W x 2 High Output Power* and High Sound Quality Circuit Design

The R-S202D, with 100 W* x 2 high drive power that’s above its class, has a high sound quality design that minimises the length of signal routes and optimises the circuit layout. Positioning the power transformer near the power amp circuit reduces power loss while improving peak power supply capacity to enable high volume output. The signal ground and power supply ground are connected at one point, eliminating mutual interference to achieve a higher S/N ratio. The result is sound filled with clarity and a feeling of openness.

* 8 ohms, 40 Hz – 20 kHz, 0.2% THD

100 W x 2 High Output Power* and High Sound Quality Circuit Design

The R-S202D, with 100 W* x 2 high drive power that’s above its class, has a high sound quality design that minimises the length of signal routes and optimises the circuit layout. Positioning the power transformer near the power amp circuit reduces power loss while improving peak power supply capacity to enable high volume output. The signal ground and power supply ground are connected at one point, eliminating mutual interference to achieve a higher S/N ratio. The result is sound filled with clarity and a feeling of openness.

* 8 ohms, 40 Hz – 20 kHz, 0.2% THD

Enjoy Digital Radio from DAB/DAB+ Tuner

DAB and DAB+ are Digital Audio Broadcasting formats that offer a large selection of radio stations with high sound quality. Other benefits include automatic tuning to available stations with a list to choose from and a display of information such as station names. You can preset 40 DAB/DAB+ stations.

Simple and Sophisticated Design

The R-S202D inherits the simple and sophisticated design style that Yamaha HiFi audio is famous for. With an elegant hairline finish, it harmonises beautifully with other HiFi audio equipment. The operating buttons and volume knobs also show our commitment to simplicity and ease of use.

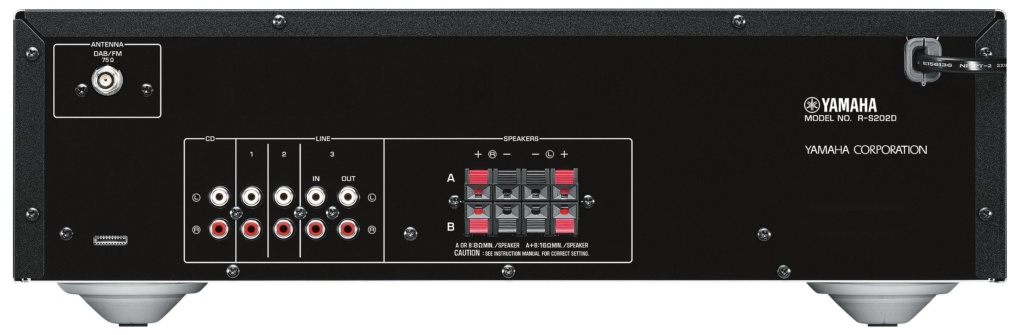

Speaker Selector and Speaker Terminals for Two Systems

Equipped with speaker terminals for two systems, this receiver lets you can connect two sets of speakers. The speaker selector makes it easy to switch between speaker outputs, allowing you to hear the sound from one speaker system (A or B) or from both (A+B).

Power Saving

A power management function automatically cuts off the power (switches to standby mode) when the receiver has not been operated for a long time. It can be set to 2, 4, 8, or 12 hours, or off. In addition, power consumption during standby is only 0.5 W, achieving good energy-saving performance.

Other Notable Features

  • Simple design remote control
  • Headphone terminal

Monitor 200

The slim Monitor 200s are the smallest floorstander in the range and are designed to deliver a stunning sound in small to medium-sized rooms. They have all the precision of a two-way speaker, with the addition of an extra bass driver for scale and power.

Two 51/2” MMP II drivers combine to provide powerful, punchy bass lines. The mid-driver is crossed over to the black C-CAM tweeter higher up in frequency, resulting in perfect phase.

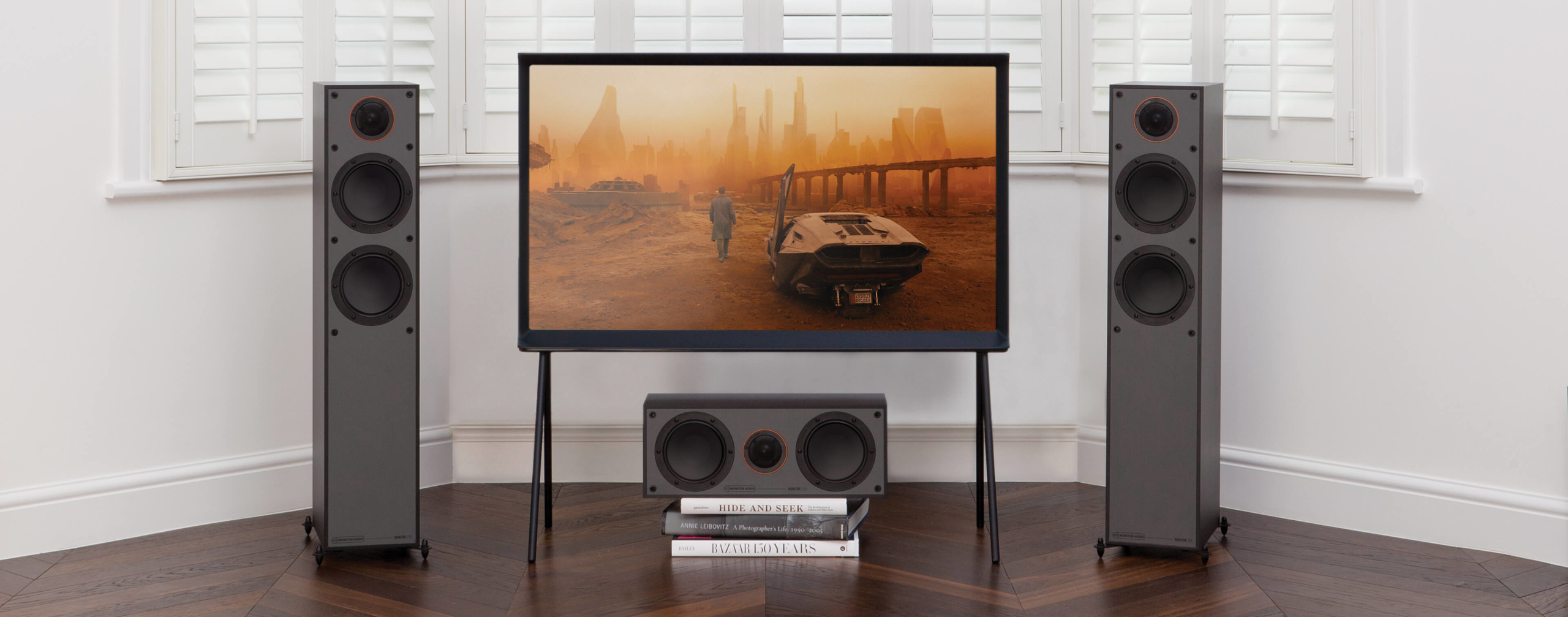

The Monitor 200s are equipped with outrigger feet that give a sleeker appearance, take up less floor space and improve the stability of the speaker. With the addition of Monitor 50, Monitor C150 and MRW-10 subwoofer, it makes up the Monitor 200AV surround sound speaker system for an immersive home cinema.

Monitor Key Features

  • Classic Monitor Audio speaker design with a playful twist
  • MMP II (Metal Matrix Polymer) driver cones
  • High overall impedance (8 ohms) – easy to drive with lower power amplifiers
  • Black C-CAM (Ceramic-Coated Aluminium Magnesium) dome tweeter – derived from Monitor Audio’s award-winning Bronze series
  • Creative use of 51/2” and 61/2” drivers have delivered a compact bookshelf, floorstand model together with a larger bookshelf and floorstander to complement larger rooms and higher power applications
  • HiVe II (High Velocity, Low Noise Reflex Port) technology – for improved transient response and tighter bass, due to smoother airflow

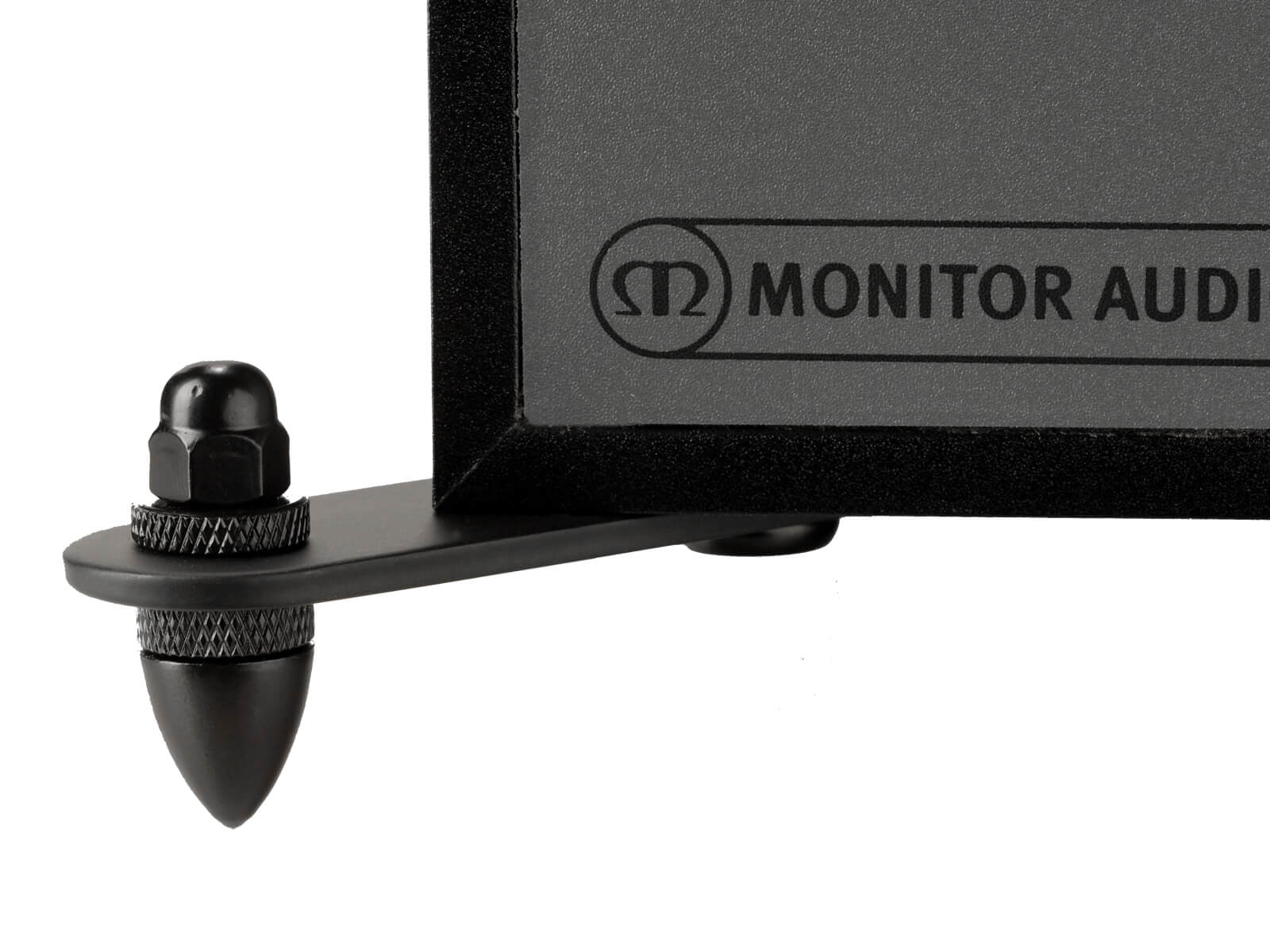

  • Outrigger feet on floorstanding models deliver a sleeker appearance, takes up less floor space, and improves stability

Specifications

Monitor 200
System Format

21/2 Way

Frequency Response
40 Hz – 30 kHz

Sensitivity (1W@1M)
88 dB

Nominal Impedance
8 ohms

Maximum SPL
112 dBA

Power Handling (RMS)
120 W

Recommended Amplifier Requirements
30 – 120 W

Cabinet Design
Dual chamber, rear-ported bass reflex with HiVe II port technology

Drive Unit Complement
1 x 51/2” MMP II bass
1 x 51/2” MMP II bass mid-range
1 x 25 mm black C-CAM tweeter

Crossover Frequency
LF: 650 Hz
MF/HF: 2.2 kHz

External Dimensions (Including Grille (H x W x D))
850 x 174 x 299.3 mm (337/16 x 67/8 x 1113/16“)

External Dimensions (Including Grille and Feet (H x W x D))
873 x 215.4 x 309.8 mm (343/8 x 81/2 x 123/16“)

Weight
10.82 kg (23 lb 12 oz)

Sold As
Pair

R-S202D
Receiver / Integrated Amplifier
Network sectionBluetoothYes (SBC / AAC)
Minimum RMS Output Power (8 ohms, 40Hz~20kHz) 100 W + 100 W (0.2% THD)
Specifications
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) 115 W + 115 W
High Dynamic Power/Channel (8/6/4/2 ohms) 125 W / 150 W / 165 W / 180 W
Frequency Response 20Hz-20kHz (0+/-0.5db), 10Hz-100kHz (0+/-3.0db)
Total Harmonic Distortion (8 ohms, 20 Hz-20 kHz) 0.025% (Phono (MM) to REC Out), 0.2% (CD to SP Out)
Signal-to-Noise Ratio (CD) 100 dB (S: 500 mV)
Input Sensitivity (CD) 500 mV / 47 k-ohms
FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono) 3 μV (20.8 dBf)
FM Signal-to-Noise Ratio (Mono/Stereo) 72 dB / 70 dB
Standby Power Consumption 0.5 W
Dimensions (W x H x D) 435 x 141 x 322 mm; 17-1/8” x 5-1/2” x 12-5/8”
Weight 6.7 kg; 14.8 lbs.

Additional information

Brand

Yamaha / Monitor Audio

Colour

Black

Product Type

Stereo Amplifier

Amplifier Connectivity

Bluetooth
