Six Channel amplifier – 3 stereo zones – Xantech PA635X

399

In stock

Selectable Channel Modes – 35w x 6 or 80w x 3 or 2 x 35w + 1 x 80w, (at 8 ohms, but can drive 4 ohms speakers too for up to).Adjustable input Sensitivity, Heavy duty, Rack Mountable.

In stock

Description

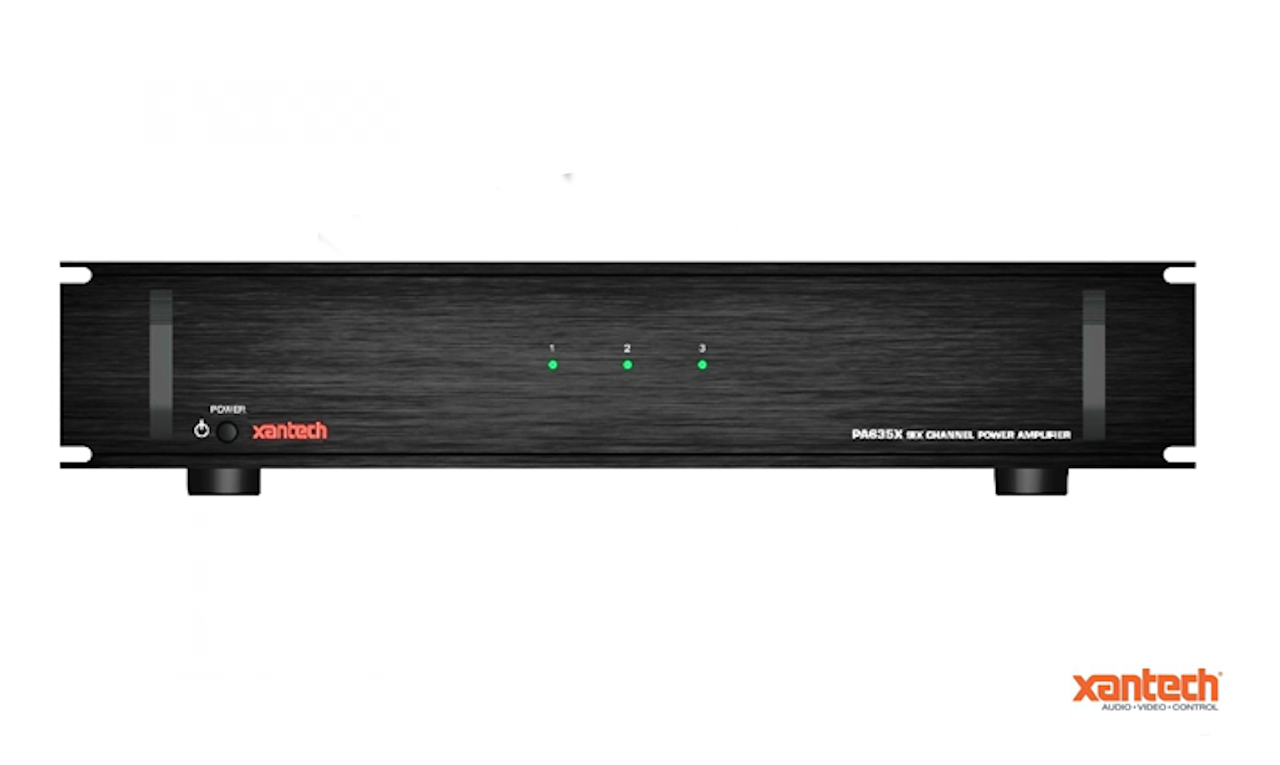

XANTECH PA635X

Six Channel amplifier 35W per channel – 3 stereo zones

35 Watts per channel (Bridgeable)

Selectable Channel Modes

Adjustable input Sensitivity

DC Voltage Controlled (main power)

Low Impedance Capability

Auto Protection

Rack Mountable

Selectable Channel Modes

Mode 1  3 stereo, 35 Watts/ch

Mode 2  1 stereo, 35 Watts/ch and 1 stereo, 80 Watts/ch bridged

Mode 3  3 mono, 80 Watts/ch bridged

Front panel status LED  Yes

IR controlled level, balance & mute for each channel. pair?  No

Common input buss individually selectable for each stereo amp?  No

On/Off control of each stereo amp  Main power only

Low Impedance Capability  Each amplifier is 4-ohm rated. This means two pair of 8-ohm speakers can be driven safely in each zone.

Auto Protection  Each channel is protected separately if a short or very low impedance is detected at the speaker terminals. Operation is                                           restored after the short is removed.

Rack Mountable  2 x 19” rack spaces

Power Output  Rated continuous power, each channel 8 ohms 35 Watts. (all channels simultaneously driven, 20 Hz to 20kHz at rated THD,                                      8 ohms)100 Watts RMS

Short Term Continuous Power  Each channel: 8 ohms, 55 Watts (2 channels driven, 1 kHz, at rated THD) or 4 ohms, 80 Watts.

Bridged Power Output  8 ohms, 150 Watts (Short term continuous, one pair driven, 1 kHz, at rated output power)

THD Rated THD < 0.08%, Damping Factor: (@ 50Hz, 8 ohms, rated power) > 100, S/N Ratio: A-Weighted (ref. to rated power) > 96dB

Input Sensitvity 0.2V – 3.3V

Remote Trigger Voltage +5 +30VDC

Power Supply 120 VAC, 60Hz; 240 VAC, 50Hz (European version)

Dimensions 17” W x 15” D x 3.75” H (429mm x 94mm x 379mm)

Weight 22.3 lbs (10.1 kg)





Additional information

Brand

Xantech

Colour

Black

Amplifier Connectivity

Multiroom
