Full 18Gbps bandwidth HDMI 2.0 offers; 2160p@60Hz 4:4:4 and support for Dolby Vision™ included with a powerful built-in scaler, allowing users to simultaneously connect a mix of 4K and 1080p displays.
AUDIO & VIDEO

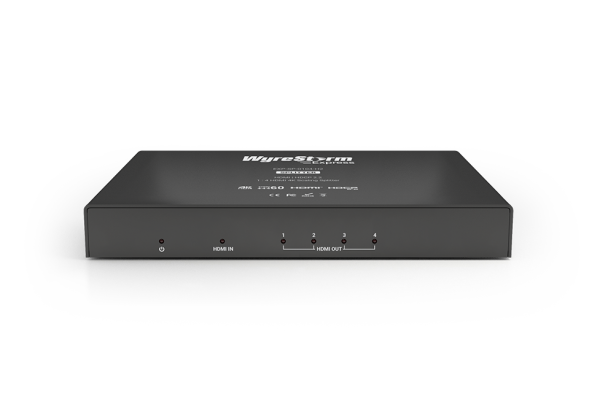

WyreStorm Essentials™ 4K60 1:4 Scaling HDMI Splitter
€138
In stock
In stock
Description
FEATURES
- Allows a transmission from a single HDMI audio/video device to be duplicated and simultaneously distributed to up to two HDMI display devices, such as TV, AVR, digital signage panel or digital projector
- Supports 4K@60Hz 10bit 4:2:0 | 4:4:4 and HDR@24Hz 10bit BT.2020
- Fully HDCP 2.2 compliant
- Data rates up to 18Gbps
- HDR and Dolby Vision support
- Each HDMI output supports scaling down to 1080p
- Automatic input cable equalization for signal regeneration
- DTS-X and Dolby Atmos™ supported
- Plug and play set up for easy installation – no set up/drivers/software required
- Compact, durable design for unobtrusive installation
SPECIFICATIONS
Audio and Video
|
Inputs 1x HDMI In 19-pin HDMI type A Outputs 4x HDMI Out 19-pin HDMI type A Audio Formats 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos Video Resolution (Max) 1920x1080p @60Hz 12bit Supported Standards DCI | RGB |HDR | HDR10 | Dolby Vision up 30Hz | HLG | BT.2020 Maximum Pixel Clock 600Mhz COMMUNICATION & CONTROL HDMI HDCP 2.2 | EDID | DVI-D supported with adapter (not included) POWER Power Supply 5V DC 1A Max Power Consumption 1.8W |
Additional information
| Brand | Wyrestorm |
|---|---|
| Product Type | HDMI Converters |
