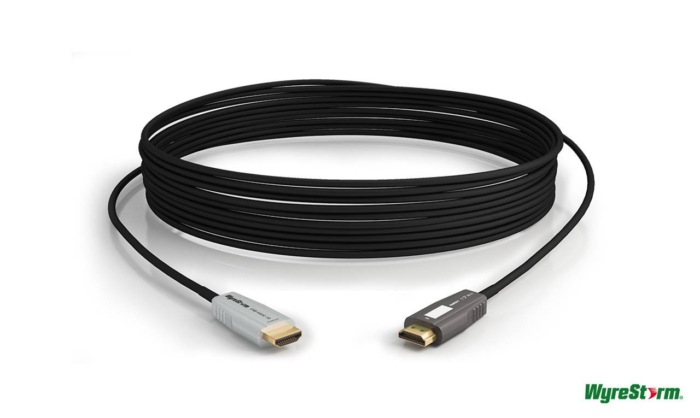

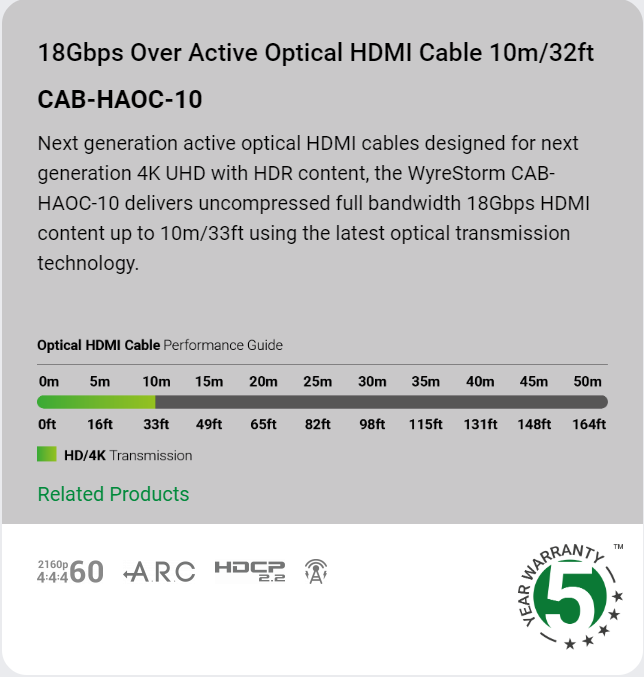

Uncompressed full bandwidth 18Gbps HDMI content up to 10m/33ft using the latest optical transmission technology.
Description
READY FOR ARC
Free the audio from your SmartTV with this cable. Although your TV does a great job of displaying VoD content from various outlets, when it comes to audio, it needs some help. The CAB-HAOC cables mean 5.1 Dolby or DTS audio can be sent from the screen to an AVR located up to 30m/98ft away.
COMPATIBLE WITH LATEST HDCP 2.2 CONTENT
Being essentially a long HDMI cable, source devices see this cable as such meaning that complicated electronics to handle encryption “handshaking” are not required meaning a cheaper extension solution.
UNCOMPRESSED 18GBPS OVER FIBER
The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can be sent, uncompressed with WyreStorm’s hybrid AOC cables using the latest optical transmission technology.
HIGH RESISTANCE TO EM OR RF INTERFERENCE
The only electronic signals are kept within the 1” HDMI head, meaning that electronically “noisy” environments such as industrial or retail premises previously were unsuitable for copper transmission. Using optical transmission over 4 fibre cores, the CAB-HAOC’s provide a much stronger, more reliable signal.
FEATURES
- Uncompressed transmission of 18Gbps HDMI content over optical transmission
- Available in 10m/32ft, 15m/49ft, 20m/65ft and 30m/98ft cable lengths
- Supports full bandwidth 4K/60 4:4:4 8-bit and 4K/60 4:2:2 HDR 12-bit
- Perfect for use in environments with excessive EM or RF interference
- Solid alloy head construction with 20mm/0.79” width perfect for feeding through conduit
- HDCP 2.2, ARC and CEC support
SPECIFICATIONS
Audio and Video
| Inputs | 1x HDMI: 19-pin type A Male |
| Outputs | 1x HDMI: 19-pin type A Male |
| Audio Formats | 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos |
| Output Video Type | AOC |
| Video Resolutions (Max) | 1920x1080p @60Hz 16bit 3840x2160p @60Hz 10/12bit HDR 4:2:0 4096x2160p @60Hz 8bit 4:4:4 4096x2160p @60Hz RGB |
| Encoding Data Rate | 18Gbps |
| End to End Latency | Zero |
| Supported Standards | DCI | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020 | BT.2100 |
| Maximum Pixel Clock | 600MHz |
Communication and Control
| HDMI | TMDS | HDCP | EDID | CEC | ARC |
| Audio Return Channel (ARC) | Supported |
Installation Restrictions
| Max Bend Radius | 6cm |
| Max Pull Tension | 15kg |
Power
| Power Supply | Passive 5V DC 1A | 4.5v~5.5v VCC |
| Max Power Consumption | 250mW |
Environmental
| Operating Temperature | 14°F ~ 122°F (-10°C ~ 50°C) | 10% ~ 90%, non-condensing |
| Storage Temperature | -4°F to ~ 140°F (-20°C ~ +60°C) | 10% ~ 90%, non-condensing |
| Maximum BTU | 0.85 BTU/hr |
Dimensions & Weight
| Rack Units/Wall Box | NA |
| Height | 9mm/0.36in |
| Width | 19.8mm/0.78in |
| Depth | 39.5mm/1.56in |
| Weight | NA |
| Cable Length (Connector to Connector) | 10m/33ft |
Regulatory
| Safety and Emission | CE | FCC | RoHS |
Additional information
| Brand | Wyrestorm |
|---|---|
| Product Type | HDMI Cables |
