2-speed Belt-drive, Bluetooth, MM Eq, Phono/Line Out, MM cartridge included, Aluminum platter, Anti-skating mechanism, High-density MDF cabinet.

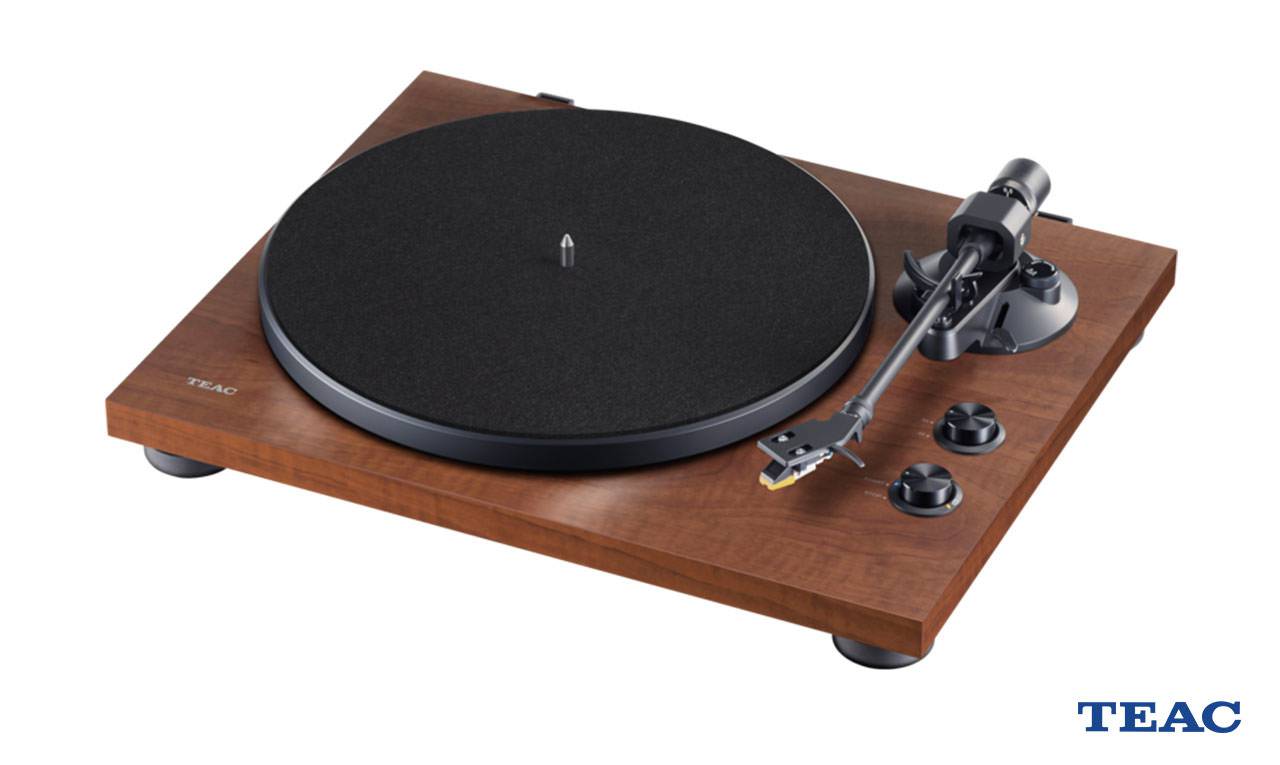

TEAC TN-280BT-A3 Turntable Walnut
TEAC 2-speed Analog Turntable with Phono EQ & Bluetooth
A wireless turntable for new way of enjoying vinyl records
A great-sounding turntable for the music enthusiastic who wants to enjoy vinyl records. It brings you a totally new way of listening to vinyl records with its Bluetooth capability. No extra cost for hi-fi components or complicated wiring is required. Only Bluetooth speakers or headphones are required to enjoy the world of vinyl records.
The TN-280BT also has a built-in Phono EQ amplifier that provides Line output, and allows you to connect to almost any sound system.
The belt-drive motor on the TN-280BT reduces vibration for a more accurate sound than direct-drive turntables for DJ, while an aluminum die-cast platter and anti-skating system provide a solid foundation for great-sounding playback. The high-performance, upgradable MM cartridge captures every detail on your record, and the static-balanced straight tone-arm ensures clear sound. It’s all housed in a beautiful case in black or walnut veneer.
- 2-speed Belt-drive turntable
- Built-in Bluetooth transmitter
- Built-in MM phono equalizer and Phono, Line, and Bluetooth outputs
- High-performance MM cartridge included (Made in Japan)
- Aluminum die-cast platter
- Anti-skating mechanism
- High-density MDF cabinet for better vibration and resonance
STATIC-BALANCED STRAIGHT TONE-ARM
A straight tone-arm is employed for high tracking accuracy. The anti-skating mechanism also ensures accurate tracking of vinyl records. A Japanese made MM-type cartridge is installed as standard.
Same system used in our top of the range models, the TN-280BT’s anti-skating mechanism ensures accurate tracking.
BUILT-IN BLUETOOTH TRANSMITTER
The TN-280BT delivers the sound wirelessly via built-in Bluetooth transmitter, in addition to conventional RCA output in analog Line or Phono format. The pairing button is located at the right-front side of the cabinet, and pairing indicator tells you the speakers/headphone is successfully connected.
AUTHENTIC 2-SPEED BELT-DRIVE TURNTABLE
The high inertia Aluminum die-cast platter is driven by a high torque DC motor for stable rotation for both 33-1/3 and 45 rpm. A soft felt mat further reduces vibration effectively. The high accuracy of the spindle is maintained by a polished Stainless steel Spindle and highly durable bronze spindle holder.
HIGH-DENSITY MDF CABINET WITH BEAUTIFUL FINISH
Unlike other with plastic chassis, the heavy MDF cabinet minimizes vibrations and resonance for clearer sound when you playback your vinyl collection.
BUILT-IN MM-TYPE CARTRIDGE PHONO EQ AMPLIFIER
Enjoy vinyl playback with any amplifier. The TN-280BT supports both Phono and Line outputs that allow you to enjoy vinyl records with or without phono equalizer.
Type Belt Drive
Motor DC Motor
Rotation Speeds 33-1/3, 45 rpm
Deviation of Speed +/-2%
Signal-to-Noise Ratio more than 67 dB (A-weighted)
60 dB (unweighted, 20kHz, LPF)
Material Aluminum Die-cast
Diameter 30 cm
Type Straight, Static-balanced
Effective Length 223 mm
Stylus Pressure Range 0 to 5 g
Compatible Cartridge 3.5 to 6.5 g
Anti-skating Adjustment Supported
Head-shell and Cartridge sections
Stylus Shape Elliptical
Mount Half inch
Frequency Response 20Hz to 20kHz
Channel Separation 20dB at 1kHz
Channel Balance 2.0dB
Tracking Force 1.5 to 2.5g
Vertical Tracking Angle 20 degrees
Output Impedance 47k ohms
Output Voltage 4.5 mV (+/-3dB)
Stylus Pressure 2.0 g (+/-0.5 g)
Cartridge Weight 5.7 g (+/- 0.5 g)
Head-shell Weight 10 g (including nuts, screws, and wires)
Analog Output section
Connectors RCA Pin Jack x 1 pair (Chrome-plated)
PHONO 4.5 mV (+/-3dB)
LINE 120 mV (-13dBV)
Range Approx. 10m
Supported Codec SBC
Operation Power AC Adapter
Input AC 100-240V, 50/60Hz
Output DC 12V 500mA
Power Consumption 1.5 Watts or less
Standby Power 0.5 Watts or less
Dimensions (W x H x D) 420 × 117× 356 mm / 16.5” x 4.6” x 14.0”
Weight (Net) 4.9 kg / 10.8 lbs.
Operating Temperature +5˚C to +35˚C
Felt Mat x 1
EP Adapter x 1
Counter Weight x 1
Head-shell x 1 (MM-type cartridge installed)
Turntable (Platter) x 1
Dust Cover x 1
Dust Cover Hinges x 2
RCA Audio Cable x 1
AC Adapter (GPE053A-V120050-Z) x 1 Owner’s Manual (including Warranty Card)
