Immerse in enveloping sound with Dolby Atmos® and DTS:X® audio formats. Or even without height or surround speakers, you can still enjoy virtual 3D surround effect with Dolby Atmos Height Virtualizer* and DTS Virtual:X. The AV receiver is compatible with Ultra HD, HDR10, HLG, and Dolby Vision™ with support for HDCP 2.3, so you can fully appreciate premium content such as 4K videos. Includes DAB

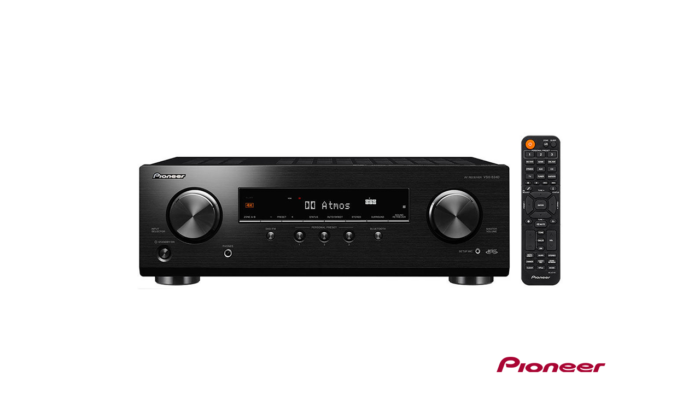

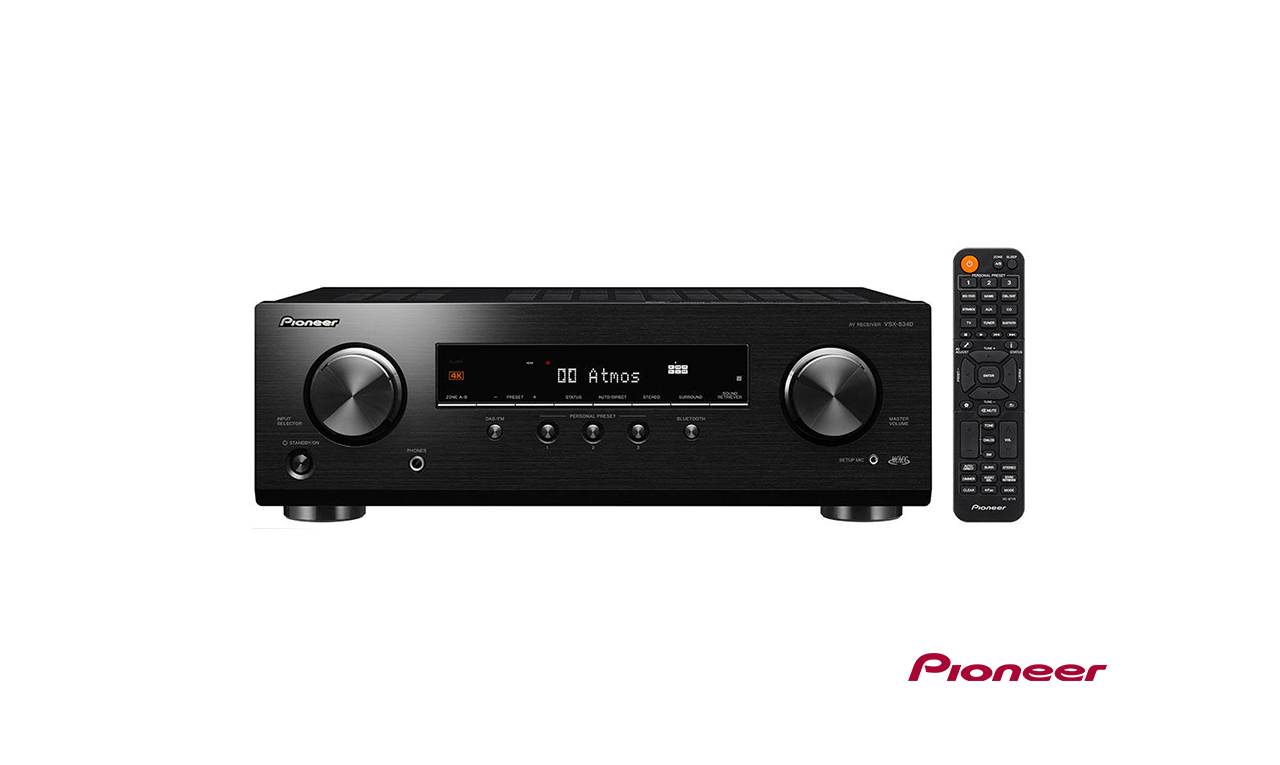

Pioneer VSX534D 5.2 Channel AV Receiver
Dolby Atmos®/Dolby Surround Upmixing
The VSX-534D is compatible with 3.1.2ch configuration of the latest cinema sound platform, Dolby Atmos®. You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers. Other audio codecs such as PCM and DSD can be upmixed using Dolby Surround for enjoying 3D surround sound.
DTS:X®/DTS Neural:X Upmixing
DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. Since DTS:X can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required. Experience an immersive soundscape with incredibly rich and life-like audio. Other audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for enjoying 3D surround sound.
Dolby Atmos Height Virtualization* & DTS Virtual:X
When playing any Dolby format, engaging the Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
*Function available with future firmware update
With DTS Virtual:X, you can enjoy a three-dimensional immersive sound similar to DTS:X, without the need of height or rear speakers. The technology supports 2 to 7.1.4-channel input source, for delivery on 2 to 5.1-channel speaker layout. DTS Virtual:X works with all DTS codecs, including DTS:X.
MCACC Auto Room Tuning
Create the optimum acoustic environment with Pioneer’s MCACC (Multi-Channel Acoustic Calibration System), developed with the expertise of professional recording studios. With the custom microphone, the system automatically compensates for differences in speaker size, level and distance, and equalises response.
When using Dolby Atmos-enabled speakers, high directivity sound from the unit reflects off the ceiling, while low directivity sound directly reaches the ears. The different pathways cause a phase shift, making the sound feel uncomfortable. The Reflex Optimizer which uses the Phase Control technology adjusts this shift, and improves the localisation of the sound image by aligning the frequencies with those of the floor speakers, creating the ideal reproduction environment.
Synchronised Sound with Phase Control
As an innovative solution for the phase lag between the subwoofer and the main channel speakers caused by the bass management filter, Phase Control compensates the delayed bass to improve sound synchronisation.
Next Generation Video Standard Ready
The VSX-534 supports pass-through for HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision signals. By connecting a compatible source device, you can enjoy these latest video standards on a compatible display. What’s more, all HDMI terminals support 4K (60p/4:4:4/24-bit), Wide Colour Gamut(BT.2020), and HDCP 2.3, so you will have no problem when upgrading to new devices, and can also enjoy premium content such as 4K videos with digital copy protection.
Zone B Output for Wireless Headphones
The VSX-534 is equipped with Zone B audio output terminals for expanding the Main Zone sound by connecting your wireless headphone dock. You can listen
to the sound playing in the living room via wireless headphones.
Built-in Bluetooth® Wireless Technology
Stream songs from compatible devices with the built-in Bluetooth® Wireless Technology (ver. 4.2 + LE). The VSX-534 features A2DP/AVRCP profiles, with support for SBC/AAC codecs. By pressing the Bluetooth button on the front panel, you can directly start up the BT function, even when the unit is in standby.
Just press the Personal Preset button on the front panel for three seconds, and your current settings such as volume level and listening mode can be saved. Up to three presets can be registered and easily called up from the front panel button or the remote control.
With this unique mid-range sound control feature, you can make independent volume adjustments to the range including dialogues in films, with the up/down key on the remote control.
On-Screen Information for Audio/Video Status
The screen display now shows detailed input and output information for the playing content. So you can see whether your video is being output by Dolby Vision, or if the movie is processing Dolby Atmos or DTS:X sound.
Amplification Type: Direct Energy
150 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
135 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)
Dolby Atmos®, Dolby Surround Upmixer
DTS:X®, DTS Neural:X® Upmixer
Dolby Atmos Height Virtualizer*
Dolby® TrueHD, Dolby Digital Plus
DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch)
Digital Quad-Core 32-bit DSP (Cirrus Logic)
384 kHz/32-bit D/A Conversion with AK4438 (AKM)
Audio Return Channel (ARC) on HDMI
MCACC Auto Room Tuning
- Phase Control
- Subwoofer EQ
Advanced Sound Retriever (2ch)
Advanced Surround Modes
- Classical, Unplugged, Entertainment Show, Drama, Extended Stereo, Extended Mono, Front Stage Surround Advance
Ultra HD Pass-through with HDCP 2.3 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
HDR10, HLG and BT.2020 Wide Colour Gamut Signal Passthrough
Dolby Vision Compatible
Ultra HD Upscaling (1080p to 4K)
3D Ready (Blu-ray Disc™, Broadcast, and Games)
Deep Colour (36-bit), “x.v. Colour”
Bluetooth® Wireless Technology (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
User-Friendly GUI with System Setup Menu
On-Screen Information for Audio/Video Status
Auto Power Off in HDMI Standby Through
DAB/FM Tuner 40 Presets
User-Friendly Simple Remote Control
MCACC Setup MIC In
Phones 1 Out
HDMI 4 In (4 Assignable)
HDMI 1 Out
USB 1 In for Streaming Dongles
Audio 3 In (Assignable)
Digital Coaxial 1 In (Assignable)
Digital Optical 1 In (Assignable)
Subwoofer 2 Pre Out
ZONE B Line Out for Wireless Headphones
Speaker 5 ch Out (FRONT , CENTER, SURROUND/HEIGHT)
Power Requirements: AC 220-240 V, 50/60 Hz
Power Consumption/Standby: 465 W/0.2 W
Dimensions (W x H x D): 435 x 148 x 321 mm
Weight: 8 kg
Optical, HDMI, DAB+, Dolby Atmos, Headphone Out, Microphone In
