PA amplifier with 120W of power, Bluetooth/USB/FM player and speaker zone selector. With its compact size and durable construction it is easy to transport and set up

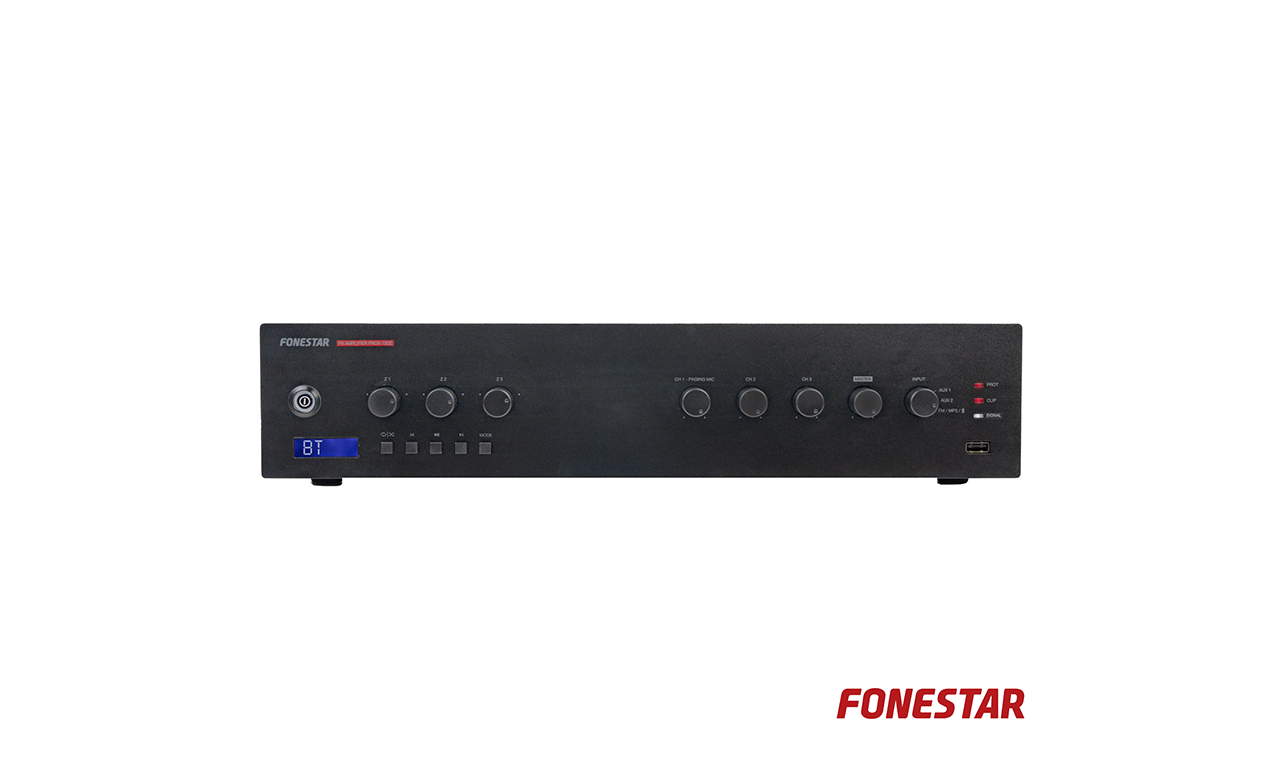

PA Amplifier 3 zone, 120W – Fonestar PROX-120Z
- The best tool for sound coverage of areas.
- Reliable for long working days.
- Distributed audio for PA installations with 100 speakers, also with low impedance output.
- Versatile player for background music. Bluetooth, FM and USB memory player.
- With auto play function on power up.
- It has 3 zone outputs with volume control for different music levels per zone.
- User-friendly operation and a modern, discreet design.
- A solution that fits any budget.
- Secure, durable connections with low maintenance.
- Can be used on the desktop or installed in a rack.
- Output zones with volume and Off control
- Bluetooth/USB/FM player
- Great performance, low maintenance
Public address amplifier
Microphone input with mix, gain and priority level control.
Input priorities by signal level.
100 V and 4 Ω outputs.
3 outputs zones with volume control and Off.
120 W RMS
40-20,000 Hz (-10 dB)
THD+N: < 1% @ 1 kHz
Overcurrent, DC and short-circuit at the output
CH 1 mic/line balanced with 48V Phantom. Combo connector (XLR + 6.3mm) and euroblock.
CH 2 and 3 mic/line balanced with 48V Phantom. Euroblock connector.
Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω
Line signal level: 250 mV RMS (-12 dBV) / 100k Ω
2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω
1 emergency. Euroblock connector. Signal level loudspeaker line 100 V
1 Mute (Emergency Priority) by contact closure. Euroblock connector
1 line, 2 x RCA, 1.25 V RMS (+2 dBV)
100 V or 4 Ω speaker output, or 3 x 100 V speaker zones with 5-position volume selector switch and OFF
4 Ω and 100 V line (83Ω)
Input priority (voice over VOX inputs):
100V Emergency input with highest priority, attenuates all other inputs.
Mute by contact closure, attenuates all inputs except the 100 V Emergency input.
Channel 1 with priority over all other inputs, level selectable.
Channel 2 and 3 with priority over auxiliary inputs and player, level selectable.
Power on, protection, signal peak and output signal indicator lights
Temperature-controlled forced ventilation cooling
Bluetooth/USB/FM player for background music playback
MP3 and WAV files supported
Maximum USB memory capacity 64 GB
Autoplay, starts playback automatically on power on
Memory of last selected mode
Play mode memory (random, repeat)
Aux input or player selector
Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz)
Priority activation signal level (VOX)
Operation: 0º ~ 40ºC
230/115 V AC 50-60 Hz, 320 W
Fuse AC 230 V 3.15 A / 115 V 6 A
433 x 89 x 360 mm depth
Bluetooth, USB, FM
