Outdoor speakers & Network Amplifier – Yamaha R-N303D & Monitor Audio Climate 60

1,185

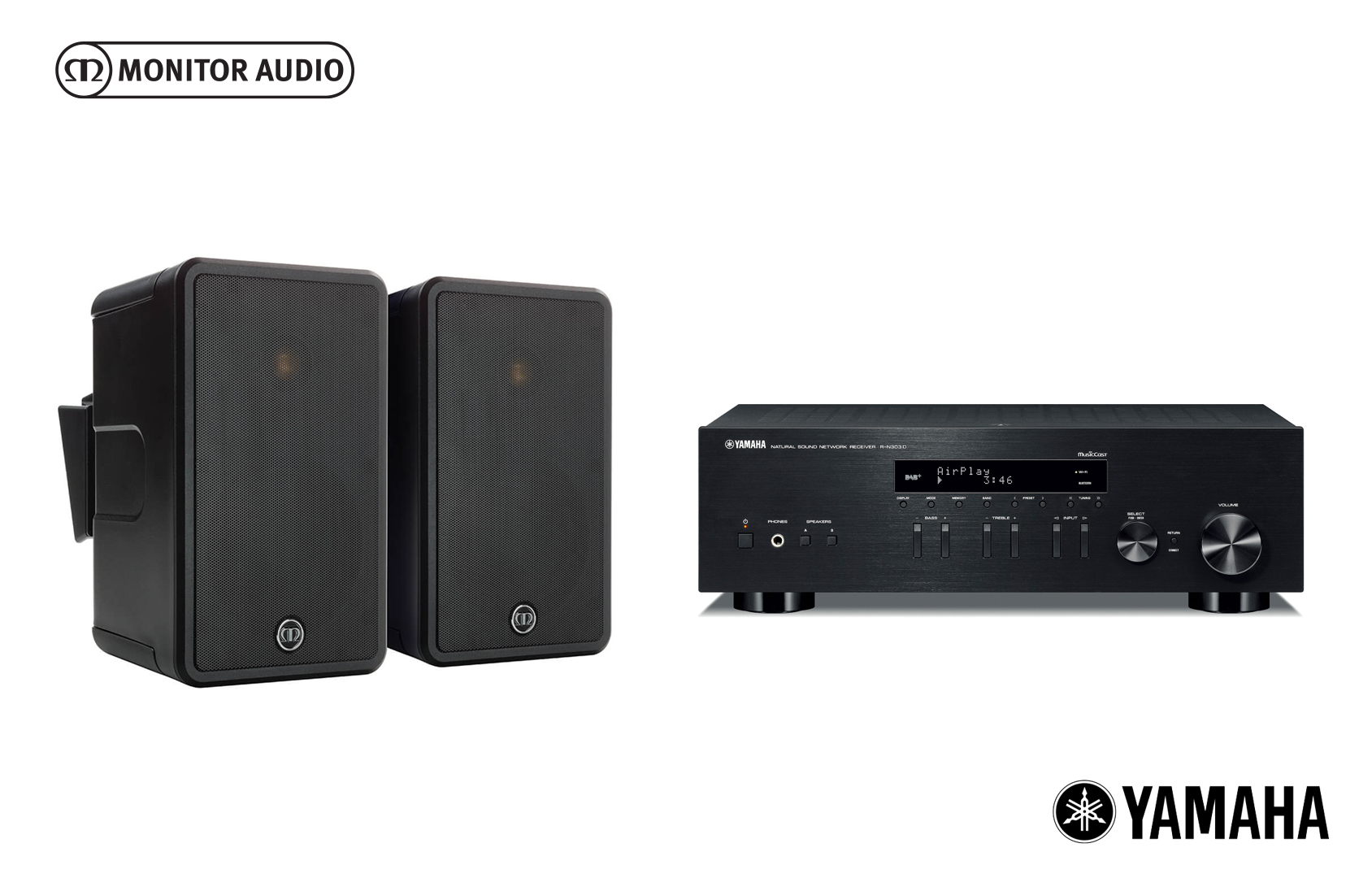

Monitor Audio Climate 60 2-Way outdoor IP55 rated satellite speakers + Yamaha R-N303D Hi-Fi stereo Network Receiver – 100w x 2, DAB+, Bluetooth, Optical input for TV, App control, TuneIn & Spotify streaming music services – superior, exceptionally musical sound.







Description

Monitor Audio Climate 60

Technology

  • Quick and easy installation
  • High performance C-CAM tweeter and driver technology
  • Robust solid sealed, high density polypropylene enclosure – UV rated.
  • Full installation flexibility: 175º rotational bracket, (it also features angled sections and screw holes to provide corner fixing.)
  • 15º angled wedge supplied for additional bracket versatility
  • Anchor point for security chain attachment
  • ABR (Auxiliary Bass Radiator) for added low frequency punch
  • Aluminium grilles prevent rust
  • *Textured white and black finish, paintable to suit décor (paint mask supplied)
  • Rotational ‘M’ logo to align with portrait or landscape positions.

Frequency Response

63 Hz — 30 kHz



Sensitivity (1W@1M)

88 dB



Nominal Impedance

8 ohms



Maximum SPL

108.8 dBa



Power Handling (RMS)

100 W



Recommended Amplifier Requirements

15 — 100 W



Drivers

1 x 165 mm (6 1/2″) C-CAM bass/ mid-range driver

1 x 25 mm (1″) C-CAM Gold Dome tweeter



External Dimensions (H x W x D)

325 x 185 x 178.5 mm (1213/16 x 75/16 x 7″)



Overall Depth (Including Bracket)

235 mm (91/4″)



Total Bracket Pivot Angle

87.5 degrees (from central position)



Fixed Angled Block (Portrait)

15 degrees



Connection

Gold plated ‘push’ type terminals



Environmental Protection Rating

IP55



Colour / Finish

Black



Weight (packaged)

4.62 kg (10 lb 2 oz)



Sold As

Pair

Yamaha R-N303D

Maximise Your Listening Pleasure with Hi-Fi quality for all your music

Make the Yamaha R-N303D Hi-Fi receiver the centrepiece of your audio system, and get streaming music services, music from your smart phone, network audio, and the music you listen to every day — and enjoy it even more, with superior, exceptionally musical sound. If you truly love music, this single device will open up new dimensions of listening enjoyment you never dreamed possible.





Find your favourites, discover new ones

The R-N303D is compatible with a large variety of popular streaming services, including the widespread Spotify, the up-and-coming Tidal and Deezer services, as well as Napster®, Qobuz, Juke and others — letting you enjoy all your favourite artists, discover new ones, and get music content from all over the world.  * Music service availability varies by region and may change or be discontinued without notice.











Control at your fingertip

Control. It’s all in the palm of your hands — with the free MusicCast CONTROLLER app. Simply tap and flick on the intuitively designed screen, and easily operate all of your MusicCast devices, as well as the R-N303D.





Advanced circuitry, powerful sound

Each unit is equipped with a high-quality / high-power amp, featuring a single push-pull and discrete configuration that delivers a maximum output of 140 watts/channel (8Ω). Its low-impedance design minimises the lengths of the audio signal paths, while placing the power supply unit near the amp unit eliminates energy loss, achieves superior drivability for optimum sound reproduction with all kinds of speakers, providing exceptionally dynamic, exciting sound.









Experience high resolution

The R-N303D supports an extensive variety of high resolution audio formats. Feel the very breath of the vocals, bask in the airy atmosphere of a concert hall — and experience all of the performance as never before.





Your music everywhere

MusicCast employs a high performance wireless network to deliver music and audio enjoyment. It can stream digital music content from your smartphone, PC or NAS to other MusicCast devices in your home. It can also share the music from external devices such as a CD player or TV connected to the R-N303D. Audio content from Bluetooth®-connected smartphones or tablets can also be streamed to MusicCast devices in multiple rooms





Go wireless

The R-N303D is equipped with Bluetooth® functionality to let you enjoy easy wireless music playback from smartphones and other devices.



Hi-Fi sound for your TV

The R-N303D is equipped for digital audio input with both audio and coaxial terminals. The optical is for receiving audio from a TV and the coaxial is for receiving audio from a Blu-ray Disc™ player. The audio stays in the digital domain, giving you pure, pristine, dynamic sound for all your entertainment sources, from sports and other programmes to movies and concerts.

Control All Your Equipment at Will with Just a Single App

Simply tap the beautifully designed screen and take control of all the audio equipment and all the music in your home. There are a wide variety of capabilities like the Link function that lets you play the same song in different rooms simultaneously and the ability to freely customize the room screen with your own pictures. Make your musical world even more exciting.

Specifications

Network section

DLNA Version 1.5

File Format MP3, WMA, MPEG4 AAC, WAV, FLAC, AIFF, ALAC, DSD

AirPlay Yes

Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) 115 W + 115 W

Maximum Power(8 ohms, 1 kHz, 10% THD) 140 W + 140 W

High Dynamic Power/Channel (8/6/4/2 ohms) 125 / 150 / 165 / 180 W

Frequency Response 0 ± 0.5 dB / 0 ± 3.0 dB

Signal-to-Noise Ratio (CD) 100 dB (Input shorted, 500 mV)

Audio In / Out 6 / 1

Digital Input Yes (Optical / Coaxial)

Standby Power Consumption 0.1 W (Network standby on / Wi-Fi connection; 1.8 W)

Dimensions (W x H x D) 435 x 141 x 340 mm (with antenna up: 435 x 202 x 340 mm); 17-1/8” x 5-1/2” x 13-3/8” (with antenna up: 17-1/8” x 8” x 13-3/8”)

Weight 7.2 kg; 15.9 lbs.

Receiver / Integrated Amplifier

Network section Wi-Fi – Yes (with Wireless Direct)

                             Bluetooth – Yes (SBC / AAC)

Minimum RMS Output Power 100 W + 100 W (8 ohms, 40 Hz-20 kHz, 0.2% THD)

Ethernet Yes

Headphone Out Yes



Additional information

Brand

Yamaha / Monitor Audio

Amplifier Connectivity

Bluetooth, Optical, Aux-In, Multiroom, Wi-Fi, DAB+, Headphone Out, FM, 2 Channel

Speaker Type

Bookshelf / Wall-Mounted, Water Resistant

System Configuration

2 Speakers
