Effortlessly stream Full HD 1080p 3D content to your projector or TV wirelessly. Eliminating the hassle and extra cost of installing long cables.
Description

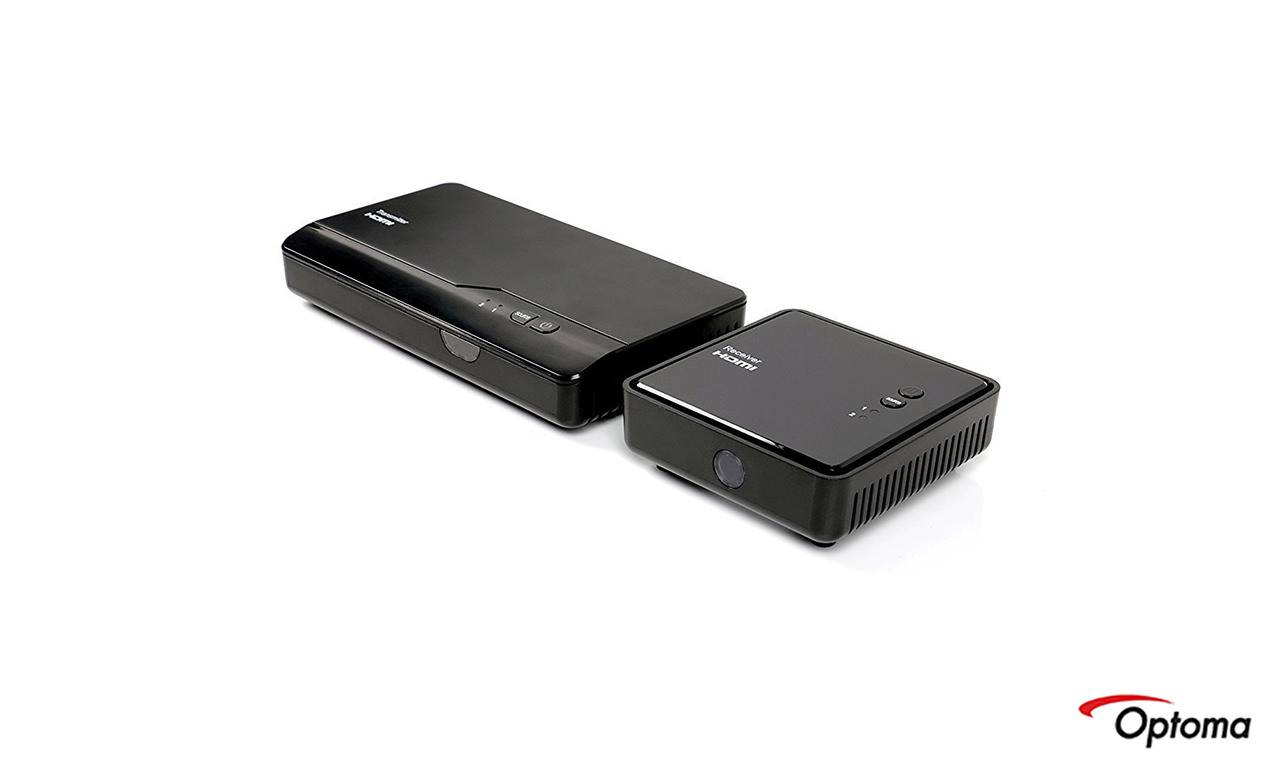

Wireless HDMI sender and receiver
Effortlessly stream Full HD 1080p 3D content to your projector or TV wirelessly. Eliminating the hassle and extra cost of installing long cables. The WHD200 allows you to connect to any HDMI device such as a Blu-ray player, digital set-top box, games console, laptop or AV receiver.
For added convenience, two input devices can be simultaneously connected to the WHD200. A second display can also be connected using the included HDMI out port, which means set-up is simple for a super-sized Full HD experience.
Note: Multiple receivers cannot be used Up to three devices can be used in one room
Receiver dimensions – 95 x 95 x 34 mm Transmitter dimensions – 182 x 92 x 31 mm
System latency – Ultra Low <1ms Operating temp – 0 ~ 40°C Audio Input Support – Up to 6 Mbps AC-3 and DTS
Features
Full HD wireless video up to 1080p60Hz (Full 3D support)
Easy setup with auto detection – Plug & Play
20m Range (in room)
2x HDMI 1.4a 3D inputs, 1x HDMI 1.4a 3D output
Wireless video and audio
Send video signals with audio from any HDMI device such as laptops, Blu-ray players and games consoles directly to your projector or display wirelessly; eliminating the hassle and extra cost of installing long cables.
Full HD 1080p
Supports Full HD 1080p resolution to give you sharp and detailed images from HD content without downscaling or compression; perfect for watching movies, viewing photos and documents.
Full 3D
Supports true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles
USB power
Connect the WHD200 receiver directly to a HDMI port and power the device via the USB-A power port* on the projector or TV. Or use the included external USB power adapter. *USB power must provide at least 5V 1.5A to power the receiver.
Specifications
Net weight
0.329kg
Operating temperature (max)
40°C
Wireless – range
20m
Wireless – antenna
Omni-directional High Performance Internal Antennas
Wireless – operating frequency
4.9 ~ 5.9GHz
Wireless – technology
WHDI
Power supply
100 ~ 240V (5V DC)
Connections
Inputs 2 x HDMI 1.4a 3D support, 1 x DC, 1 x mini USB
Outputs 2 x HDMI 1.4a 3D support
3D compatibility
Frame-pack: 1080p24, 720p50/60 Side-by-Side:1080i50/60, 720p50/60 Over-Under: 1080p24, 720p50/60
2D compatibility
1080p24, 1080p50, 1080p60 1080i50, 1080i60 720p50, 720p60, 576p, 480p
In the box
Quick start guide
2* Power adapters
2* HDMI cables
Remote inc 2* AAA batteries
IR repeater
Additional information
| Brand | Optoma |
|---|---|
| Prod-Type | Wireless HDMI |
| Product Colours | Black |
