Onkyo TX-NR7100 is a 9.2 Ch THX-Certified AV Receiver. Features include, Bluetooth, Dolby Atmos, DTS:X, Vision, Dirac Live room correction, built-in streaming services among others.

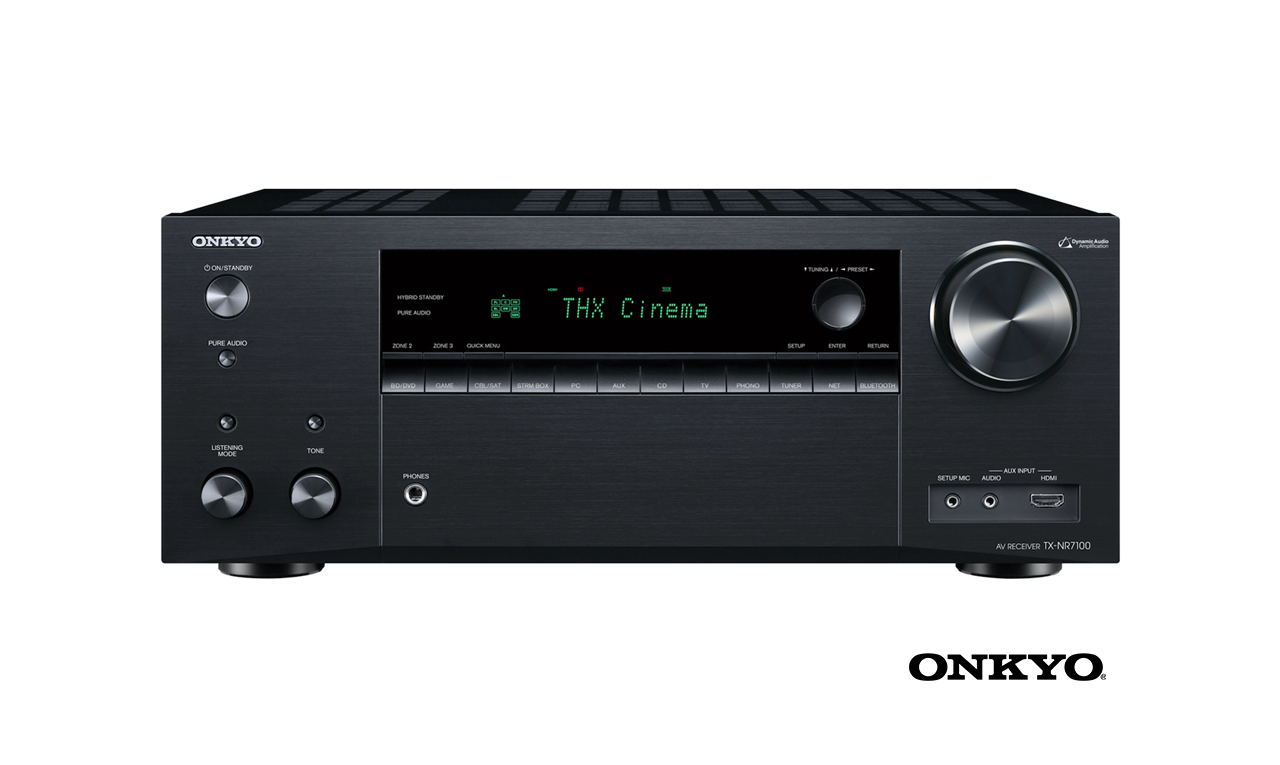

Onkyo TX-NR7100 – 9.2 Channel THX Certified AV Receiver
9.2-Channel THX Certified AV Receiver
With 9 channels and built-in, ready-to-use Dirac Live® Room Correction, the Onkyo TX-NR7100 9.2 Channel THX® Certified AV Receiver brings new meaning to the phrase, “home movie night”
Own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. – ALLM (Auto Low Latency Mode) optimizes latency from source to screen – QFT (Quick Frame Transport) limits lag for a smoother experience.
This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port.* This works with Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app. The TX-NR7100 can work with up to three Sonos Ports—one for each of three independent zones—each playing a completely different streaming service from Sonos Radio.
*Sonos Port required and sold separately
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.
HDMI 2.1 WITH 8K PROVIDES IMMERSIVE SOUND FROM YOUR TV APPS
HDMI® 2.1 is the most recent update of the HDMI® spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.
SMART HOME COMPATIBLE WITH VOICE CONTROL
The Onkyo TX-NR7100 9.2-Channel THX® Certified AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can operate seamlessly in your multi-room ecosystem.*
*Requires third-party AI compatible smart home device with microphone
BI-DIRECTIONAL BLUETOOTH WIRELESS TECHNOLOGY
This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX™, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.
The Dirac Live® Room Correction offers improved musical staging, clarity, dialog, and deeper bass, while the additional two channels create a 5.1.4 Dolby Atmos® immersive surround sound experience.
Take the room out of the equation
State-of-the-art Dirac Live Room Correction technology unlocks your loudspeakers’ full potential, improving audio performance across the full frequency band without additional upgrades. Dirac Live automatically calibrates sound in your room using either your smartphone and the included wired mic or virtually wireless with the Dirac Live PC or MacOS* application and a 3rd party USB mic (not included). Now, you’ll get a more accurate measurement of your surround sound system’s positioning to be more precise and balanced, providing a better result with the increased upper limit of delay time from 20 to 50 milliseconds.
*Device must be connected to the internet and the same network as your AVR
In 1993, Onkyo became the first consumer electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material. The TX-NR7100 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.
BUILT-IN STREAMING SERVICES
Access to Spotify®, TIDAL, Deezer, TuneIn, and Pandora® are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.
Klipsch Optimize Mode
Klipsch Optimize Mode allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied.
Discrete Zone 3 HDMI Switching
Set up different high-definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver when the kids don’t feel like partaking in whatever you like or vice versa.**
*8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used
**Zone 3 for analog and Net sources only
|220 W/Ch THX® Certified Select Dynamic Audio Amplification system||✓|
|IMAX® Enhanced certified for immersive signature sound by DTS:X®||✓|
|5.2.4-ch/7.2.2-ch Dolby Atmos® and DTS:X playback||✓|
|Supports Dirac Live® Room Correction||20Hz to 20kHz|
|AccuReflex phase-matching solution for Atmos-enabled speakers||✓|
|SMART AV Receiver™||Works with Sonos, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD, Pandora®, TIDAL, Deezer, and TuneIn streaming services|
|Works with Hey Google or Alexa||Sold separately|
|Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard||✓|
|HDMI® inputs||Inputs 1-3 and Main/Sub out support 8K/60AB and 4K/120AB. Inputs 4-6 support 8K/60B and 4K/120AB. Front HDMI Input supports up to 4K/60 (HDMI 2.0).|
|HDMI 2.1||HDMI 2.1 features that are supported on HDMI inputs 1–6, Main Out, and Sub/Zone 2 Out in Sub Mode output including VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching), and eARC (Main Out).|
|HDMI Sub/Zone 2 Out for media transmission to a second display||✓|
|Send or receive audio via Bluetooth® wireless technology||RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/ aptX HD|
|Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines||✓|
|5.2-ch Main + Powered Zone 2 + Powered Zone 3 speakers support synced/independent D/A audio playback||✓|
|Zone 2/Zone B line-out*7 (analog RCA) supports synced or independent D/A playback*8 on compatible audio systems or headphone docks||✓|
|Power output (All channels)||220 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven) 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)|
|Dynamic power||250 W (3 ohms, Front) 220 W (4 ohms, Front) 130 W (8 ohms, Front)|
|THD+N (Total Harmonic Distortion + Noise)||0.08% (20 Hz–20 kHz, half power)|
|Input sensitivity and impedance||200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)|
|Rated RCA output level and impedance||1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)|
|Frequency response||10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)|
|Tone control||±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)|
|Signal-to-noise ratio||106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)|
|Speaker impedance||4–16 ohms|
|FM||87.5 MHz–107.9 MHz|
|AM||530 kHz–1,710 kHz|
|FM/AM preset memory||40 stations|
|Power supply||AC 120 V~, 60 Hz|
|Power consumption (operating)||750 W|
|Power consumption (idle)||75 W|
|Power consumption (standby)||0.1 W|
|Dimensions (W x H x D)||17 1/8˝ x 6 13/16˝ x 14 15/16˝ (435 x 173.5 x 379.5 mm)|
|Weight||22.9 lbs. (10.4 kg)|
|Dimensions (W x H x D)||21˝ x 10 7/16˝ x 18 7/16˝ (534 x 265 x 468 mm)|
|Weight||29.8 lbs. (13.5 kg)|
|Indoor FM antenna||✓|
|AM loop antenna||✓|
|Speaker setup microphone||✓|
|Quick Start Guide||✓|
|Two AAA (R03) batteries||✓|
Bluetooth, Optical, HDMI, Aux-In, Network Port, Wi-Fi, Dolby Atmos, Headphone Out, USB
