Network Stereo Receiver with Built-In HDMI, Wi-Fi & Bluetooth. Features include support for HDR, HLG, Dolby Vision, Sonos, DTS Play-fi among others.

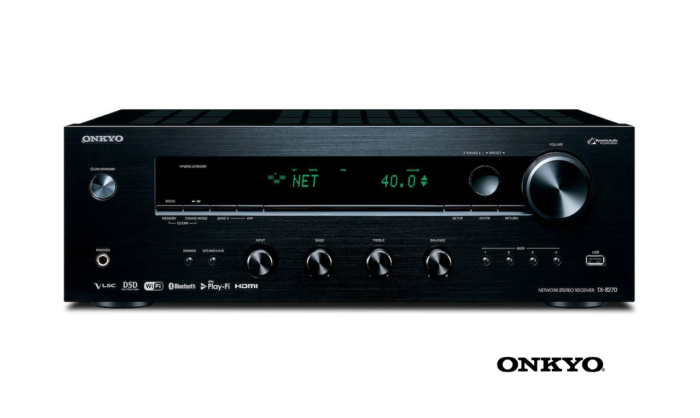

Onkyo TX-8270 – Network Stereo Receiver with HDMI
€599
In stock
In stock
Description
TX-8270
Network Stereo Receiver with Built-In HDMI, Wi-Fi & Bluetooth
The TX-8270, is a beautifully engineered 100W/ channel network stereo receiver designed to maximize musical enjoyment and drive your favorite speakers. Built around a massive transformer, audio-grade capacitors, and discrete non-phase-shift circuitry locked into a robust chassis, this amp has high-current power to illuminate cherished vinyl to Hi-Res audio and unmatched connectivity options for audio components.
Ready for 4K HDR Entertainment
Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision®, and BT.2020. The 4:4:4 color space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector and all terminals are HDCP 2.2 compliant.
Whatever audio is playing on your phone, tablet, or PC app can be streamed to the receiver with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.

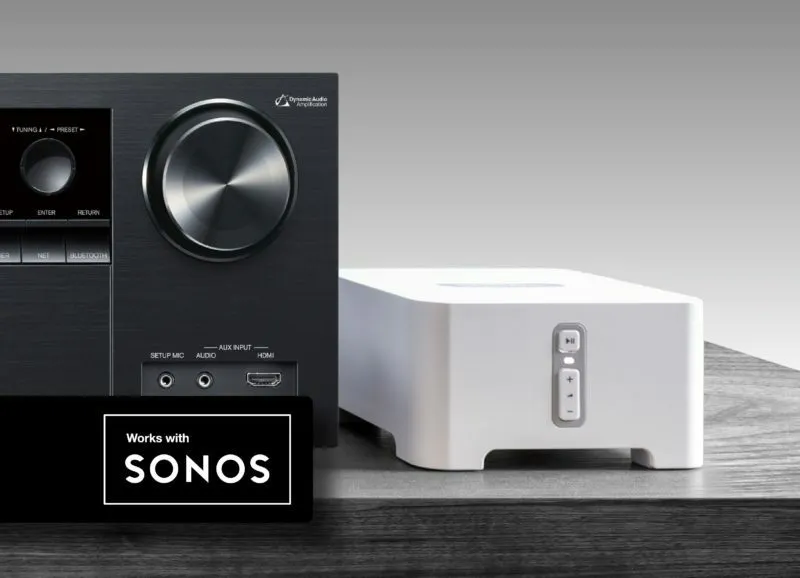

This Onkyo receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Connect. The AVR ties into the Sonos ecosystem, waking, changing inputs, and playing at the desired volume on command from the Sonos app.
Refined over 70 years to deliver emotion in high fidelity, DAA features a custom High-Current Low-Noise Power Transformer, customized capacitors, and discrete amp output stages. Unique topology prevents phase-shift while high current improves speaker control for true dynamic speed. Driving 4-ohm loads through all channels, DAA has power to move.
Stream any music from your smartphone, laptop, or PC to your Onkyo receiver with ease. Control playback with Chromecast enabled apps you know and love from your iPhone, iPad, Android™ phone or tablet, Mac® or Windows® laptop, or Chromebook™.
Features
| Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven, FTC) | 170, 10% THD |
| Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) | 100, 0.08% THD |
| Dynamic Power | 240 W (3 Ohms, Front) 210 W (4 Ohms, Front) 120 W (8 Ohms, Front) |
| WRAT (Wide Range Amplifier Technology) | – |
| H.C.P.S. (High Current Power Supply) | – |
| Non-Phase-Shift Amp Design | ✓ (for Realistic Sound Imaging) |
| 6 Ohm Capable | ✓ |
| 4 Ohm Capable | ✓ |
| Direct/Pure Mode | ✓/- |
| 384K/32 Bit DACs | ✓ (Asahi Kasei AKM4438) |
| 192K/24 Bit DACs | – |
| Audio Input/Output | 4/1 |
| Phono Input | ✓ |
| Digital Audio IN (Opt/Coax) | 2/1 |
| Auto Power On When Signal is Detected | – |
| Zone 2 Line Out | ✓ |
| Zone 2 Digital to Analog Audio Conversion | – |
| Speaker A/+B | ✓ |
| Subwoofer Pre-out | ✓ |
| Headphone Jack | ✓ |
| Internet Radio Capable | ✓ (TuneIn Radio, Tidal, Pandora, Spotify, and Deezer) |
| Spotify Connect Support | ✓ |
| Streaming Audio From PC / Network | ✓ |
| Hi-Res Streaming Audio Formats | ✓ (Apple Lossless, DSD 2.8/5.6 MHz, AAC, MP3, FLAC 192/24, LPCM, AIFF, WAV, WMA Lossless) |
| Supports Onkyo Controller App | ✓ |
| Wireless Network | ✓ (Wi-Fi Certified) |
| USB Input | ✓ (Front) |
| Chromecast built-in and Works with Google Assistant | ✓ (Via Firmware Update) |
| DTS Play-Fi | ✓ (Via Firmware Update) |
| AirPlay | ✓ |
| Firmware Updates via Network/USB | ✓/✓ |
| Quick Access BGM Presets | ✓ (x4) |
| Number of AM/FM Presets | 40 |
| Preset Station Naming | ✓ |
| Direct Access Tuning | ✓ |
| Automatic/Manual Tuning | ✓ |
| Sleep Timer | ✓ |
| IR Input | ✓ |
| IR Output | ✓ |
| RI-Compatible Remote Control | ✓ |
| Warranty | 2 YEARS |
Specs
| Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) | 100, 0.08% THD |
| Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven, FTC) | 170, 0.10% THD |
| Dynamic Power | 240 W (3 Ohms, Front) 210 W (4 Ohms, Front) 120 W (8 Ohms, Front) |
| THD + Noise | 0.08 % (20hz-20kHz, Half power) |
| Frequency Response | 10 Hz-100 kHz (+ 1 dB, -3 dB) (Direct Mode) |
| S/N Ratio | 106 dB (IHF-A, Line In, Speaker Out) 80 dB ( IHF-A, Phono In, Speaker Out) |
| Phono Overload (1 kHz) | 70 mV (MM, 1 kHz, 0.5%) |
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM Preset Memory | 40 Stations (Plus 4 Faceplate BGM Presets) |
| Power Supply | AC 120 V˜, 60 Hz |
| Power Consumption | 4.2 A |
| Standby Power Consumption | 0.1 W |
| No-Sound Power Consumption | 35 W |
| Network Standby Power Consumption | 2.6 W |
| Dimensions (W x H x D) | 17 1/8″ x 5 7/8″ x 12 15/16″ (435 x 149 x 328 mm) |
| Weight | 18.1 lbs. (8.2 kg) |
Downloads
Additional information
| Brand | Onkyo |
|---|---|
| Colour | Black |
| Amplifier Connectivity | Bluetooth, HDMI, Sub Pre-Out, Network Port, Wi-Fi |
