Onkyo C-7070B

599 539

Call for availability

Plays Audio CD, CD-R, CD-RW, MP3 (CD-R, CD-RW) & WMA, Separate Wolfson® 192 kHz/24-Bit DACs (WM8742 x 2) for L/R Channels

SEND EMAIL QUERY

Description

Onkyo C-7070B Compact Disc Player

New CD Player Takes it to the Next Level

It’s difficult to imagine how you could improve the humble CD player, but Onkyo’s engineering team had plenty of inspiration. For 2011, the C-7070 is an extremely versatile and sophisticated piece of audio equipment. The unit is strengthened with vibration-damping legs, a 1.6 mm thick flat-base chassis, an aluminum CD tray with silent mechanism, a full-floating circuit board, and a handsome aluminum front panel. In addition, the electrical system benefits from a precision clock, a pair of Wolfson® 192 kHz/24-bit DACs—one for each channel—and Onkyo’s DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry). These improvements all but eliminate noise from the source, meaning your music will sound clearer than ever. Naturally, the C-7070 plays audio discs or CD-R/ CD-RWs and your favorite MP3/WMA compilation CDs. It also connects to your iPod/iPhone via the USB port, and plays music straight off a USB thumb drive. The three-stage dimmer function, gold-plated audio terminals, and headphone amplifier differential circuitry offer further evidence of Onkyo’s attention to detail. All this adds up to a player that, like your CD collection, will be around for a long time to come.
Image result for onkyo c-7070b

Player Features
• Plays Audio CD, CD-R, CD-RW, MP3 (CD-R, CD-RW) and WMA (CD-R, CD-RW)*
• DIDRC (Dynamic Intermodulation DistortionReduction Circuitry)
• Precision Clock for Optimal Timing of DigitalSignals (±10 ppm)
• Separate Wolfson® 192 kHz/24-Bit DACs (WM8742 x 2) for L/R Channels
• Silent Disc Mechanism with Solid Die-Cast Aluminum Tray
• Floating Circuit Board Construction
• 1.6 mm-Thick Anti-Vibration Full-Flat Chassis
• Solid Aluminum Front Panel
• Direct Digital Connection of iPod/iPhone via FrontPanel USB Port
• Independent Headphone Amplifier
• 25-Track Memory Playback
• Random and Repeat Playback Function
*Discs should be properly finalized.

Other Features

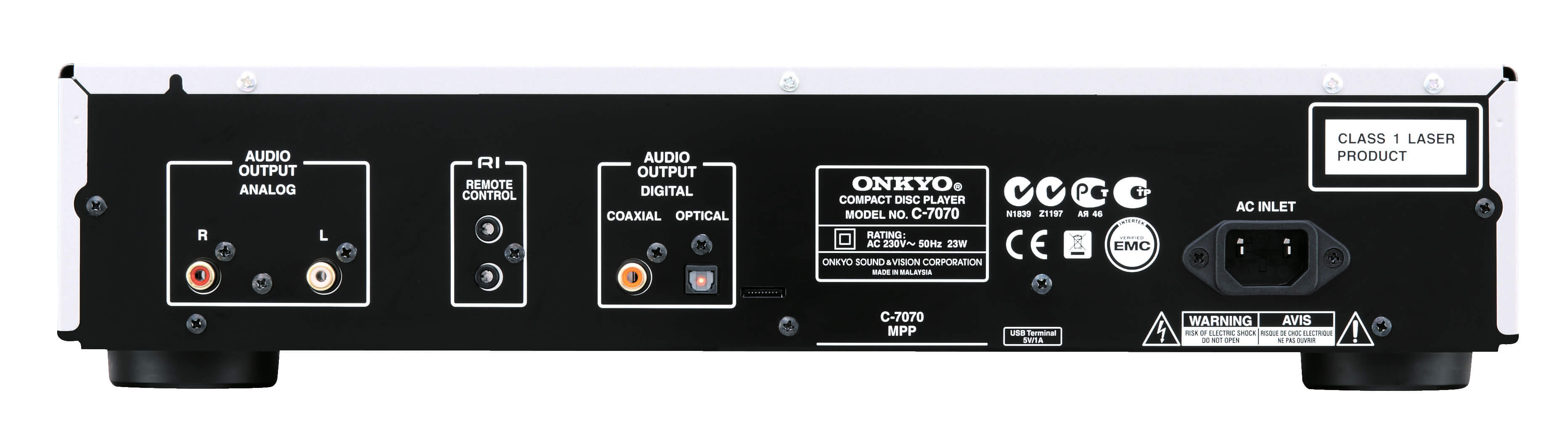

• 2 Digital Outputs (Optical and Coaxial)
• Analog Audio Output
• Handles Playback of Mass Storage Class USBMemory
• Machined, Gold-Plated Audio Terminals
• 3-Mode Display Dimmer (Normal/Dim/Dimmer)
• Auto Standby Function• RI (Remote Interactive) Remote Control

Specifications
Frequency Response 2 Hz–20 kHz
THD (Total Harmonic Distortion)0.0025%
Signal-to-Noise Ratio 116 dB
Audio Dynamic Range 100 dB
Audio Output/Impedance
Optical -22.5 dBm
Coaxial 0.5 Vp-p/75 Ω
Analog 2 V (rms)/400 Ω

General
Power Supply AC 230 V~, 50 Hz
Power Consumption 23 W
Dimensions (W x H x D) 435 x 101 x 306 mm
Weight 6.4 kg
CARTON Dimensions (W x H x D) 564 x 200 x 413 mm
Weight 8.6 kg

Supplied Accessories
Instruction manual RCA audio cable Remote controller
AAA (R03) batteries x 2

Additional information

Brand

Onkyo

Colour

"Black, Silver"
