8-inch C-CAM bass driver featuring a true 3-way design that provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility.
Description

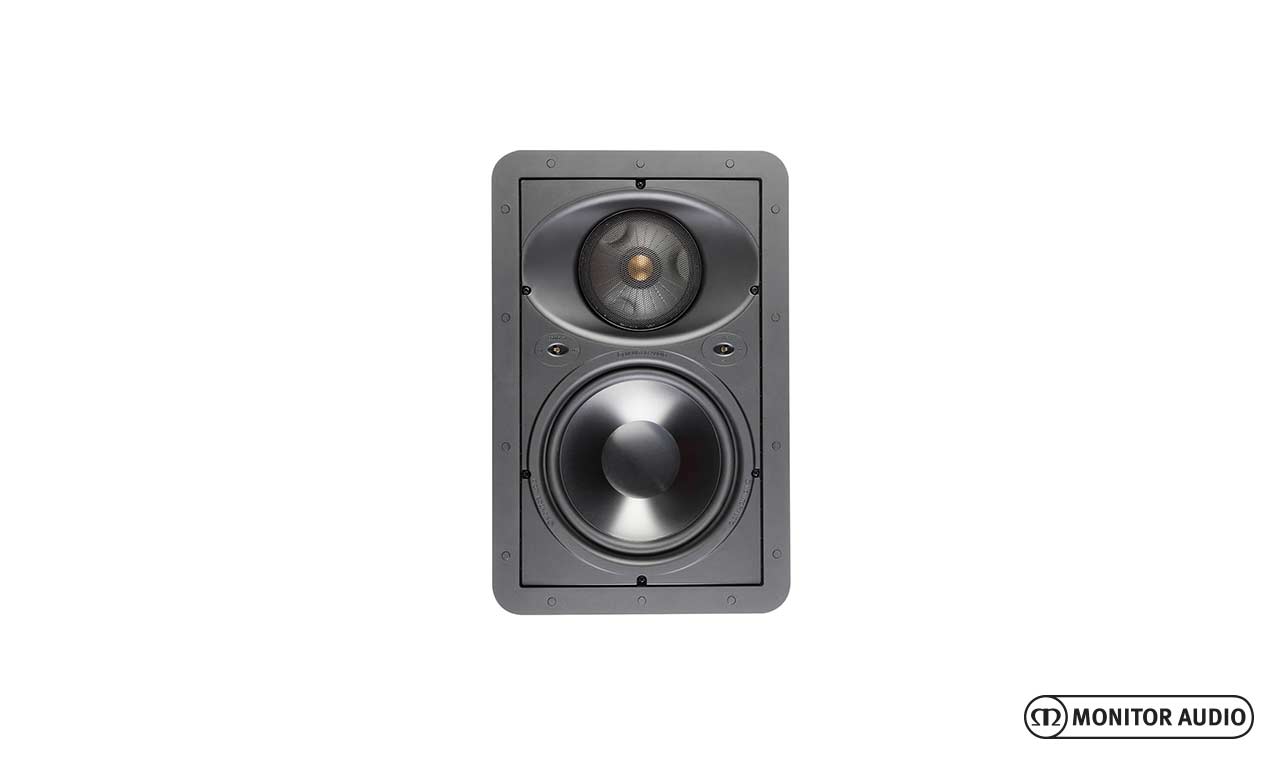

W280-IDC In-Wall Speakers.
True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation.
Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.
This product is now available to use with home theatre design software, The CEDIA Designer.
Specifications
Frequency Response
45 Hz – 30 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
111.6 dBA
Power Handling (RMS)
150 W
Recommended Amplifier Requirements
30 – 120 W
Drive Unit Complement
8″ C-CAM cone bass driver, pivoting IDC module housing:
4″ C-CAM RST inverted mid range driver
1″ C-CAM Gold Dome tweeter
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch
Overall Diameter (Including Grille)
441 x 288 mm (173/8 x 115/16″)
Overall Depth (Including Grille)
104 mm (41/8″)
Mounting Depth
100 mm (315/16″)
Cut-Out Hole Diameter
387 x 234 mm (151/4″ x 93/16″)
Fixing Type
6 position Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
3.6 kg (7 lb 14 oz)
Pre-Construction Bracket
WB8 Pre-Construction Bracket (Green)
Back Box
WCBOX-L
Sold As
Single Unit
Additional information
| Brand | Monitor Audio |
|---|---|
| Speaker Type | In-Wall |
