Monitor Audio Radius 380 Subwoofer

749

Call for availability

The Radius 380’s twin side-firing 8″ C-CAM drivers – one active and one passive ABR – work in tandem with a powerful 140 W cool-running Class D amplifier.

Call for availability

SEND EMAIL QUERY

Description

Radius 380

The Radius 380’s twin side-firing 8″ C-CAM drivers – one active and one passive ABR – work in tandem with a powerful 140 W cool-running Class D amplifier (double the power of its predecessor). The drivers have no grilles but are colour-coded to coordinate with cabinet finish. A 12 V trigger syncs the 380 with other AV components when the system is activated.

Technology

  • 18 mm MDF cabinet construction with internal bracing
  • Cool-running 140 W Class D amplifier with switch mode power supply (SMPSU)
  • Twin side-firing 8″ C-CAM drivers – one active and one passive ABR
  • Low pass filter switch – for LFE or Stereo input selection
  • Power switch with ON – Auto- Off/ trigger settings
  • Stereo/ LFE RCA inputs
  • 3 x Pre-set EQ settings – Music/Movie/Impact

This product is now available to use with home theatre design software, The CEDIA Designer

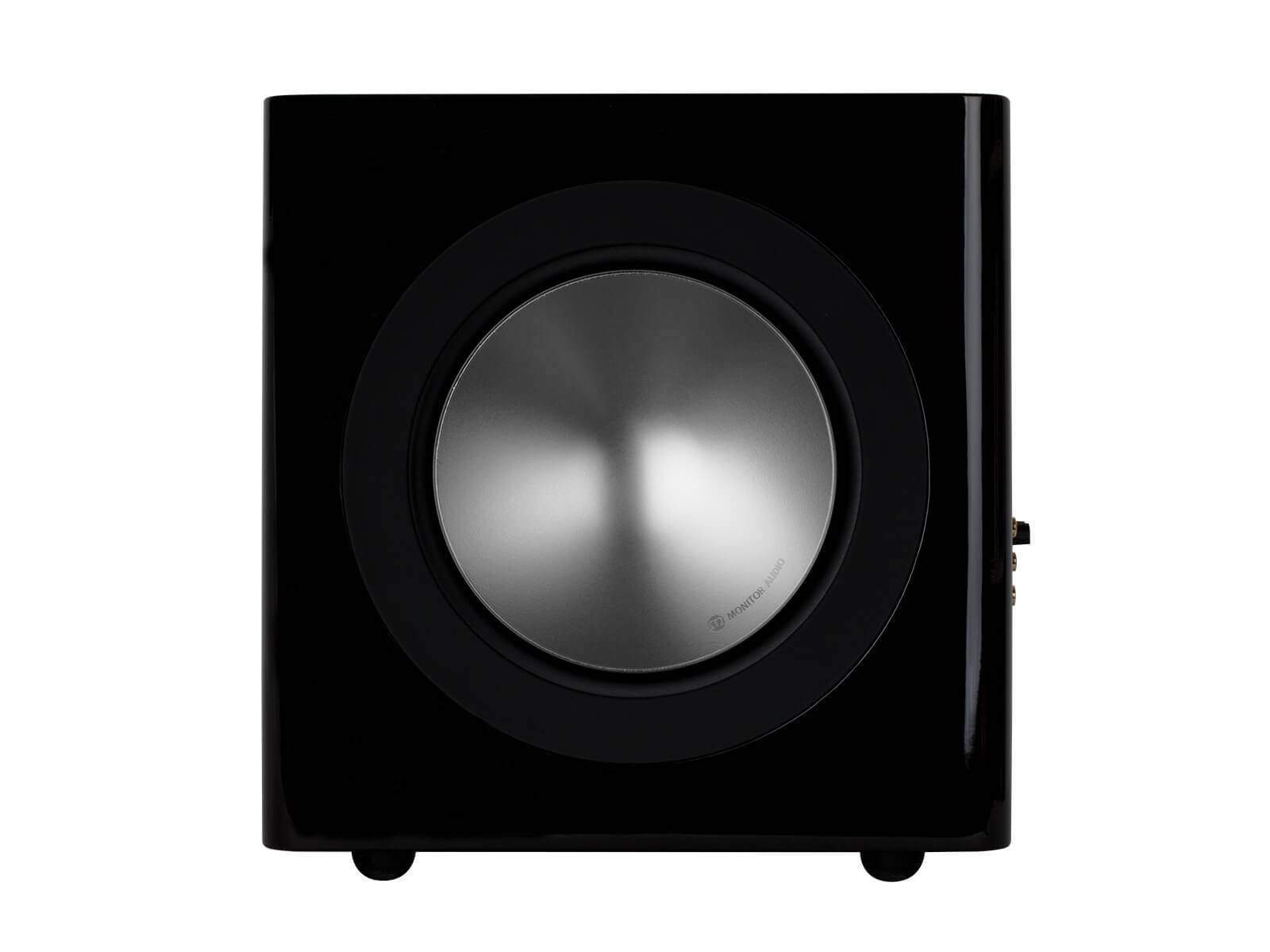

ma_radius_380_black_side

Specifications

System Format
Active sub-woofer system – Auxiliary (ABR) loading. 18 mm MDF cabinet

Lower Frequency Limit
30 Hz (- 6 dB)

Upper Frequency Limit
Variable 40 – 120 Hz @ 24 dB/Octave

Amplifier Output
140 W @ 1% THD+N

Amplifier Classification
Class D amplifier with Switch mode power supply (SMPSU)

Bass EQ Profiles
Music / Movie / Impact

Phase Control
0 & 180 degrees

Auto Sensing
Line Level >3.5mV

Input Level Requirements
Standby after approximately 15 minutes if no signal sensed

Drive Unit Complement
1 x 8” (200 mm) C-CAM long throw driver 1 x 8” (200 mm) ABR

Input Impedance
> 20 ohms

Mains Input Voltage
AC 110 – 120 V ~ 50/60Hz; AC 220 – 240 V ~ 50/60Hz (Factory Region Preset)

Dimensions (Including Amp and Feet (H x W x D))
308 x 290 x 305 mm (121/8 x 117/16 x 12″)

Connection
Stereo RCA in, LFE in, 12v Trigger in (3.5 mm mono mini-jack)

Trigger Input
5 – 12v via 3.5 mm mono mini-jack socket

Power Consumption
200 W / 0.5 W in Standby (ErP approved)

Weight (unpacked)
10.16 kg (22 lb 6 oz)

Sold As
Single Unit

Additional information

Brand

Monitor Audio

Speaker Type

Floorstanding
