Monitor Audio In-Ceiling 5.1 surround system Speaker Package

1,958

Monitor Audio Speaker Package including x5 in-ceiling speaker and a small but mighty Subwoofer

Description

5.1 Surround System Package

Great sound Doesn’t need to be bulky.

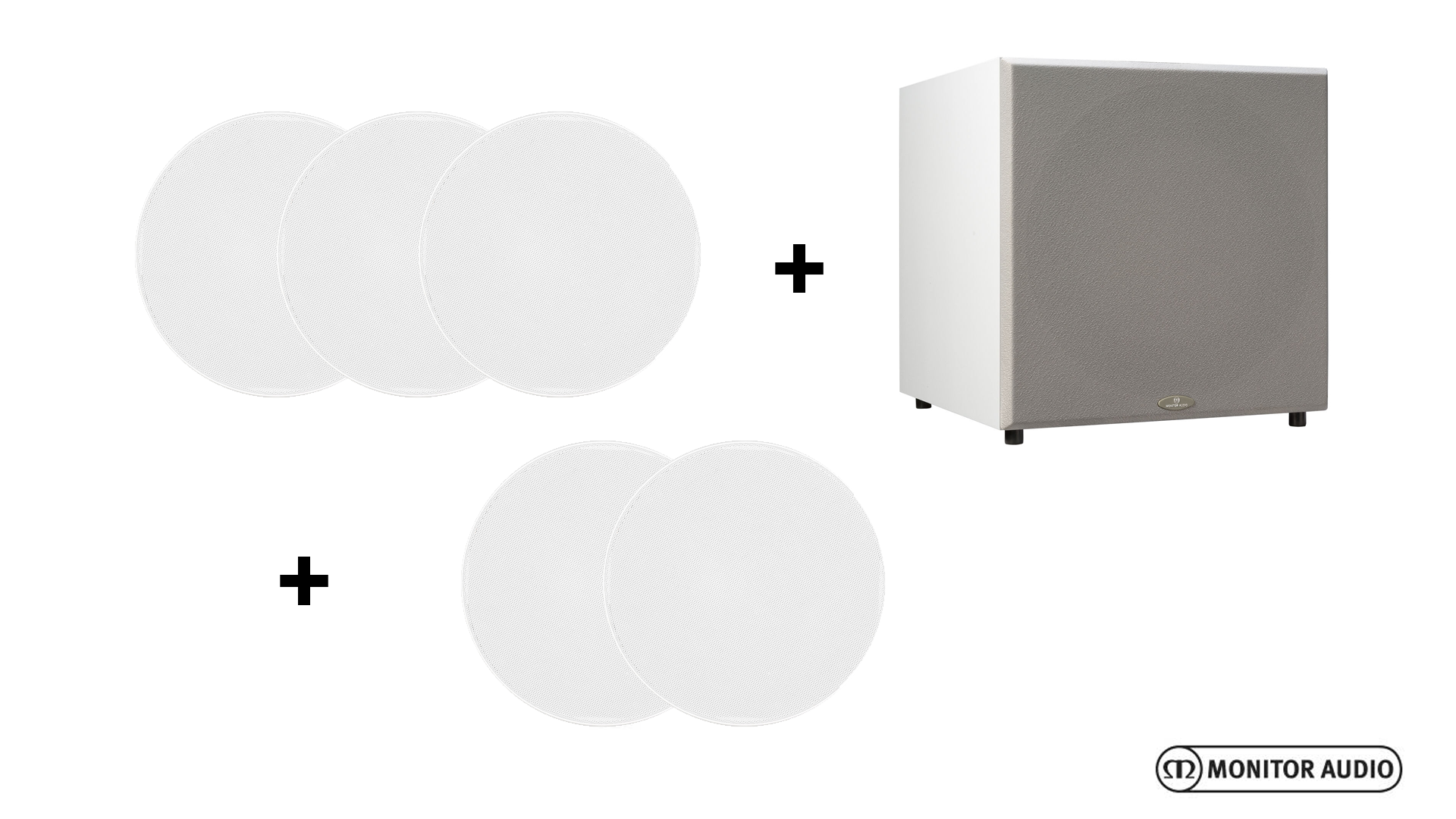

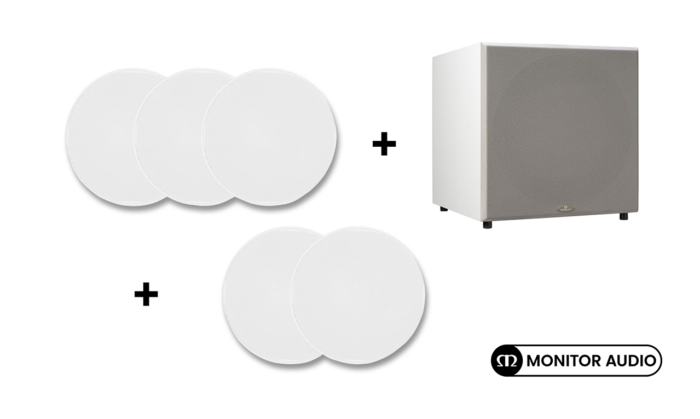

We’ve put together a Speaker Package including x5 in-ceiling speakers and a small but mighty Subwoofer:

  • Front Speakers – Monitor Audio CS 180 x3
  • Rear Speakers – Monitor Audio C380-FX x2
  • Subwoofer – Monitor Audio MRW-10 x1

CS 180
Left – Centre – Right

Offering superlative dynamic delivery in a super-discreet format, the CS180 will deliver fabulous full-range sound with stealthy versatility. The CS180 in-ceiling model marries our 8-inch MMP II driver with the CWT family’s pivoting C-CAM Gold Dome tweeter.

*Optional Square Grille also available by order

C380-FX
Rear Left – Rear Right

Features surround mode selection of dipole (diffuse sound) or bipole (direct sound) operation for super-discreet home theater sound.
Incorporates an 8-inch C-CAM RST bass driver 8-inch C-CAM bass driver and dual 1-inch C-CAM Gold Dome tweeters mounted at a precise fixed-angle for optimised performance.

*Optional Square Grille also available by order

Monitor audio C380-FX

Monitor MRW-10
Subwoofer

The Monitor MRW-10’s rigid cabinet is made from 18 mm thick MDF and accommodates a 10″ long-throw MMP II bass driver and a rear port that allows optimal output from the powerful on-board 100 W class D power amplifier.

The Monitor MRW-10 boasts an array of features dedicated to optimising a home theatre system. There are three pre-set EQ mode settings (Music, Movie, Impact) to offer a level of adjustment for all rooms and tastes, and the controls use an advanced DSP based architecture to provide the ultimate in audio flexibility.

*Available in Black or White

MONITOR W10

*When purchasing online, please specify Subwoofer colour in Notes at checkout.

Specifications

CS 180

Frequency Response
48 Hz – 30 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
90 dB

Maximum SPL
110.6 dBA

Power Handling (RMS)
120 W

Recommended Amplifier Requirements
30 – 120 W

Drive Unit Complement
1 x 8″ MMP II cone bass driver.
1 x 1″ (25 mm) C-CAM pivoting Gold Dome tweeter

Acoustic Configuration
2-way

Overall Dimensions (Including Grille (H x W))
Round: 251.7 mm (915/16″)
Square: 246.7 x 246.7 mm (911/16 x 911/16″)

Mounting Depth
99.4 mm (315/16”)

Cut-Out Hole Diameter
213 mm (83/8”)

Fixing Type
3 position Tri-Grip dog fixings

Connection
Gold plated ‘push’ type terminals

Grille Attachment
Magnetic

Construction Material
Mineral filled ABS, RoHS compliant

Weight
2.72 kg (6 lb)

Pre-Construction Bracket
CB6 Pre-Construction Bracket (Purple)

Back Box
CCBOX-R | CMBOX-R

C380-FX

Frequency Response
45 Hz – 30 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
90 dB

Maximum SPL
111.6 dBA

Power Handling (RMS)
120 W

Recommended Amplifier Requirements
30 – 120 W

Drive Unit Complement
8″ C-CAM cone bass driver featuring RST
2 x 1″ C-CAM fixed angle Gold Dome tweeters

Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Bipole / Dipole Switch with Additional 12v Trigger Switching

Overall Diameter (Including Grille)
285 mm (111/4″)

Overall Depth (Including Grille)
161 mm (65/16″)

Mounting Depth
157 mm (63/16″)

Cut-Out Hole Diameter
247 mm (93/4″)

Optional Square Grille – Outer Dimensions
285 x 285 mm (111/4″)

Fixing Type
3 position Tri-Grip dog fixings

Construction Material
Mineral filled ABS, RoHS compliant

Weight
3.2 kg (7 lb)

Pre-Construction Bracket
CB8 Pre-Construction Bracket (Green)

Back Box
CMBOX-R

Monitor MRW-10

System Format
Rear ported bass reflex cabinet

Lower Frequency Limit
30 Hz (-6 dB)

Upper Frequency Limit
Variable 50 – 120 Hz @ 24 dB/Octave

Amplifier Output
100 W RMS

Amplifier Classification
Class D with Switch mode PSU

Bass EQ Profiles
Music / Movie / Impact

Phase Control
0 – 180°

Auto Sensing
>3.5 mV

Input Level Requirements
Standby after approximately 15 minutes if no signal sensed

Drive Unit Complement
1 x 10″ MMP II long throw driver

Input Impedance
>20 K ohms

Mains Input Voltage
110 – 120 Vac – 50 – 60 Hz
220 – 240 Vac – 50 – 60 Hz. Selectable

Fuse Specification
110 – 120 VAC – T4AL/250VAC
220 – 240 VAC – T4AL/250VAC

Connection
2 x Stereo RCA, 1 x LFE RCA connection
12 V trigger (3.5 mm mono mini-jack)

External Dimensions (Including Grille and Feet (H x W x D))
336 x 320 x 350.6 mm (131/4 x 125/8 x 1313/16″)

Standby Power Consumption
<0.5 W standby

Weight
10.54 kg (23 lb 4 oz)

Additional information

Brand

Monitor Audio

System Configuration

5.1 Surround, In-Ceiling
