Monitor Audio – CP-WT240LCR – In wall speaker

Original price was: €455.Current price is: €299.

In stock

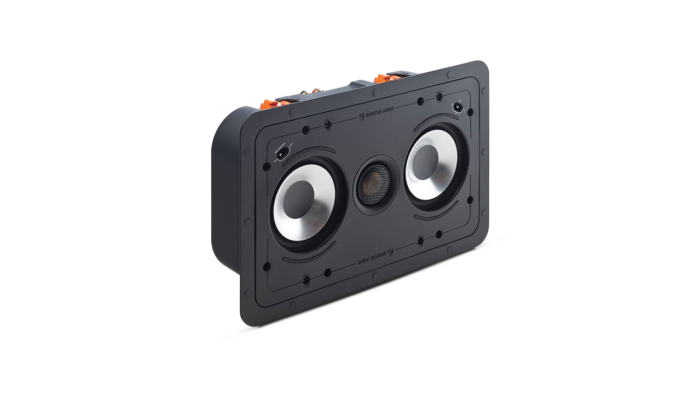

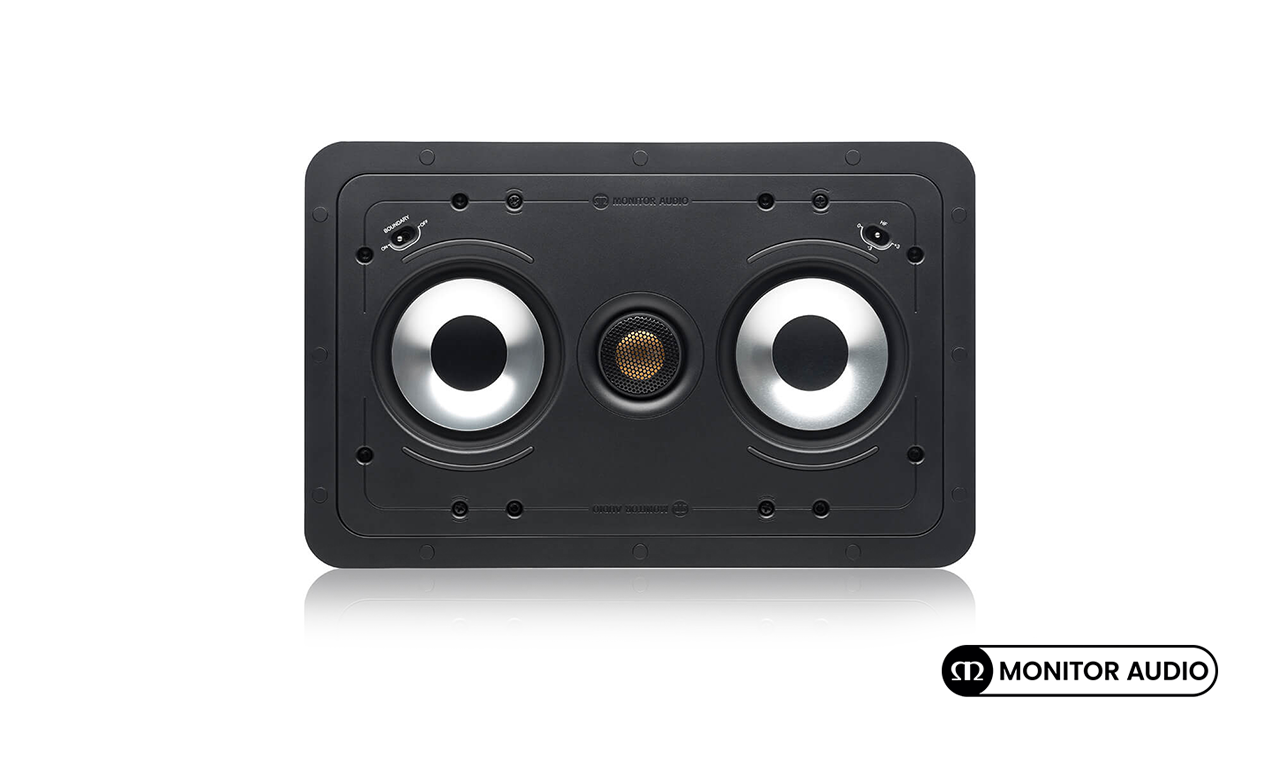

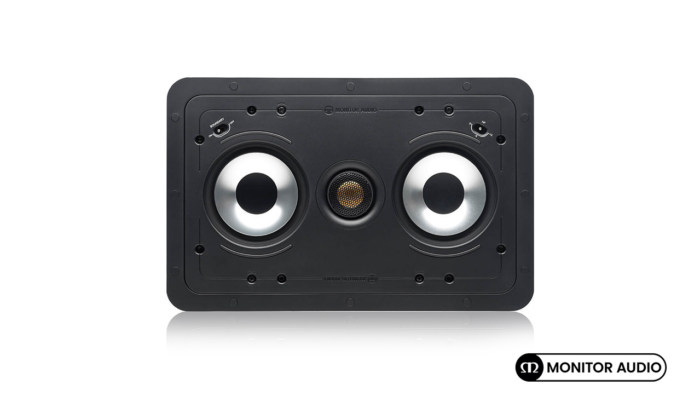

The CP-WT240LCR is a multi-purpose speaker, for portrait or landscape applications as a high performance music or theatre satellite.

In stock

Description

CP-WT240LCR - Technology

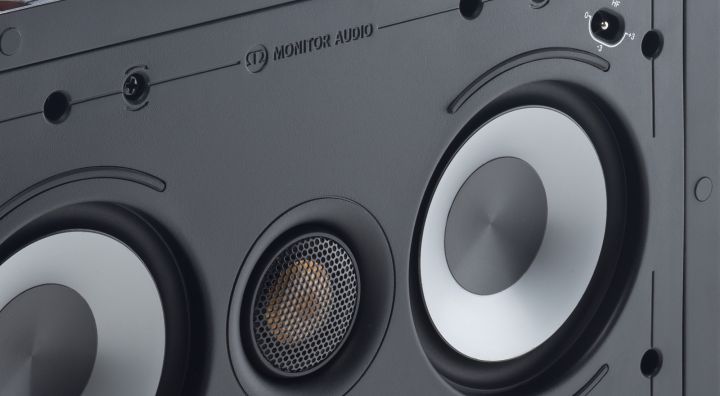

  • Pivoting C-CAM Gold Dome tweeter.
  • 2 x C-CAM bass drivers.
  • High overall efficiency.
  • High frequency level adjustment (+/-3 dB).
  • Boundary compensation controls.
  • Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

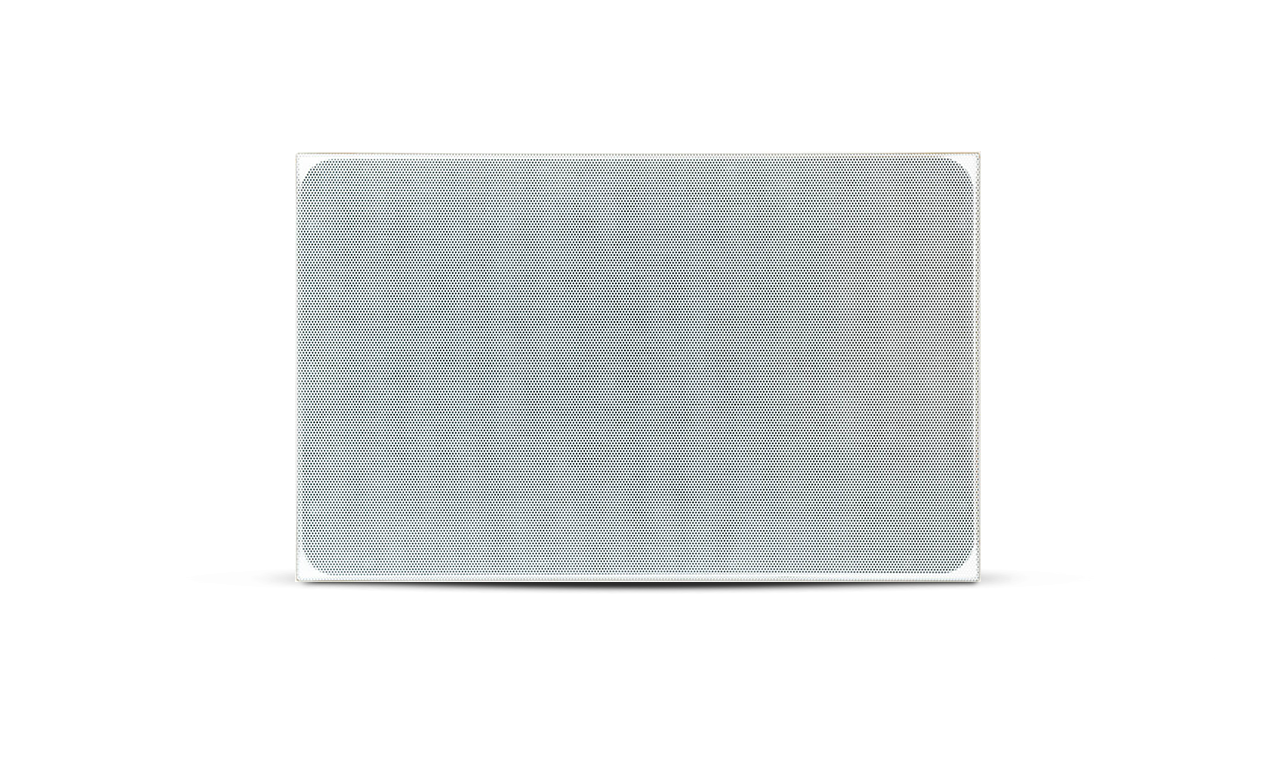

  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

Technical specifications

Frequency Response

60 Hz – 25 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

88 dB

Maximum SPL

108.8 dBA

Power Handling (RMS)

100 W

Recommended Amplifier Requirements

20 – 100 W

Crossover Frequency

2.6 kHz @ 12 dB / Octave

Drive Unit Complement

2 x 4″ C-CAM cone bass driver
1″ C-CAM pivoting Gold Dome tweeter

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch


Overall Dimensions (H x W x D)

217 x 333 mm (89/16 x 131/16“)

Overall Depth (Including Grille)

103 mm (41/16“)

Cut-Out Dimensions

183 x 299 mm (73/16 x 113/4“)

Mounting Depth

97 mm (313/16“)

Fixing Type

4 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled ABS Plastic (RoHS2 Compliant)

Weight

2.5 kg (5 lb 8 oz)

Pre-Construction Bracket

WB10 Pre-Construction Bracket (Light Brown)



Sold As

Single Unit

Additional information

Brand

Magnat

Speaker Type

In-Wall, Centre Speaker
