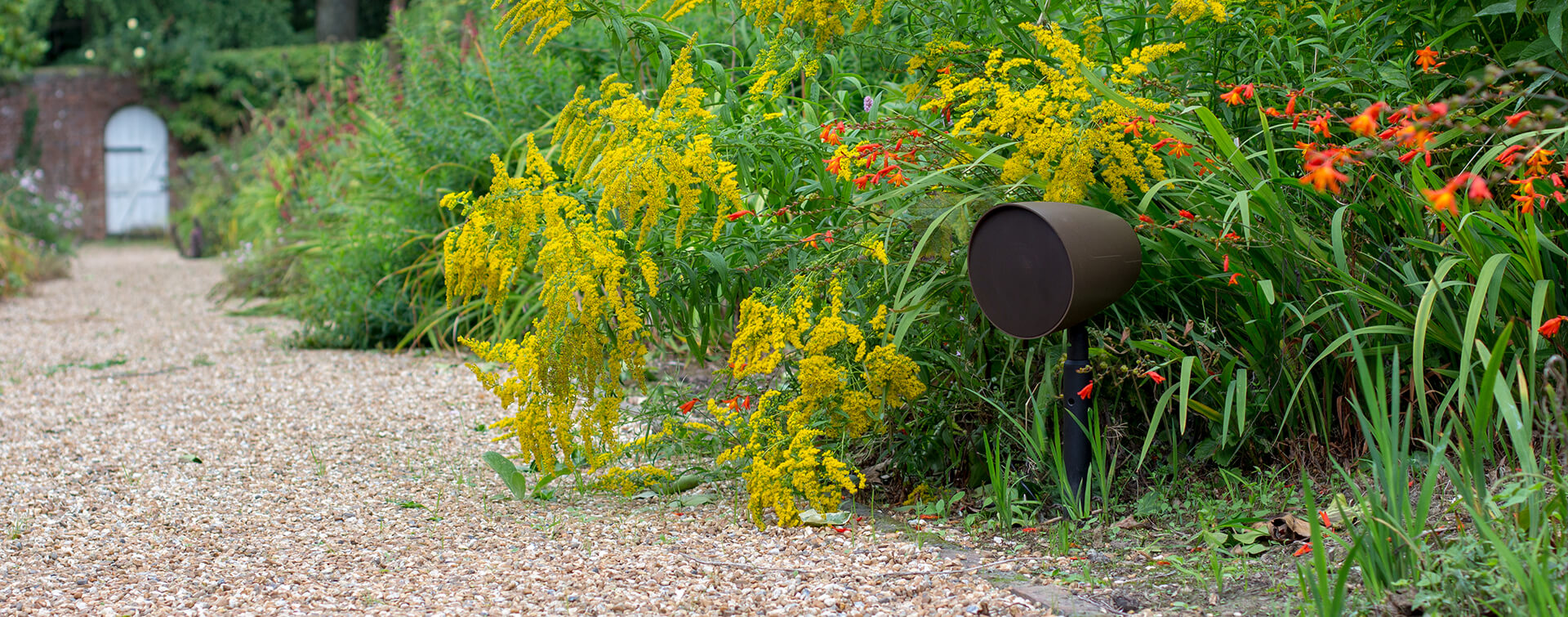

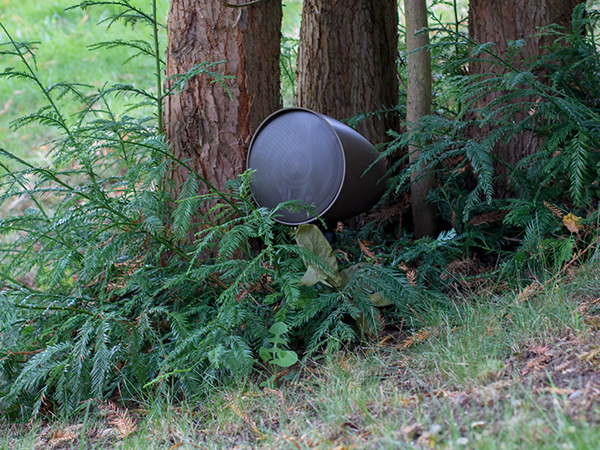

Suitable for ground-level installation within the garden, the CLG160 speaker features a rigid polymer shell that ensures it is resilient to extreme weather conditions.

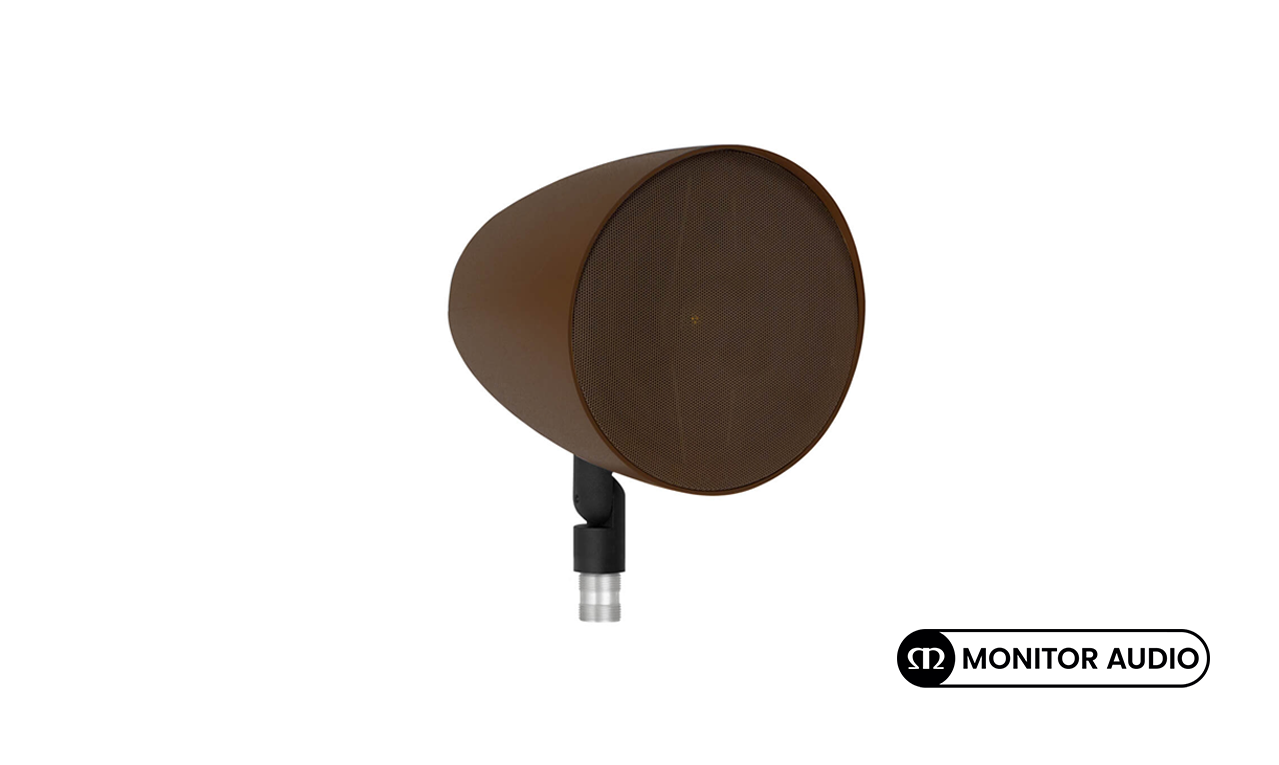

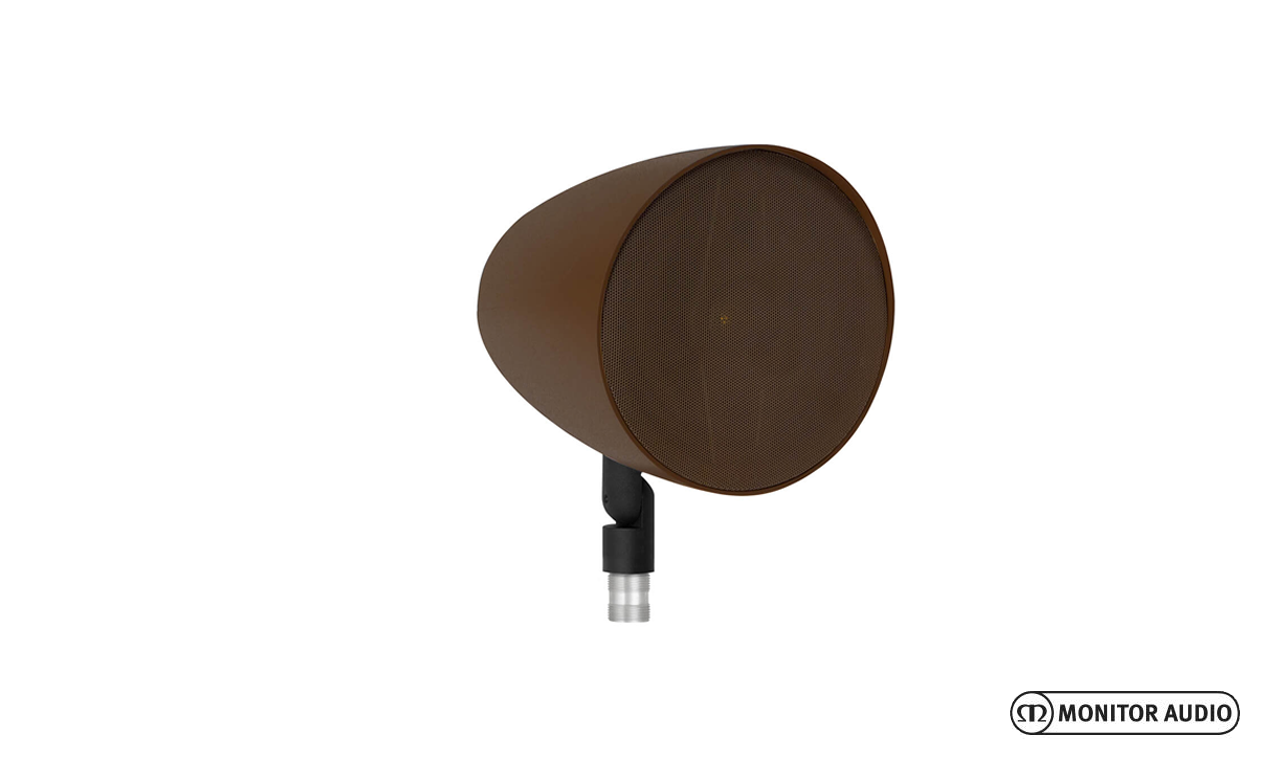

Monitor Audio CLG160 – Spike or On-Wall Speakers
€515
Call for availability
Call for availability
SEND EMAIL QUERYDescription
CLG160
Installation is simple, thanks to the requirement for the speaker to be wired in a mono configuration and powered by one amplifier channel. The other amplifier channel can be used to power the subwoofer. This configuration allows the levels between bass and mid-high range to be easily equalised. Alternatively, the system can be designed to provide stereo operation if desired by creating stereo left/right zones.
Despite being installed outside, the aesthetics of the speakers are just as important. Finished in dark brown, the CLG160 blends seamlessly into this environment to provide high-quality sound for outdoor entertainment, whilst not distracting from the landscape. The speaker casing can be painted a different colour, if required.
Key Features
- Purposely designed 6″ MMP II bass-mid range driver
- 25 mm C-CAM Gold Dome tweeter – coaxially mounted
- 70/100v line level operation –internal matching transformer

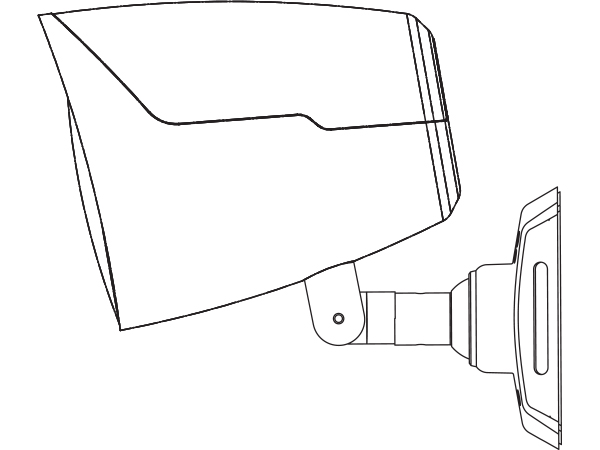

- Tree or pole mounting possible with additional fixings
- Garden spike (CLG-SPIKE R) and mount (CLG-MOUNT) are available separately
- PTC overload protection against power overload
Specifications
Frequency Response (-6 dB)
80 Hz — 30 kHz
Sensitivity (1W@1M)
89 dB
Line Level Voltage
70/100 Volt line level
Maximum SPL
107 dBA
Power Handling (RMS)
60 Watts (crossover set to minimum 80 Hz @12 dB/Octave)
Recommended Amplifier Requirements
10 — 60 W per speaker
Drive Unit Complement
1 x 6″ MMP II cone bass-mid driver
1 x 25 mm C-CAM Gold Dome tweeter – Coaxially oriented
Crossover Frequency
80 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)

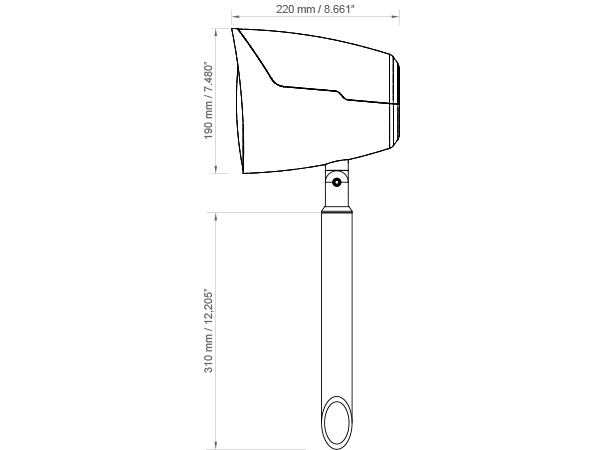

External Dimensions (Excluding Spike and Mount (H x W x D))
190 x 220 mm (71/2 x 811/16“)

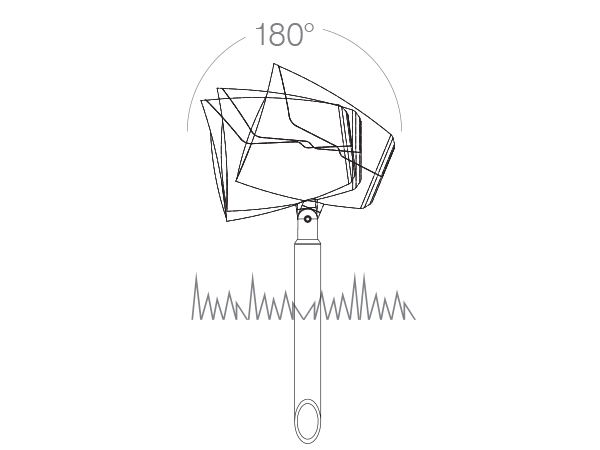

Total Bracket Pivot Angle
180 degrees
Connection
Encapsulated cable connection
Environmental Protection Rating
IP55
Operating Temperature Range
-20° to 70° C / -4° to 158° F
Colour / Finish
Dark Brown
Dispersion
60 degrees
Weight
2.76 kg (6 lb 2 oz)
Sold as
Single Unit
Additional information
| Brand | Monitor Audio |
|---|---|
| Speaker Type | Garden Loudspeaker, Water Resistant |
| Colour | Brown |
