Features surround mode selection of dipole (diffuse sound) or bipole (direct sound), 8-inch C-CAM RST bass driver 8-inch C-CAM bass driver and dual 1-inch C-CAM Gold Dome tweeters.
Description

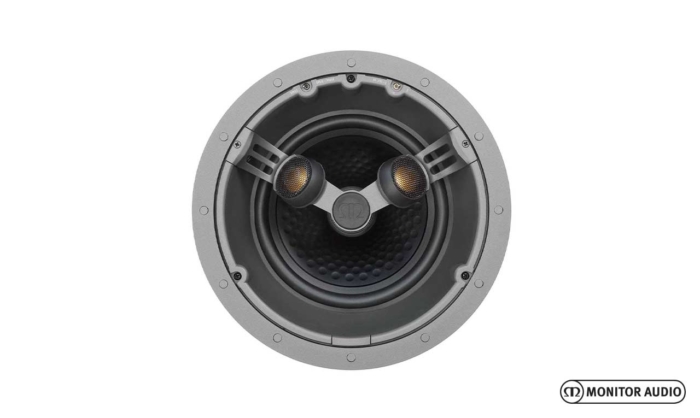

C380-FX Ceiling Speaker
Features surround mode selection of dipole (diffuse sound) or bipole (direct sound) operation for super-discreet home theatre sound.
Incorporates an 8-inch C-CAM RST bass driver 8-inch C-CAM bass driver and dual 1-inch C-CAM Gold Dome tweeters mounted at a precise fixed-angle for optimised performance.
Optional square grille can be used with this model.
This product is now available to use with home theatre design software, The CEDIA Designer.
Specifications
Frequency Response
45 Hz – 30 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
111.6 dBA
Power Handling (RMS)
120 W
Recommended Amplifier Requirements
30 – 120 W
Drive Unit Complement
8″ C-CAM cone bass driver featuring RST
2 x 1″ C-CAM fixed angle Gold Dome tweeters
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Bipole / Dipole Switch with Additional 12v Trigger Switching
Overall Diameter (Including Grille)
285 mm (111/4″)
Overall Depth (Including Grille)
161 mm (65/16″)
Mounting Depth
157 mm (63/16″)
Cut-Out Hole Diameter
247 mm (93/4″)
Optional Square Grille – Outer Dimensions
285 x 285 mm (111/4″)
Fixing Type
3 position Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
3.2 kg (7 lb)
Pre-Construction Bracket
CB8 Pre-Construction Bracket (Green)
Back Box
CMBOX-R
Sold As
Single Unit
Additional information
| Brand | Monitor Audio |
|---|---|
| Speaker Type | Ceiling |
