Magnat MA700 Amplifier

789

In stock

 Stereo high-end hybrid integrated amplifier

In stock

Description

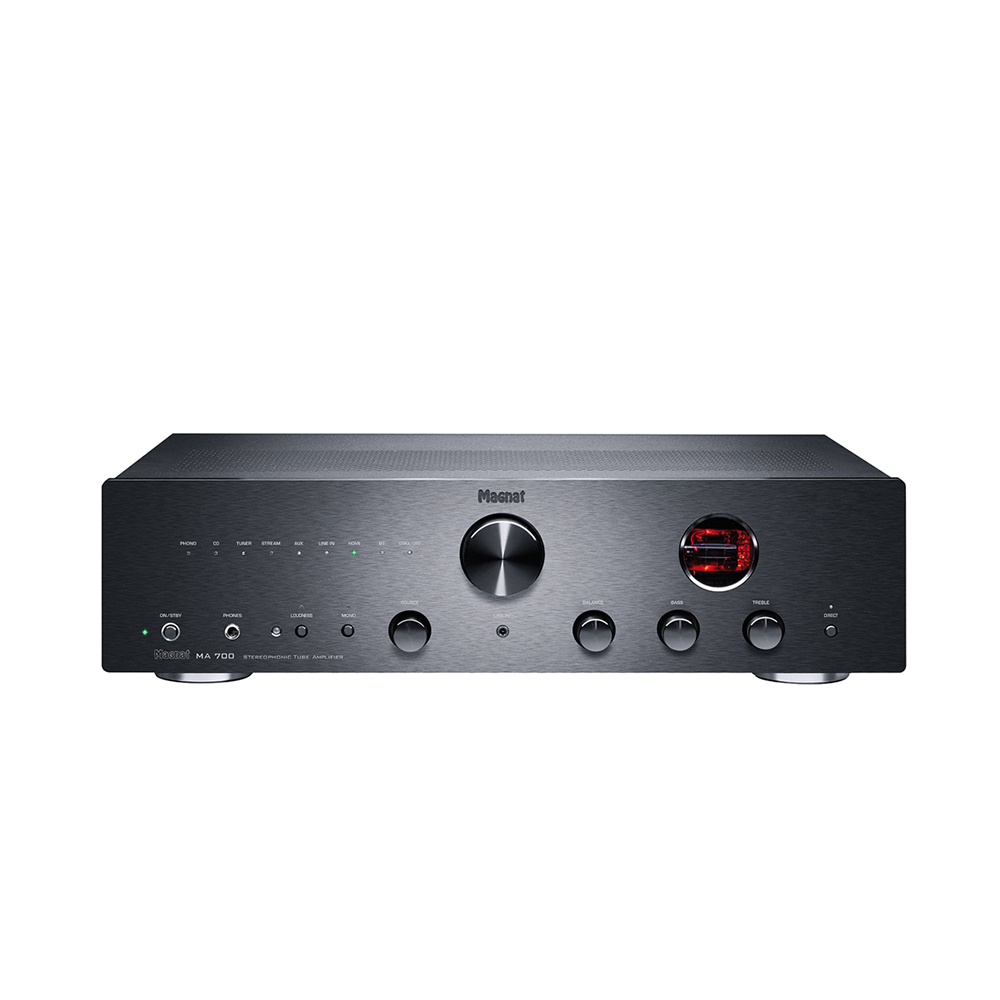

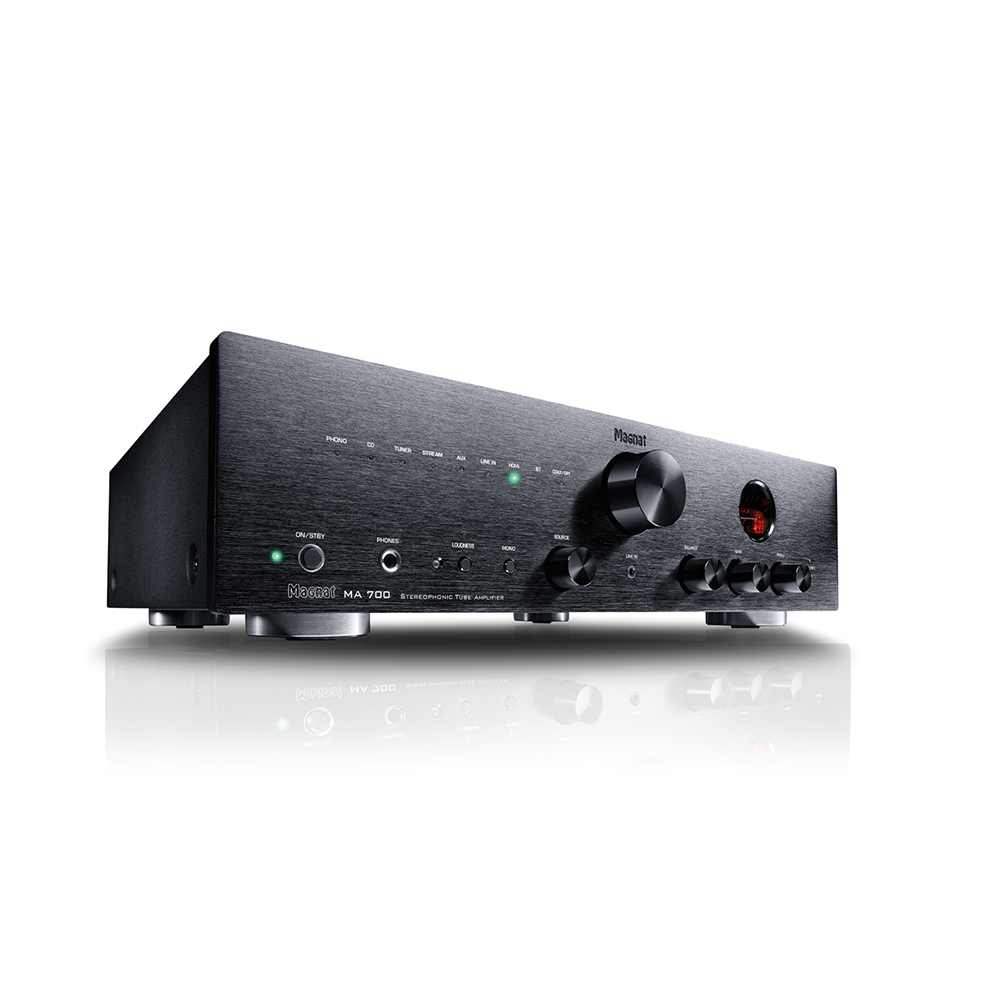

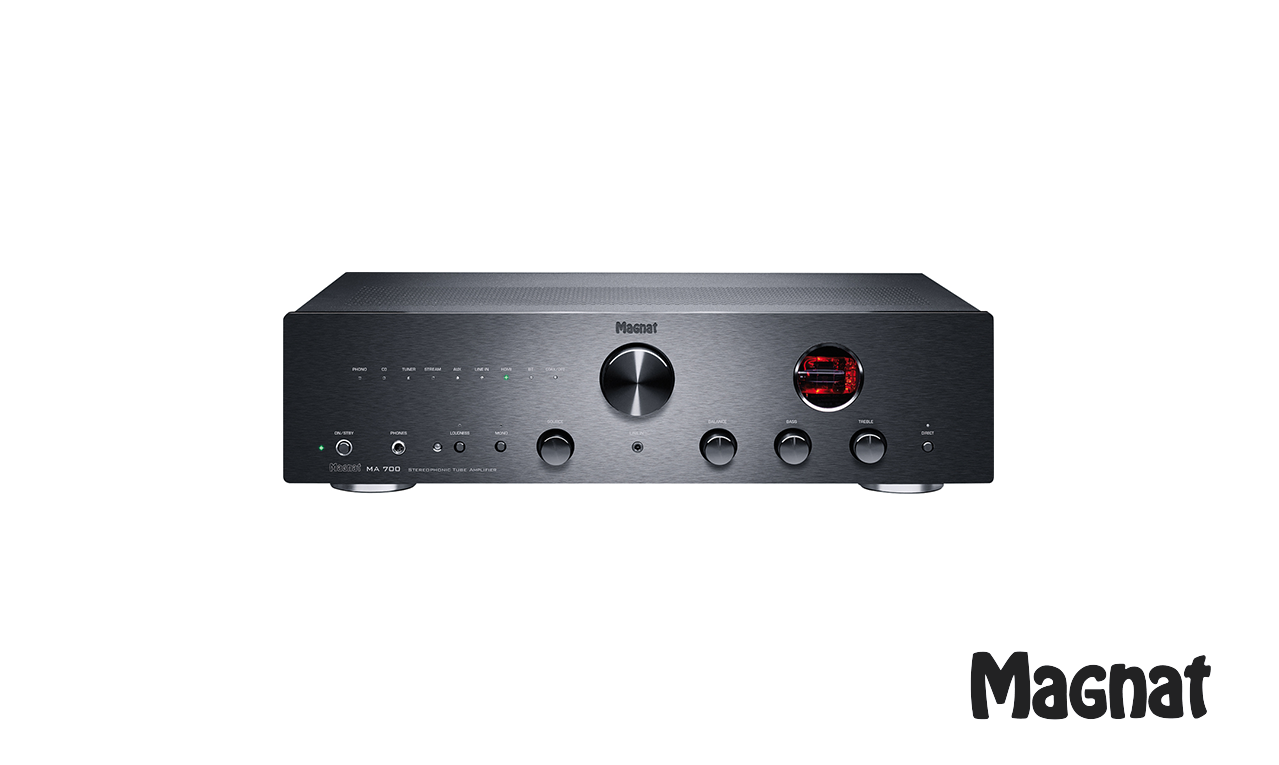

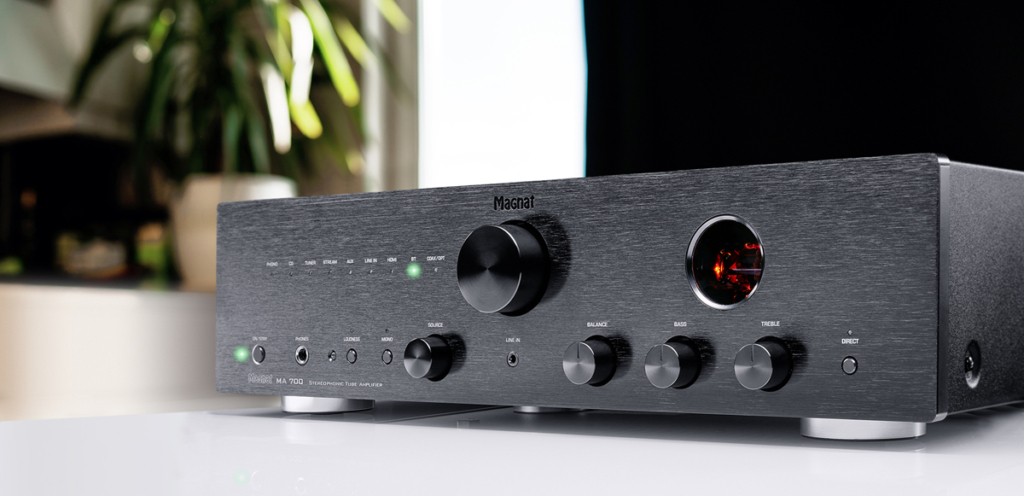

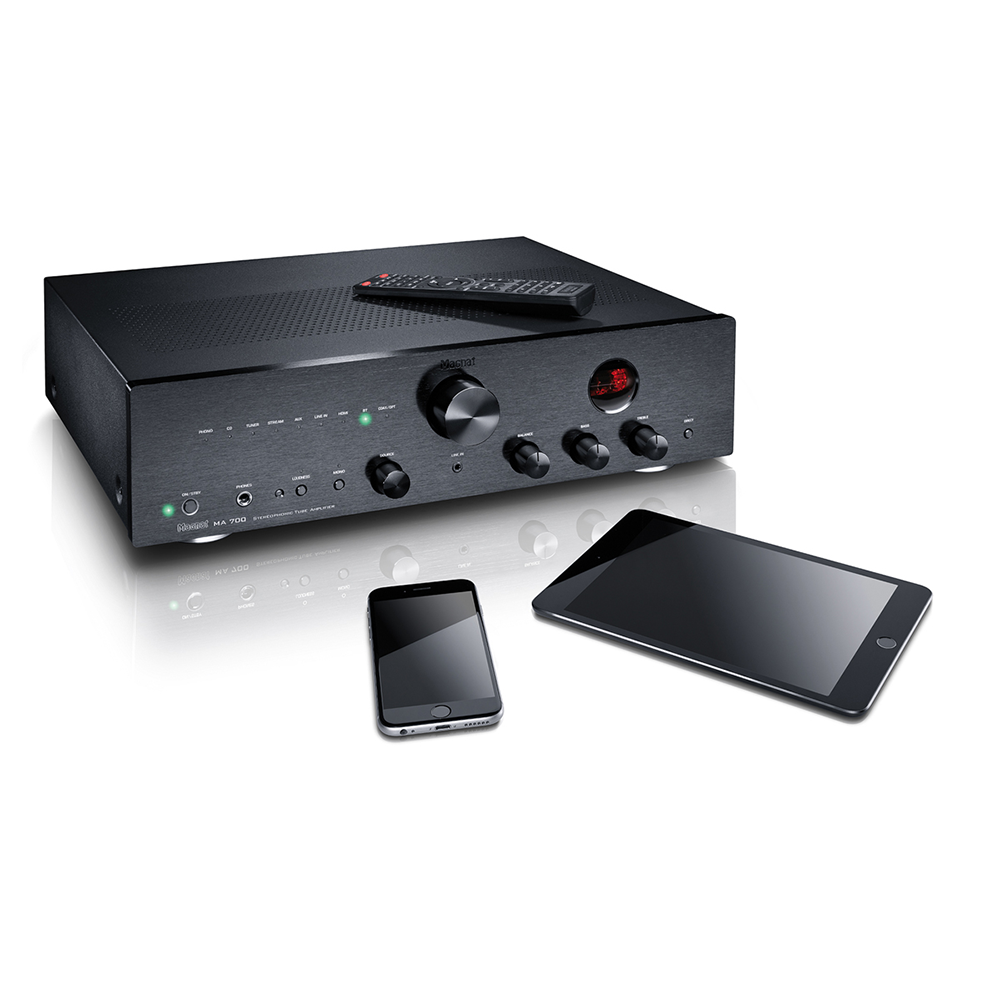

Magnat MA700

  • Sturdy metal housing with solid aluminum front panel and operating elements
  • Stereo hybrid amplifier with transistor and tube technology
  • HDMI input for seamless integration of TV and all connected sources
  • Selected tube already burned-in for the best sound
  • 2 x 70 watts RMS output, 250 watts system output
  • Extensive connections, digital, analogue and Bluetooth aptX

Magnat MA 700 - the pure doctrine of good sound

We are known for connecting things together and merging technologies. This is why our brand new MA 700 stereo amplifier offers the incomparable combination of tube technology for captivating sound and robust transistor power amplifiers, so that even larger speakers can be used without any problems. Beyond that, however, we have given the MA 700 everything it takes to be able to reproduce all your diverse media. In addition to all imaginable analogue and digital inputs as well as Bluetooth, this also includes an HDMI input. And that makes our amplifier a real all-rounder.

THE BEST OF BOTH WORLDS - TUBE SOUND AND TRANSISTOR PERFORMANCE

Anyone who knows us knows that we do not compromise. But doesn’t every technology have to make some concessions? Tubes sound fantastic because they generate harmonic waves that perfectly round off the sound. However, it is difficult to get enough power from them for demanding speakers. Transistor amplifiers do develop this power, on the other hand. That’s why we have combined the two. The low-noise tube preamplifier of the MA 700 features the now legendary ECC 81 double triode tube. This is carefully selected and “burned in” so that we can guarantee for each MA 700 that everything is perfectly coordinated for you to enjoy music for years to come. The powerful and highly efficient transistors then take care of amplifying the music signals – and do it properly. 70 watts of continuous power are available per channel. At its peak, the MA 700 delivers a system output of 250 watts.

MA 700 - THIS IS HOW TELEVISION CAN BENEFIT FROM TUBE SOUND

Every signal, whether from the five analogue inputs, two digital inputs or via the Bluetooth receiver with its lossless aptX standard, can enjoy the musical wellness treatment provided by the tube preamp – this is also true for the HDMI input. All digital signals first pass through an extremely high-quality D/A converter. An HDMI input on the stereo amplifier? But of course! If this is connected to the back-channel HDMI output on the TV set, which can be recognised by the abbreviation ARC, all audio signals from the TV and the connected sources then also go through the MA 700. That means tube sound for everyone, even for a connected game console or the set-top box. And as our HDMI input is CEC-capable, the volume can be easily controlled afterwards using the TV remote control.

MA700 DESIGN: REDUCED FOR FULL FOCUS ON MUSICAL ESCAPADES

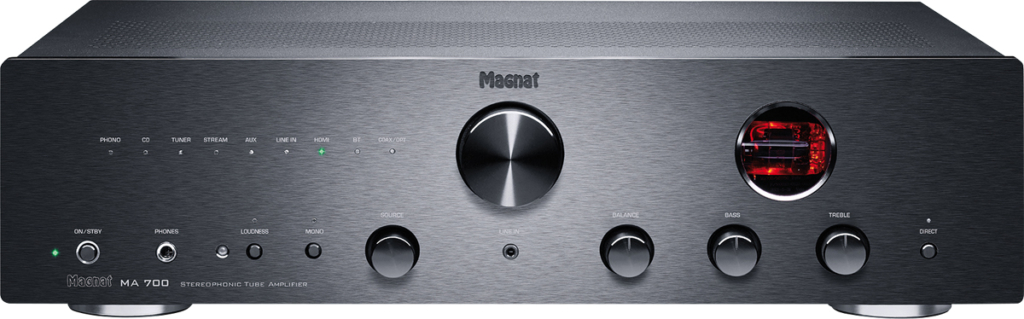

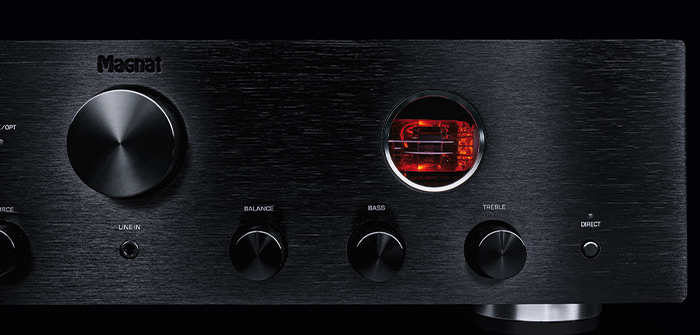

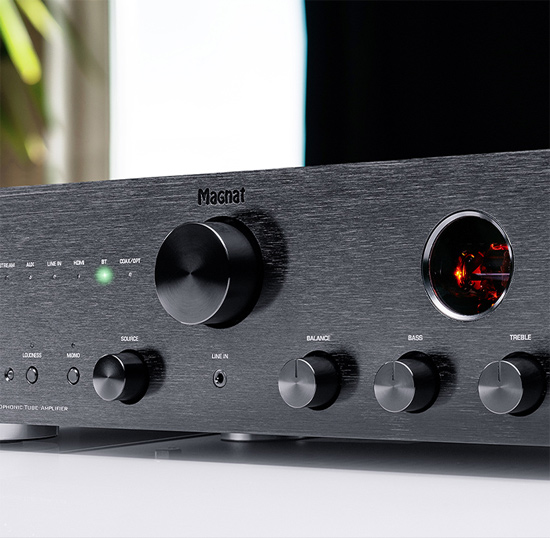

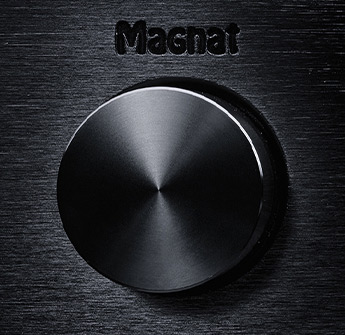

The design of the MA 700? Reduced to the maximum – after all, nothing should distract from the music, but instead prepare everything for it. The full metal housing is embellished by a solid aluminum front panel. Nine LEDs indicate the currently selected input. These can be dimmed in two stages. The controls, i.e. the rotary controls for input selection, balance, bass and treble, as well as the large-format volume control, are also made of solid aluminum. On the right side, the – in the truest sense of the word – optical highlight: The round window through which the tube glows magically. We have equipped the back of the MA 700 with solid speaker terminals

A HYBRID AMPLIFIER FOR ALL MEDIA

If you are enthusiastic about hi-fi components with classic dimensions, you no longer have to compromise on media suitability. Our MA 700 hybrid stereo amplifier combines the power of transistors with the sensitivity of tube technology. Added to this is the variety of connections up to and including Bluetooth 5.0 aptX and, as an absolute highlight, the possibility of bringing the TV set with all its sources into the hi-fi world via HDMI.



Technical Specification

Frequency Response

Subsonic Filter : 16 Hz, 18 dB/Oct., CD/Streamer/Aux/Line 5 Hz – 100 kHz (-3 dB) 20 Hz – 20 kHz (+/- 0,3 dB), Phono 20 Hz – 20 kHz (+/- 0,8 dB)

Power Consumption

Maximal 300 W, s0, 5

Digital Inputs

coaxial (cinch), optical (Toslink™), Supported bit depth: 16/24bits, Supported sampling frequencies: 44.1/48/88.2/96/176.4/192kHz

Bluetooth® Input

Bluetooth® 5.0 / Qualcomm aptX®

DIMENSIONS (WXHXD)

  • Remote Control: 45 x 175 x 20 mm
  •
  • Remote Control: 45 x 175 x 20 mm
  •
  • Main unit: 433 x 116 x 300 mm

Highlights

Amplifier and power supply

  • Power output: 70 watts of sine power per channel at 4 ohms and 250 watts of maximum pulse power
  • High-capacity filter/electrolytic capacitors
  • Standby power supply for low power consumption in standby mode < 0,5 watts
  • Shielded toroidal transformer
  • Elaborate mains adapter with separately stabilised supply voltage for the individual circuits
  • Discrete Class A/B power amplifier

BLUETOOTH® INPUT

  • Bluetooth® 5.0 / Qualcomm aptX®

Highlights

  • Sturdy full-metal enclosure with solid, brushed aluminium front
  • Switchable loudness function (aurally compensated volume correction)
  • Display of the selected input via LEDs with with dimming function (2 stages)
  • Solid aluminium controls
  • Speaker terminal with solid, insulated screw terminals that are capable of accommodating large cable cross-sections
  • Stable feet with damping rubber insert
  • Mono switch (for analog sources)
  • System remote control for all functions
  • Headphone output with high-quality 6.3 mm jack socket

Preamplifier

  • Record Out fixed level output
  • Record Out fixed level output
  • HDMI® with ARC and CEC function (volume can be controlled via TV remote control)
  • Bluetooth® input (5.0) supports the high-end audio standard Qualcomm aptX®
  • Four analogue high-level inputs
  • Two digital inputs for sampling frequencies up to 192kHz/24bits
  • High quality digital-to-analogue converter
  • High/low tone control, can be switched off via a direct function
  • Sub out connecting for use of an external active subwoofer
  • Low-noise tube preamplifier with ECC 81 tube
  • Additional 3.5 mm audio input on the front panel for connecting portable devices
  • MM-phono preamplifier with low-noise operational amplifiers and subsonic filters
  • Preselected and burned-in tubes

Technologies

FEATURES AND SPECIAL FEATURES OF THIS SERIES

Digital Inputs

Free choice of connection
magnat-pictos2017_alu-front

Solid aluminuim front panel

magnat-pictos2017_selected-valves

Low-noise preamplifier tube

magnat-pictos2017_mm

MM Phono Pre-stage

Inputs for MM record players

Additional information

Brand

Magnat

Product Type

Stereo Amplifier
