Magnat Bulldog 7 – High Power Active Party Speaker

899

Call for availability

With more than 120 dB and up to 20 hours of playing time away from the power outlet, the Bulldog 7 is a safe bet for a good mood and more than deserves our animal logo as its name.

Call for availability

SEND EMAIL QUERY

Description

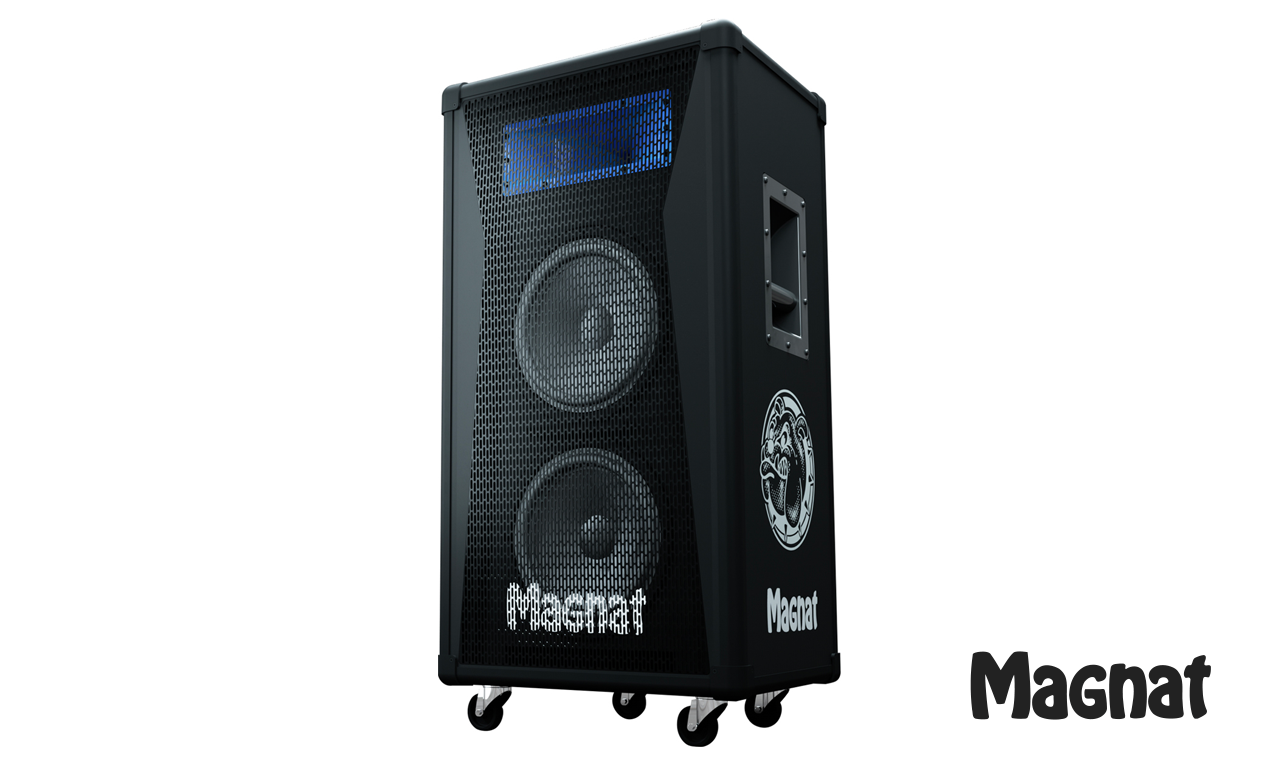

Magnat Bulldog 7

THE PARTY IS WHERE YOU ARE

  • Active Bluetooth event loudspeaker with mains and battery operation
  • Class D amplifier with 260 watts RMS and 520 watts of maximum power output
  • Solid professional quality outdoor housing with integrated handles and transport casters
  • Extremely resilient chassis for powerful sound
  • Integrated mixer with 3 channels and tone control
  • Bluetooth 5.0 for easy connection to smartphones and tablets
  • Two Bulldog 7s can be connected to each other by cable
Magnat Bulldog 7
Magnat Bulldog 7

THE PARTY IS WHERE YOU ARE

It‘s a loudspeaker like no other: Active, powerful, network independent and mobile. The Bulldog 7 turns every location into a party zone. On the beach, at a festival, in a holiday home or simply in your own home. With more than 120 dB and up to 20 hours of playing time away from the power outlet, the Bulldog 7 is a safe bet for a good mood and more than deserves our animal logo as its name. And hey, if you value understatement, simply say you’re bringing the ultimate Bluetooth speaker with you. We‘d love to see the faces of the other party people.

Magnat Bulldog 7

NO PARTY WITHOUT A DJ

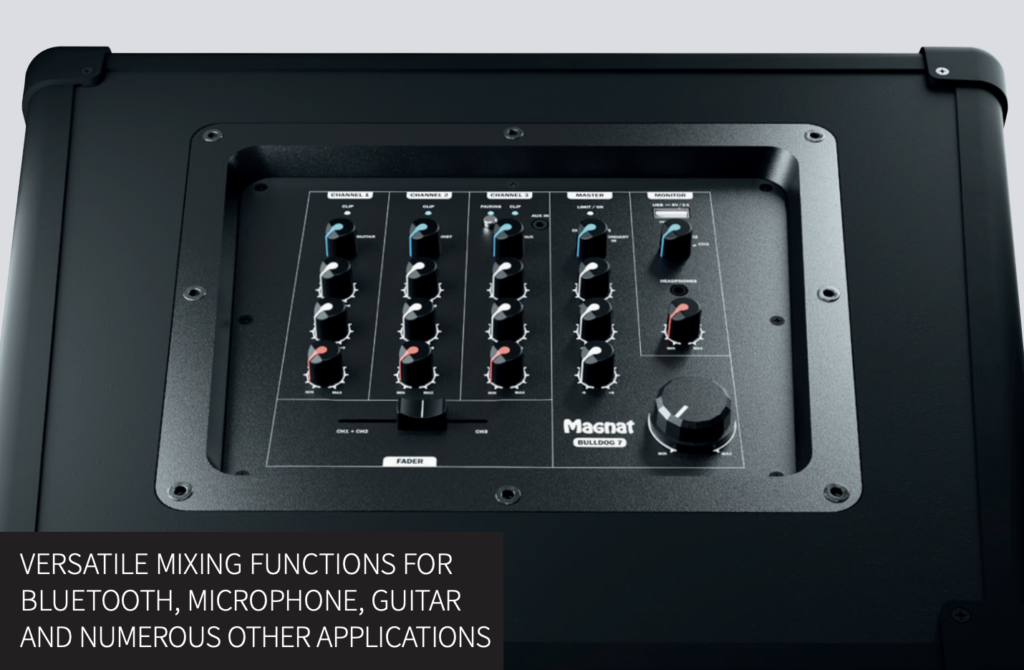

And that brings us to the 3-channel mixer with crossfader. A microphone or instrument can be connected to channel 1. Channel 2 can also be used for instruments or as line-in – even in stereo. And channel 3 offers the option of docking everything from smartphones to any other source via Bluetooth 5.0 or the Aux input directly on the mixer. The crossfader allows a quick change between channel 3 and the other inputs. For example, a microphone and music can be cross-faded intuitively.

THE BULLDOG 7 IS THE GO-ANYWHERE SPEAKER

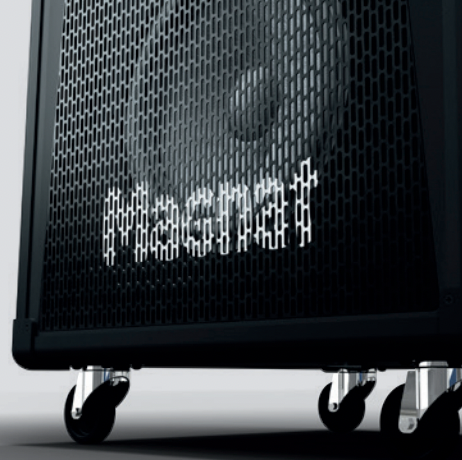

Admittedly, 35 kilos needs to be moved first. However, we have provided the Bulldog 7 with four sturdy transport casters. Two of them can be locked with a parking brake. This makes it easy to get the speaker out of the boot and move it to any conceivable location, where it will then not move from the spot any more. Support for sports teams? Check. Serious PA for the school party? Check. The right sound for your band? Naturally. Party on the beach? Okay, you have to lend a hand over the last few meters.

THE HOUSING? A STATEMENT

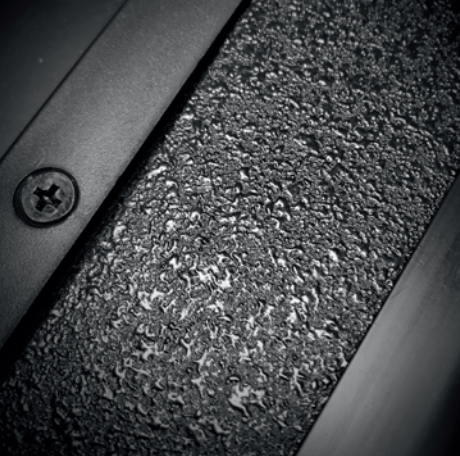

If anything stands for resilience in everyday life, then it’s the housing of the Bulldog 7. We have finished the multi-braced MDF case with an impact-resistant textured paint, just like professional stage equipment. The loudspeaker does not scratch so quickly and moisture can hardly do any harm to it. So you don‘t have to keep a constant eye on your valuable equipment at parties. We have fitted sturdy protective profiles to all the edges so that they can withstand occasional bumps.

THE TECHNOLOGY? TYPICAL MAGNAT

Whether it‘s a party, concert or barbecue: “Rev it up” is the motto. The integrated 2-channel high-performance amplifier with efficient Class D technology ensures plenty of performance. With an impressive 260 watts of continuous output and more than 500 watts of peak output, it powers the compression horn driver as well as the two dynamic woofers. The latter measure 10 inches each, i.e. a good 25 cm, and deliver bass right down to 35 Hz. The tweeter horn operates easily up to 22 kHz with its 35 mm driver.

THE BULLDOG – OUR BRAND SYMBOL

The bulldog has a long tradition in our company. It has been a distinguishing feature of many of our products since the 1990s, including car audio and speakers. With the mobile and active high-power speaker standing for enjoyment of music like hardly any other product, the character’s head is placed in the best possible position on the Bulldog 7.

OPERATION

  • 3-channel DJ mixer with crossfader
  • Channel 1: Microphone/guitar (mono)
  • Channel 2: Line IN/instrument (stereo)
  • Channel 3: Bluetooth and AUX (stereo)
  • Crossfader channel 1/2 – channel 3
  • 2-band equalizer (+/- 8dB) and volume control for each channel
  • Master volume and master 3-band equalizer (+/- 8dB)
  • Separate clipping indicators (LEDs) for each channel and the master channel
  • Headphone jack with monitor/pre-listening function and volume control
  • Connection of a 2nd Bulldog 7 unit (primary/secondary configuration)

CHASSIS

  • High-performance compression horn driver with 1 3/8“ voice coil and 10“ X 4“ mm radial horn tweeter
  • 2 x 10“ high-performance woofers with 2“ voice coil

HOUSING

  • Multi-braced 18 mm MDF housing
  • Impact-, moisture- and scratch-resistant textured finish
  • Sturdy edge protection profiles and corner protectors
  • Two side-mounted metal heavy-duty carrying handles
  • Sturdy solid metal speaker grille with slotted design
  • Four transport casters (each are capable of supporting a 50 kg load, two of which feature a locking function) are included in the scope of delivery

AMPLIFIER & CONNECTIONS

  • 2-channel Class-D high-power amplifier
  • Channel 1: Microphone/guitar (mono); 6.3 mm jack and XLR
  • Channel 2: Line IN/instrument (stereo); 6.3 mm jack, XLR and RCA
  • Channel 3: Bluetooth and AUX (stereo); 3.5 mm jack (BT Version 5.0)
  • Primary/secondary input/output; XLR (the primary has full control over the secondary!)
  • Charging of the internal battery when connected to the mains supply
    (separate switch)

BATTERY

  • 18V 5.2 Ah li-ion battery
  • 94 Wh capacity
  • Up to 20 hours of operation, depending on the volume; approx. 6 hours when operated at high volume
  • Battery charging time: approx. 6 hours
  • 6 LED battery charge status display
  • Easy battery change.
  • Charging function of the battery in the Bulldog 7 unit

Technical specifications

PRINCIPLE
2.5-way bass reflex, powered

EQUIPMENT
1x 1 3/8” horn-tweeter 2x 10” woofer

POWER HANDLING (RMS/MAX)
250 watts RMS, maximum power on demand + 500 watts

FREQUENCY RESPONSE
38 – 22.000 Hz

CROSSOVER FREQUENCIES
100Hz / 4500Hz

BATTERY
18V 5.2 Ah li-ion battery
94 Wh capacity
Up to 20 hours of operation,depending on the volume; approx. 6 hours when operated at high volume

SOUND PRESSURE
up to 126dB (122 dB(A)/1m)

BLUETOOTH
Version 5.0

MAINS VOLTAGE
100 – 240 V

CABINET SURFACE
Black textured lacquer

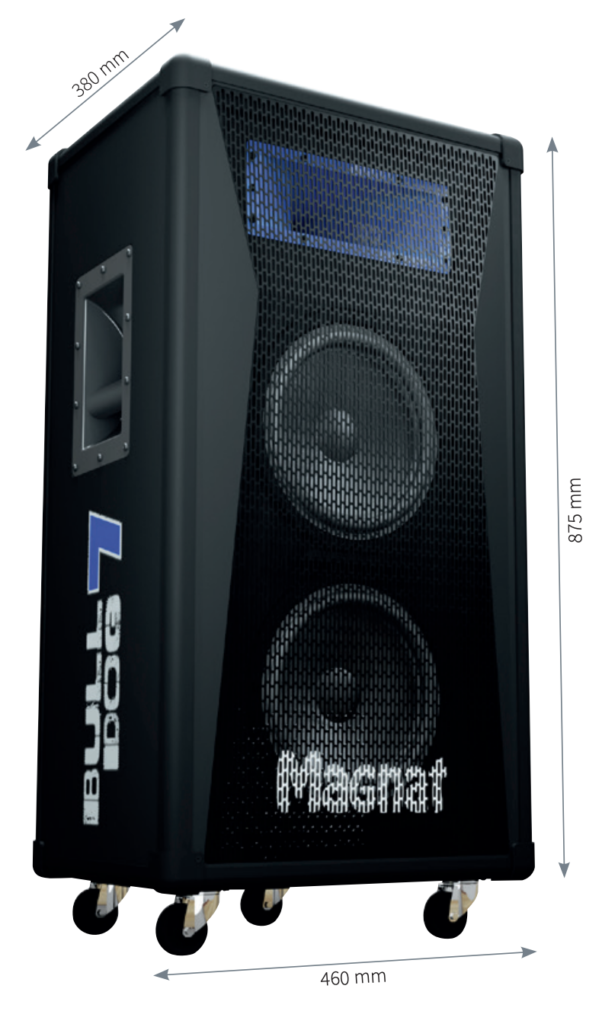

DIMENSIONS (WXHXD)
460 x 875 x 380 mm

WEIGHT
35 kg

ART.NO. /EAN
175 3100 / 40 18843 53100 7
