JBL Synthesis SDA-7120

4,599

The SDA-7120 is a high-performance 7-channel Class G power amplifier designed to deliver audiophile performance and incredibly powerful dynamics. Each channel is rated to deliver 100W into 8 ohms and 140W into 4 ohms with all channels driven.

SEND EMAIL QUERY

Description

JBL SDA-7120

7-channel Class G Amplifier

The SDA-7120 is a high-performance 7-channel Class G power amplifier designed to deliver audiophile performance and incredibly powerful dynamics. Each channel is rated to deliver 100W into 8 ohms and 140W into 4 ohms with all channels driven. With only two channels driven, 225W of power is on tap with a 4-ohm load. This combination of high power and low distortion makes this the ideal solution for LCR and surround loudspeakers in JBL Synthesis immersive audio systems. DANTE digital audio networking allows connection of the SDA-7120 to a compatible DANTE-enabled surround processor via just a single Ethernet cable and full external control allows for complete and easy system integration.

JBL SDA-7120 FEATURES

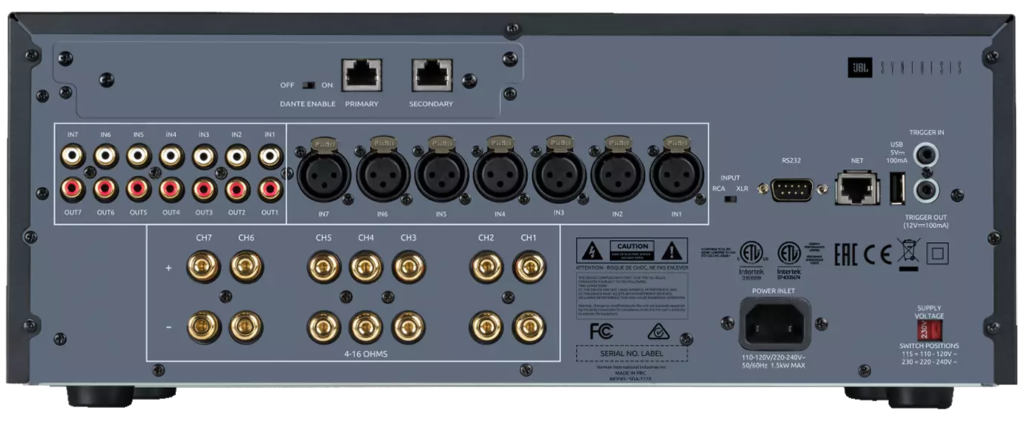

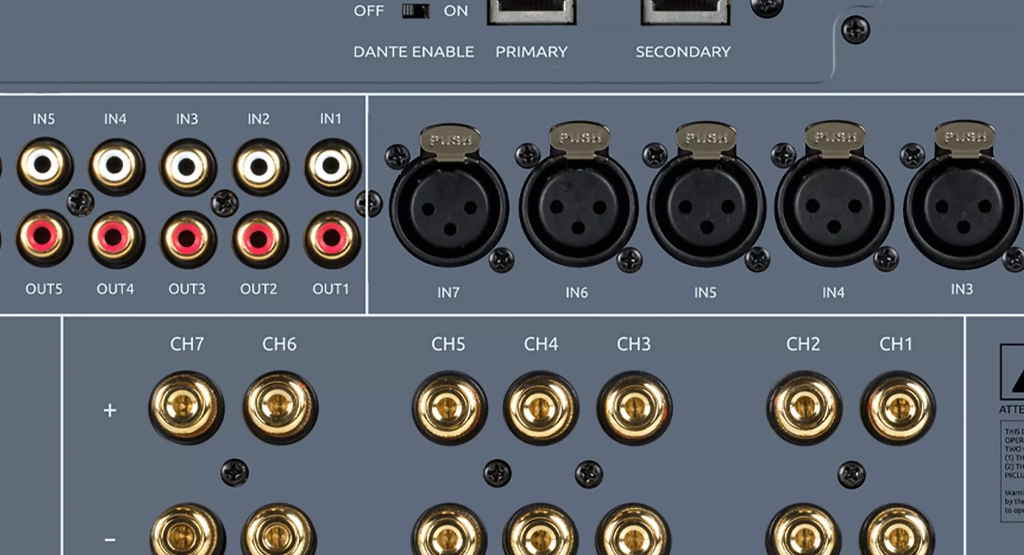

  • BALANCED AND UNBALANCED ANALOG INPUTS VIA XLR AND RCA CONNECTORS
  • DANTE™ DIGITAL AUDIO NETWORKING
  • 12V TRIGGER, IP AND RS-232 THIRD-PARTY CONTROL

100WPC INTO 8 OHMS, 140WPC INTO 4 OHMS

BINDING POST SPEAKER TERMINALS

General Specifications

Seven channels driven, 4Ω / 8Ω, 20Hz – 20kHz140W / 100W
Two channels driven, 4Ω / 8Ω, 1kHz225W / 140W
Input sensitivity 50W / 8Ω800mV RMS (RCA Type), 1.6V RMS (XLR Type)
Input impedance10kΩ
Mains voltage110–120V or 220–240V, 50–60Hz
Dimensions W x H x D (including feet, control knob and speaker terminals)433 x 425 x 177mm
Weight (gross)19.7kg
Five channels driven, 4Ω / 8Ω, 1kHz175W / 110W
Harmonic distortion, 80% power, 8Ω at 1kHz0.002%
Signal/Noise ratio (A-wtd) 50W / 8Ω105dB
Frequency response20 – 20kHz +/-0.05dB
Maximum power consumption1.5kW
Weight (net)18kg

Additional information

Brand

JBL

Product Type

Stereo Amplifier

Amplifier Connectivity

7 Channel, HDMI, Network Port, USB
