The JBL Studio 610 is a high-performance on-wall loudspeaker utilizing JBL’s compression driver mated to a High-Definition Imaging horn.
JBL Studio 610
JBL Studio 610
5.25-inch, 2-way On-wall Loudspeaker

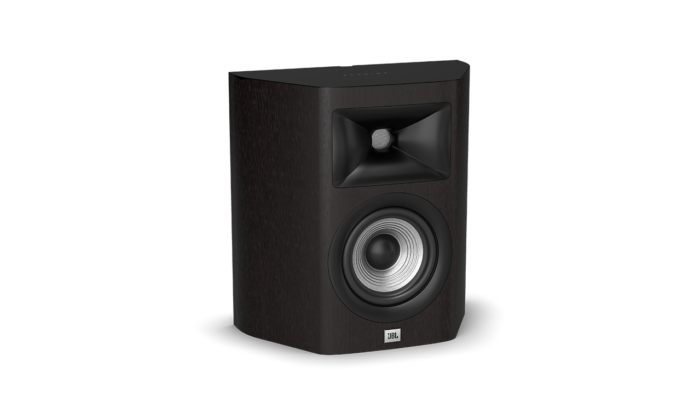

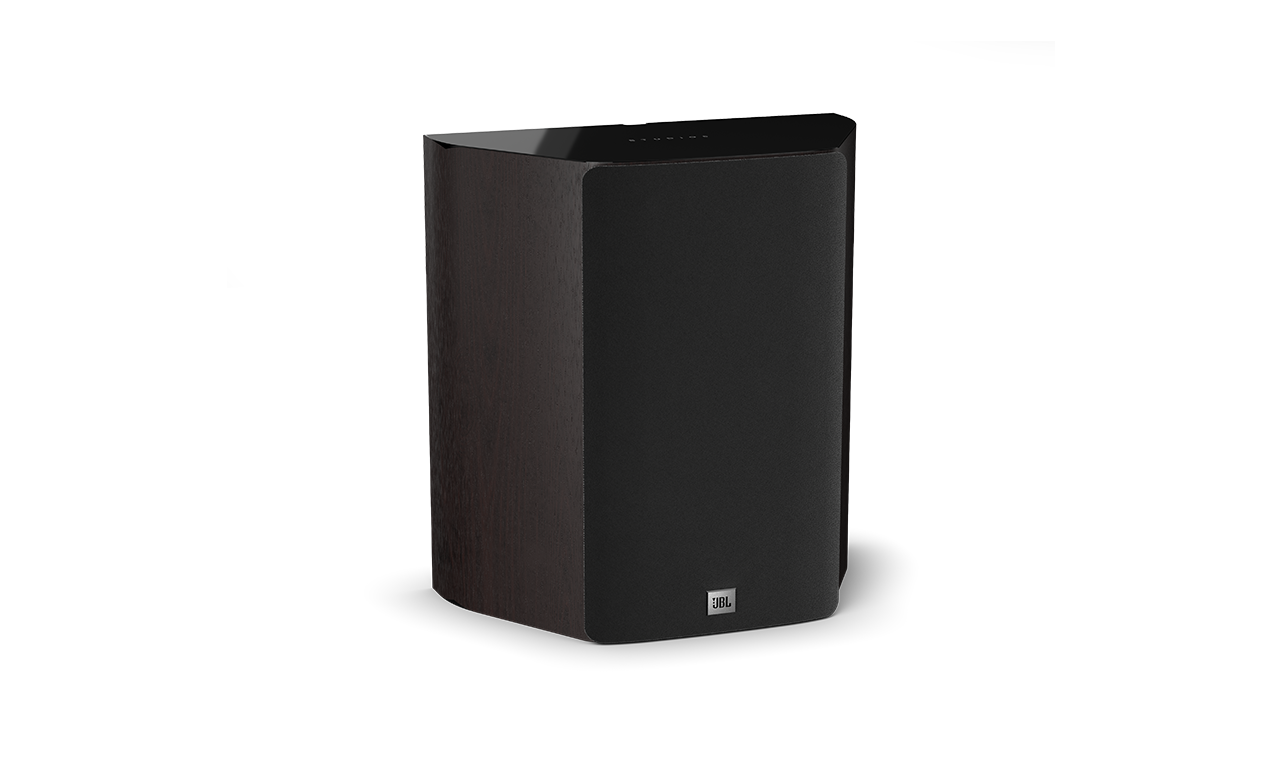

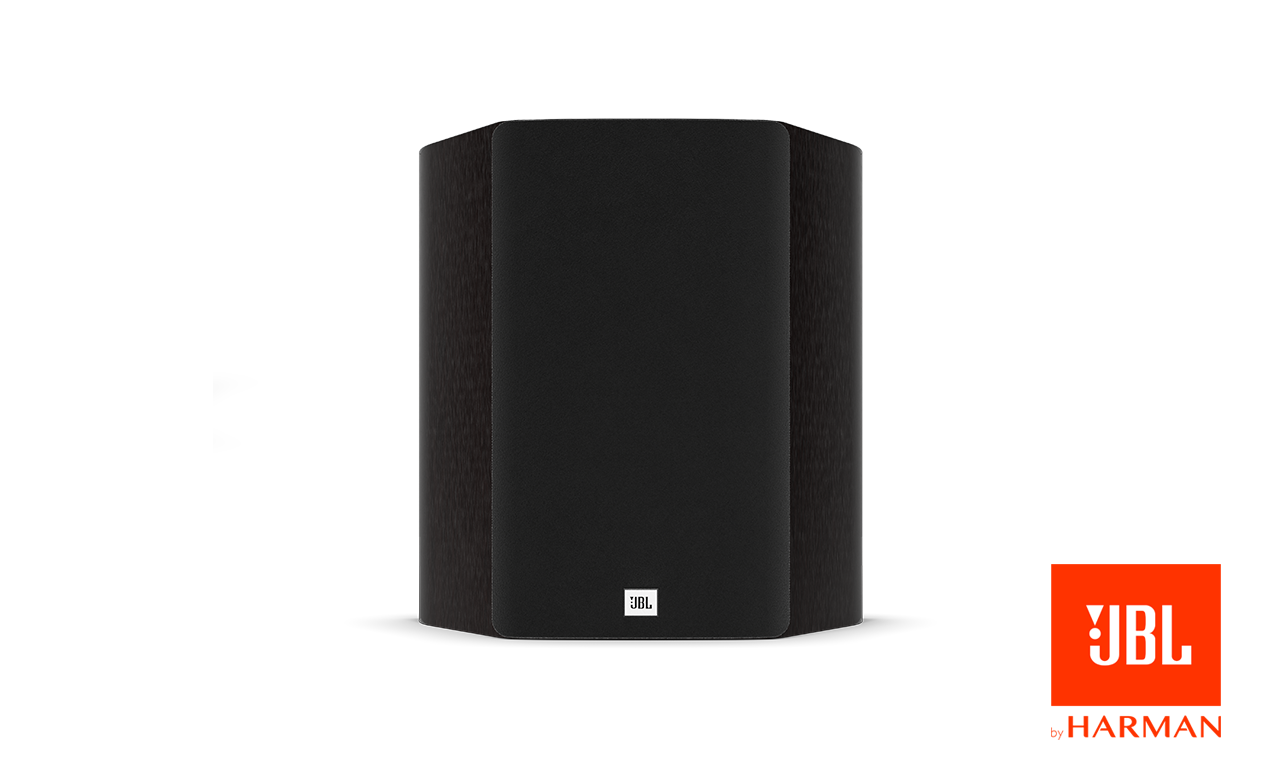

The JBL Studio 610 is a high-performance on-wall loudspeaker utilizing JBL’s 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented by a 5.25-inch PolyPlas cone woofer. The elegant cabinet design includes a magnetically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.
Top-graded PolyPlass cones
High-quality sounding compression drivers
New, appealing form factor
HIGH-DEFINITION IMAGING WAVEGUIDE WITH HIGH-FREQUENCY COMPRESSION DRIVER
The new JBL Studio 6 speaker system is everything your inner audiophile was hoping for. Complete with advanced PolyPlas cones, powerful acoustics speaker drivers, and fitted with an all-new, high-definition imaging waveguide using a high-frequency compression driver, your home listening experience will never be quite the same.
Single 5.25″, 2-way compression driver wall-mountable surround loudspeaker
5.25″ (133mm) PolyPlas Low-Frequency Woofer
High Definition Imaging (HDI) Waveguide with 1” (25mm) High-Frequency Compression Driver
Recommended Amplifier Power Max 100W
Frequency Response 65Hz – 40kHz
Sensitivity 84dB @ 1M, 2.83V
Nominal Impedance 6 Ohms
Crossover Frequencies 2.4 kHz
Enclosure Type Sealed Enclosure
Dimensions (W x D x H) 250 x 135 x 300mm
