JBL Studio 6 Theater In Wall HDI Speaker


In stock

Features four 5-1/4″ woofers with a central High Definition Imaging (HDI) waveguide mated to a 1″ high-frequency compression driver for full-sound with tight, clean bass and smooth, dynamic highs.

In stock

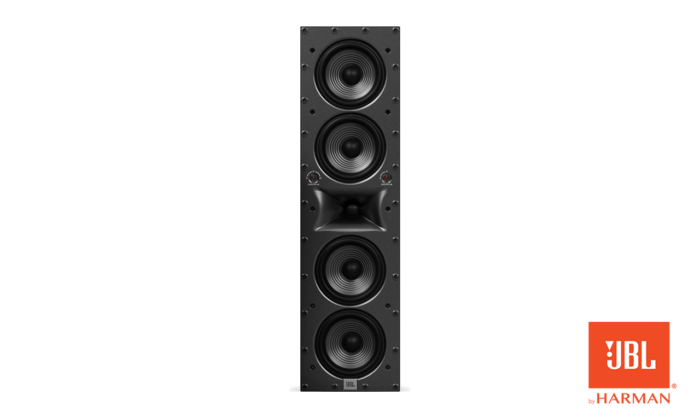

JBL Studio 6 Theater

In-wall speaker

Expansive sound from a stealthy in-wall speaker

If you’re planning a custom-installed home theatre system, check out JBL’s Studio 6 Architectural Theater in-wall. This high-quality in-wall speaker produces engaging sound without taking up any floor space.

Use a pair of the Studio 6 Theaters flanking your wall-mounted TV in a cinema-grade JBL surround sound system.

Adjust the sound to your space

This speaker uses four 5-1/4″ woofers with a centrally placed High Definition Imaging (HDI) waveguide mated to a 1″ high-frequency compression driver for full sound with tight, clean bass and smooth, dynamic highs.

Independent level-control knobs for the tweeter and woofer on the front baffle let you adjust output to suit your room’s acoustics.

Born from JBL’s storied audio heritage

JBL famously pioneered horn-loaded compression drivers in speaker arrays at large concert venues — they’re able to fill space with clear sound in a way a standard dome tweeter can’t.

The cornerstone of JBL’s Studio 6 Series’ distinctive sound is JBL’s 1″ compression driver mated to a High-Definition Imaging (HDI) horn. This proprietary design helps this speaker deliver optimum sound quality throughout your room.

JBL Studio 6 Theater HIGHLIGHTS

  • ideal for use in a custom-installed home theatre or in-wall stereo music system
  • four 5-1/4″ Polyplas® woofers
  • High Definition Imaging (HDI) waveguide with 2414H-1 1″ high-frequency compression driver
  • independent front-baffle tweeter and woofer level controls
    • tweeter: ±3dB
    • woofer: 0/-3dB
  • frequency response: 65-20,000 Hz
  • recommended amplifier power: 50-150 watts
  • nominal impedance: 6 ohms
  • sensitivity: 96 dB
  • includes zero-bezel paintable magnetic grille


  • cutout dimensions: 6-1/4″W x 25-5/16″H
  • overall dimensions: 7-7/16″W x 26-1/2″H
  • mounting depth: 3-3/4″

Additional information



Speaker Type
