UHF ID Pilot and Diversity belt-pack wireless microphone. Wireless microphone with superior sound, stable operation and excellent interference behaviour.
FONESTAR Diversity hand-held wireless microphone SONAIR-PRO-1M
€299
In stock
In stock
SKU: SONAIRPRO1M
Categories: Fonestar, Microphones, Professional audio
Tags: fonestar, microfonos, microphone and line input, Microphones, Professional audio
Description
– Transmission without interference
– Reception with dual antenna
– Great vocal sound
– Long reach
– Long battery life

– Transmission without interference
– Reception with dual antenna
– Great vocal sound
– Long reach
– Long battery life

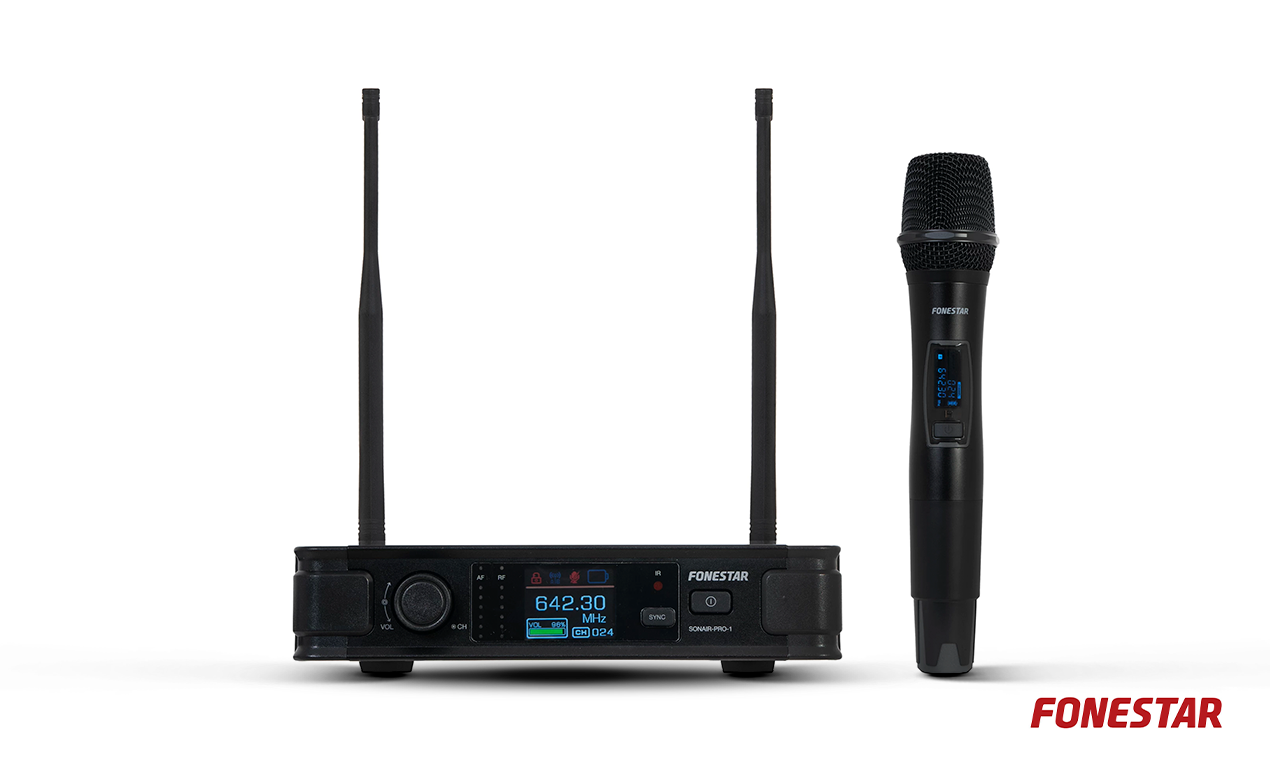

Dual UHF hand-held wireless microphone with ID Pilot and Diversity receiver
- Wireless microphone with superior sound, stable operation and excellent interference behaviour.
- The microphone integrates the ID Pilot function which pairs the receiver and transmitter with a unique 16-bit code, preventing other microphones from interfering even on the same frequency. In addition, the diversity reception with two antennas ensures the best RF reception.
- The display on the microphone and on the receiver easily informs about frequency and battery status. Facilitating the control of microphones.
- The transmitter uses an integrated audio and transmission management solution on a single chip, with frequency selection and efficient power management to maximise battery life. FM modulation technology with high sound quality.
- The receiver and microphone channels are quickly synchronised with the IR synchronisation function.
- UHF frequency range with selectable transmission channels.

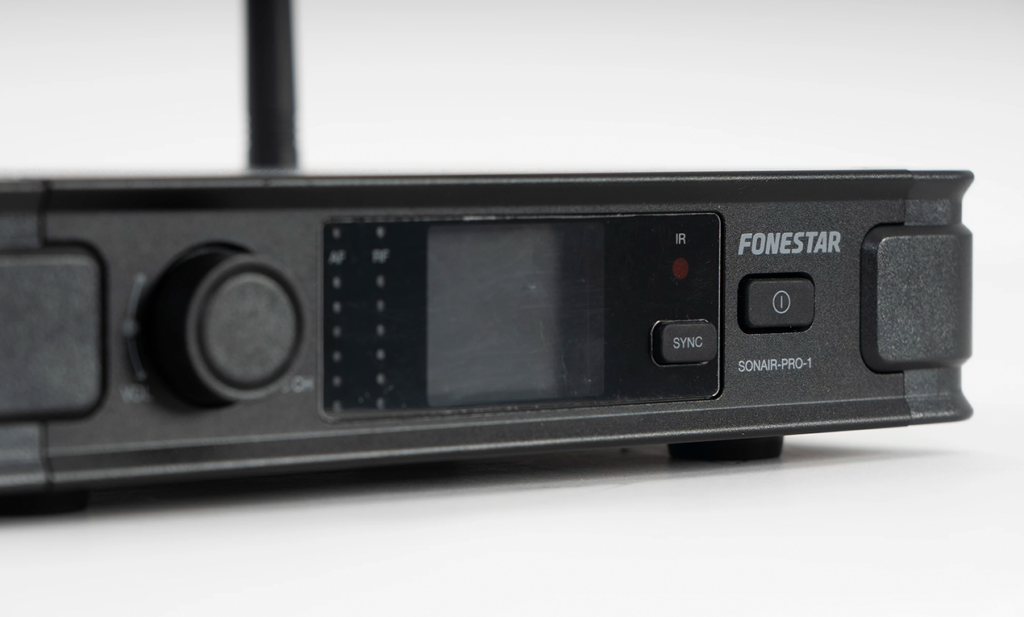

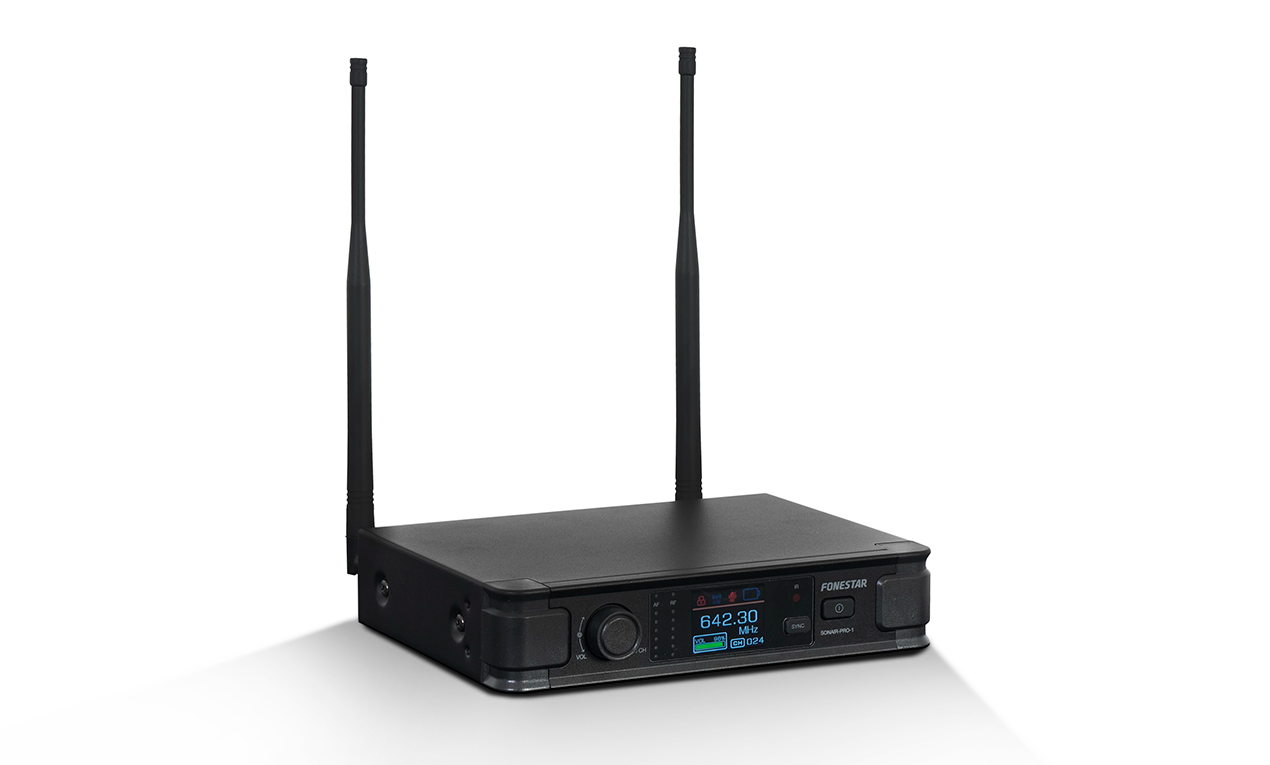

- Receiver with colour display and low noise balanced and unbalanced output for easy connection.

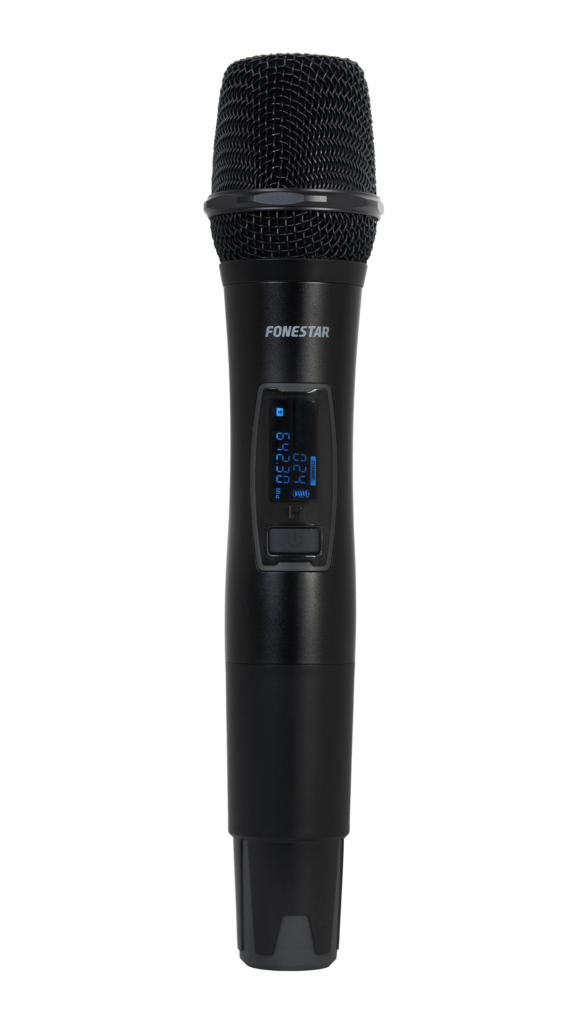

- Consisting of a hand-held wireless microphone receiver and transmitter with unidirectional dynamic capsule that maximises direct sound pick-up and noise and indirect sounds suppression.
- Suitable for events with portable microphones, such as presentations, lectures, singers, events, performances, etc.
Dual UHF hand-held wireless microphone with ID Pilot and Diversity receiver
- Wireless microphone with superior sound, stable operation and excellent interference behaviour.
- The microphone integrates the ID Pilot function which pairs the receiver and transmitter with a unique 16-bit code, preventing other microphones from interfering even on the same frequency. In addition, the diversity reception with two antennas ensures the best RF reception.
- The display on the microphone and on the receiver easily informs about frequency and battery status. Facilitating the control of microphones.
- The transmitter uses an integrated audio and transmission management solution on a single chip, with frequency selection and efficient power management to maximise battery life. FM modulation technology with high sound quality.
- The receiver and microphone channels are quickly synchronised with the IR synchronisation function.
- UHF frequency range with selectable transmission channels.
- Receiver with colour display and low noise balanced and unbalanced output for easy connection.
- Consisting of a hand-held wireless microphone receiver and transmitter with unidirectional dynamic capsule that maximises direct sound pick-up and noise and indirect sounds suppression.
- Suitable for events with portable microphones, such as presentations, lectures, singers, events, performances, etc.



Specs
FEATURES: | Wireless hand-held microphone with unidirectional dynamic capsule. Receiver with colour display of information; transmission channel, battery level in microphone, etc. Radio frequency signal and audio signal indicator. ID Pilot function 16 bit pairing code to avoid interference. Diversity reception with antennas. Transmission of the receiver channel to the microphone with SYNC IR. Selectable channels. Transmission distance greater than 50 m. Great vocal quality. Maximum 7 – 8 microphones / receivers operating at the same time on different channels. |
FREQUENCIES: | Range 640-690 MHz 500 channels |
POWER: | 30 mW |
RESPONSE: | 30-20,000 Hz (+/- 2 dB) |
S/N RATIO: | > 96 dB |
INPUTS: | 2 antennas, TNC female, 50 Ω. With 9 V DC output for power supply of antenna amplifiers |

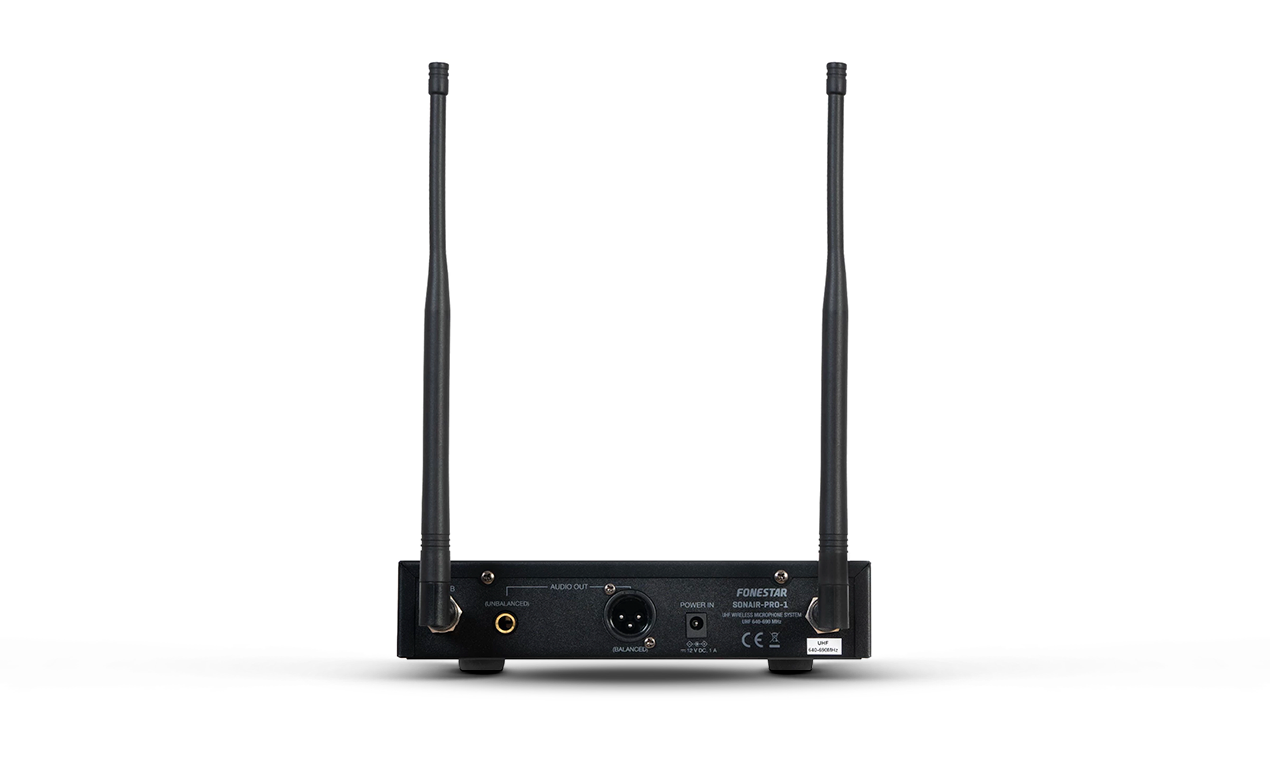

OUTPUTS: | Audio: 1 balanced, XLR, 0 ~ 250 mV, 600 Ω 1 unbalanced, 6.3 mm jack, 0 ~ 250 mV, 1 KΩ |
RECEIVER: | Receiving sensitivity: -95 dBm Distortion: < 0.3% Latency: < 3 ms |
MICROPHONES: | 1 hand-held wireless microphone with dynamic unidirectional capsule Harmonic radiation: < -50 dBc Battery life (alkaline): Up to 8 hours |
POWER SUPPLY: | Receiver: 12 V DC, 1 A with adapter included Transmitter microphone: 2 x AA batteries. Supports rechargeable batteries. |
DIMENSIONS: | Receiver: 210 x 50 x 175 mm depth |
WEIGHT: | 0.9 kg |
ACCESSORIES: | 2 antennas TNC 6.3 mm mono jack cable, 1m Anti-spin ring Power adapter Microphone batteries |
OPTIONAL: | SONAIR-PRO-1RACK: mount for assembly in 19” rack |
Specs
FEATURES: | Wireless hand-held microphone with unidirectional dynamic capsule. Receiver with colour display of information; transmission channel, battery level in microphone, etc. Radio frequency signal and audio signal indicator. ID Pilot function 16 bit pairing code to avoid interference. Diversity reception with antennas. Transmission of the receiver channel to the microphone with SYNC IR. Selectable channels. Transmission distance greater than 50 m. Great vocal quality. Maximum 7 – 8 microphones/receivers operating at the same time on different channels. |
FREQUENCIES: | Range 640-690 MHz 500 channels |
POWER: | 30 mW |
RESPONSE: | 30-20,000 Hz (+/- 2 dB) |
S/N RATIO: | > 96 dB |
INPUTS: | 2 antennas, TNC female, 50 Ω. With 9 V DC output for power supply of antenna amplifiers |
OUTPUTS: | Audio: 1 balanced, XLR, 0 ~ 250 mV, 600 Ω 1 unbalanced, 6.3 mm jack, 0 ~ 250 mV, 1 KΩ |
RECEIVER: | Receiving sensitivity: -95 dBm Distortion: < 0.3% Latency: < 3 ms |
MICROPHONES: | 1 hand-held wireless microphone with dynamic unidirectional capsule Harmonic radiation: < -50 dBc Battery life (alkaline): Up to 8 hours |
POWER SUPPLY: | Receiver: 12 V DC, 1 A with adapter included Transmitter microphone: 2 x AA batteries. Supports rechargeable batteries. |
DIMENSIONS: | Receiver: 210 x 50 x 175 mm depth |
WEIGHT: | 0.9 kg |
ACCESSORIES: | 2 antennas TNC 6.3 mm mono jack cable, 1m Anti-spin ring Power adapter Microphone batteries |
OPTIONAL: | SONAIR-PRO-1RACK: mount for assembly in 19” rack |
Additional information
Brand | Fonestar |
---|---|
Microphone Type | |
Microphone Features | Condenser Microphone, Wireless |
