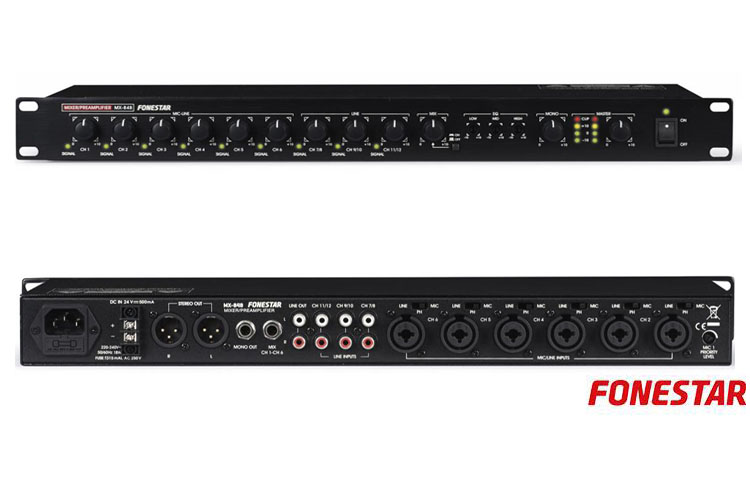

Mixer/preamplifier. Stereo and mono output. Suitable for PA and audio installations

CHARACTERISTICS
Mixer/preamplifier.
Microphone input with paging priority.
LED output level indicator.
Phantom power supply.

INPUTS
6 balanced mics/lines, combo (XLR and 6.3 mm jack), 1,500 Ω/10000Ω, 20  mV RMS/250 mV RMS
and 190 mV RMS/2,3 mV RMS
3 stereo aux, 2 x RCA, 10,000 Ω, 6.8 V RMS

OUTPUTS
1 balanced stereo master, XLR 120 Ω , 2.5 V maximum
1 balanced mono master, 6.3 mm jack, 120 Ω, 2.5 V maximum
1 balanced mono mix out, 120 Ω, 6.3 mm jack1 balanced microphone, 6.3 mm stereo jack, 3 mV
1 line out, 2 x RCA 1,000 Ω 775 mV

CONTROLS
Tone: master output bass, mid and treble
Volume: inputs 1 to 12 and general volume (stereo and mono master)

RESPONSE
10-20,000 Hz

DISTORTION
Harmonic: < 0.05 % at 1 kHz

S/N RATIO
Microphones > 70 dB
Auxiliary/Line > 103 dB

PHANTOM
18 V in mics. 1 to 6, selectable

PRIORITY
Mic. 1 input level priority, selectable

POWER SUPPLY
230 V AC, 18 W and 24 V DC, 500 mA

DIMENSIONS
483 x 44 x 220 mm depth. 1 U 19′ rack

WEIGHT
3 kg
