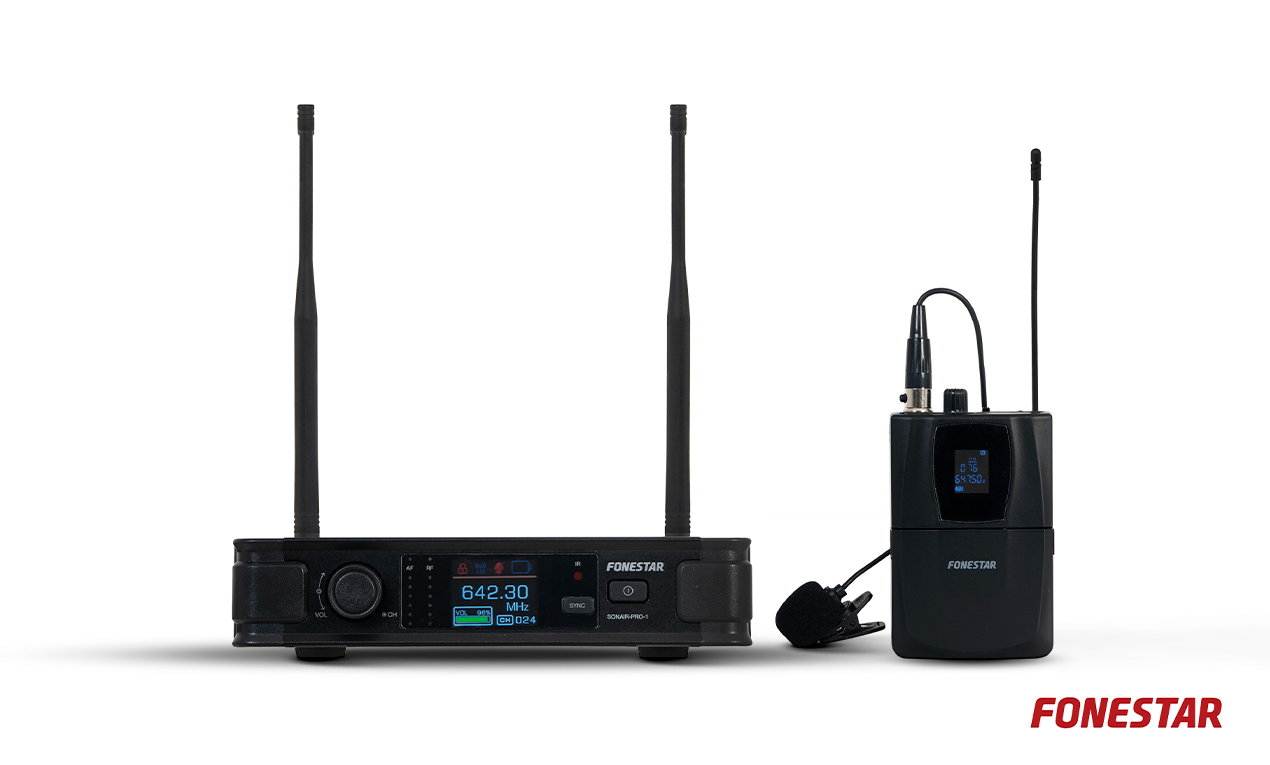

FONESTAR lapel wireless microphone pack SONAIR-PRO-1P

299

In stock

UHF ID Pilot and Diversity belt-pack wireless microphone. Wireless microphone with superior sound, stable operation and excellent interference behaviour.

In stock

Description

Transmission without interference

– Reception with dual antenna

– Great vocal sound

– Long reach

– Long battery life

Transmission without interference

– Reception with dual antenna

– Great vocal sound

– Long reach

– Long battery life

Dual UHF hand-held wireless microphone with ID Pilot and Diversity receiver

  • Wireless microphone with superior sound, stable operation and excellent interference behaviour.
  • The microphone integrates the ID Pilot function which pairs the receiver and transmitter with a unique 16-bit code, preventing other microphones from interfering even on the same frequency. In addition, the diversity reception with two antennas ensures the best RF reception.
  • The display on the microphone and on the receiver easily informs about frequency and battery status. Facilitating the control of microphones.
  • The transmitter uses an integrated audio and transmission management solution on a single chip, with frequency selection and efficient power management to maximise battery life. FM modulation technology with high sound quality.
  • The receiver and microphone channels are quickly synchronised with the IR synchronisation function.
  • UHF frequency range with selectable transmission channels.

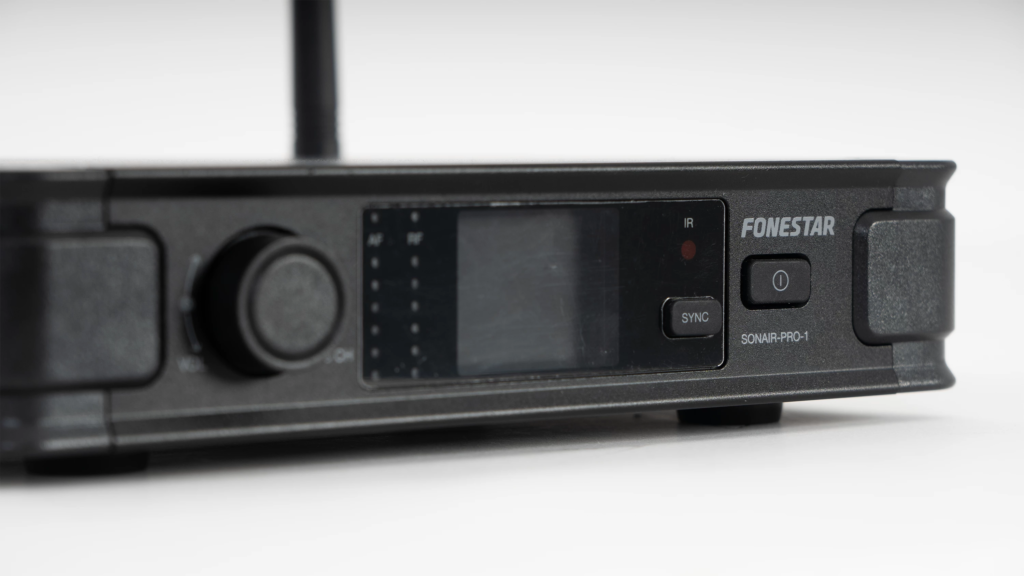

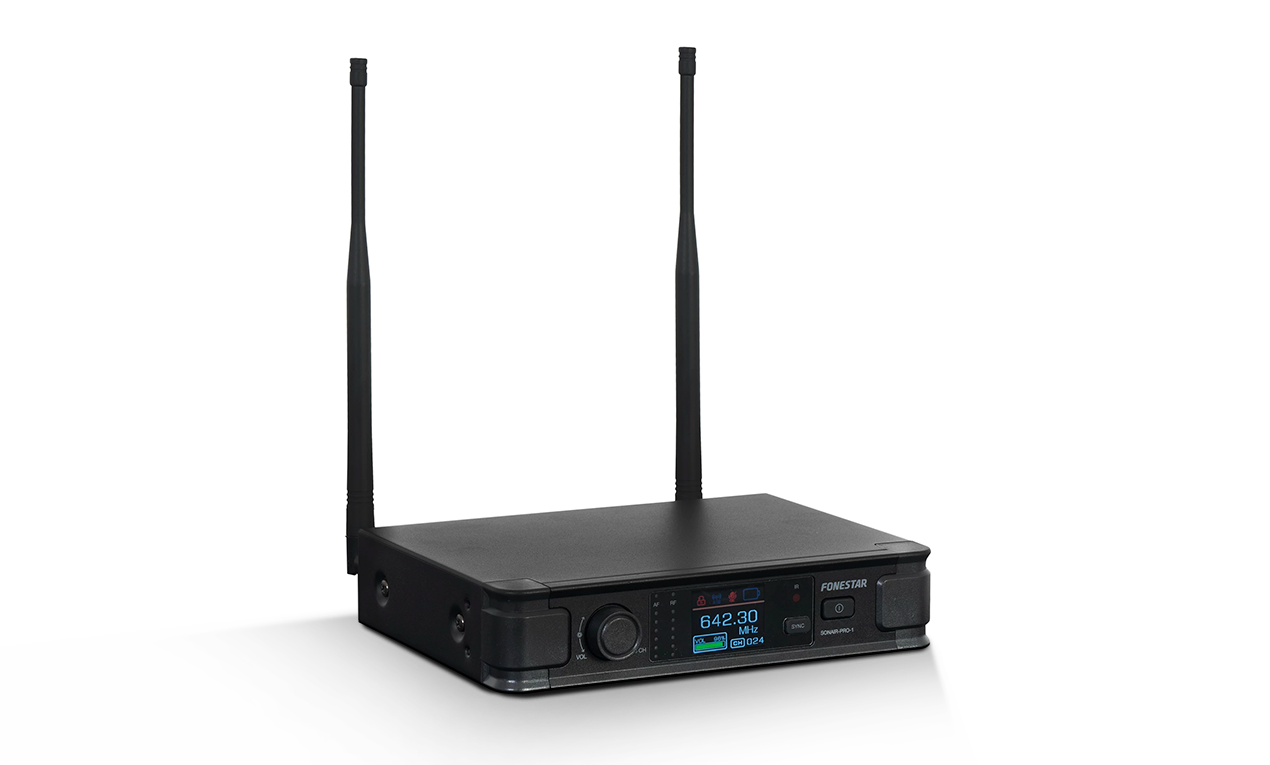

    Receiver with colour display and low noise balanced and unbalanced output for easy connection.

    Consisting of a belt-pack receiver and transmitter with a clip-on microphone with high live sound pick-up.

    Suitable for events with portable microphones, such as presentations, lectures, singers, events, performances, etc.

Dual UHF hand-held wireless microphone with ID Pilot and Diversity receiver

Dual UHF hand-held wireless microphone with ID Pilot and Diversity receiver

  • Wireless microphone with superior sound, stable operation and excellent interference behaviour.
  • The microphone integrates the ID Pilot function which pairs the receiver and transmitter with a unique 16-bit code, preventing other microphones from interfering even on the same frequency. In addition, the diversity reception with two antennas ensures the best RF reception.
  • The display on the microphone and on the receiver easily informs about frequency and battery status. Facilitating the control of microphones.
  • The transmitter uses an integrated audio and transmission management solution on a single chip, with frequency selection and efficient power management to maximise battery life. FM modulation technology with high sound quality.
  • The receiver and microphone channels are quickly synchronised with the IR synchronisation function.
  • UHF frequency range with selectable transmission channels.
    Receiver with colour display and low noise balanced and unbalanced output for easy connection.

    Consisting of a belt-pack receiver and transmitter with a clip-on microphone with high live sound pick-up.

    Suitable for events with portable microphones, such as presentations, lectures, singers, events, performances, etc.

Specs

FEATURES:

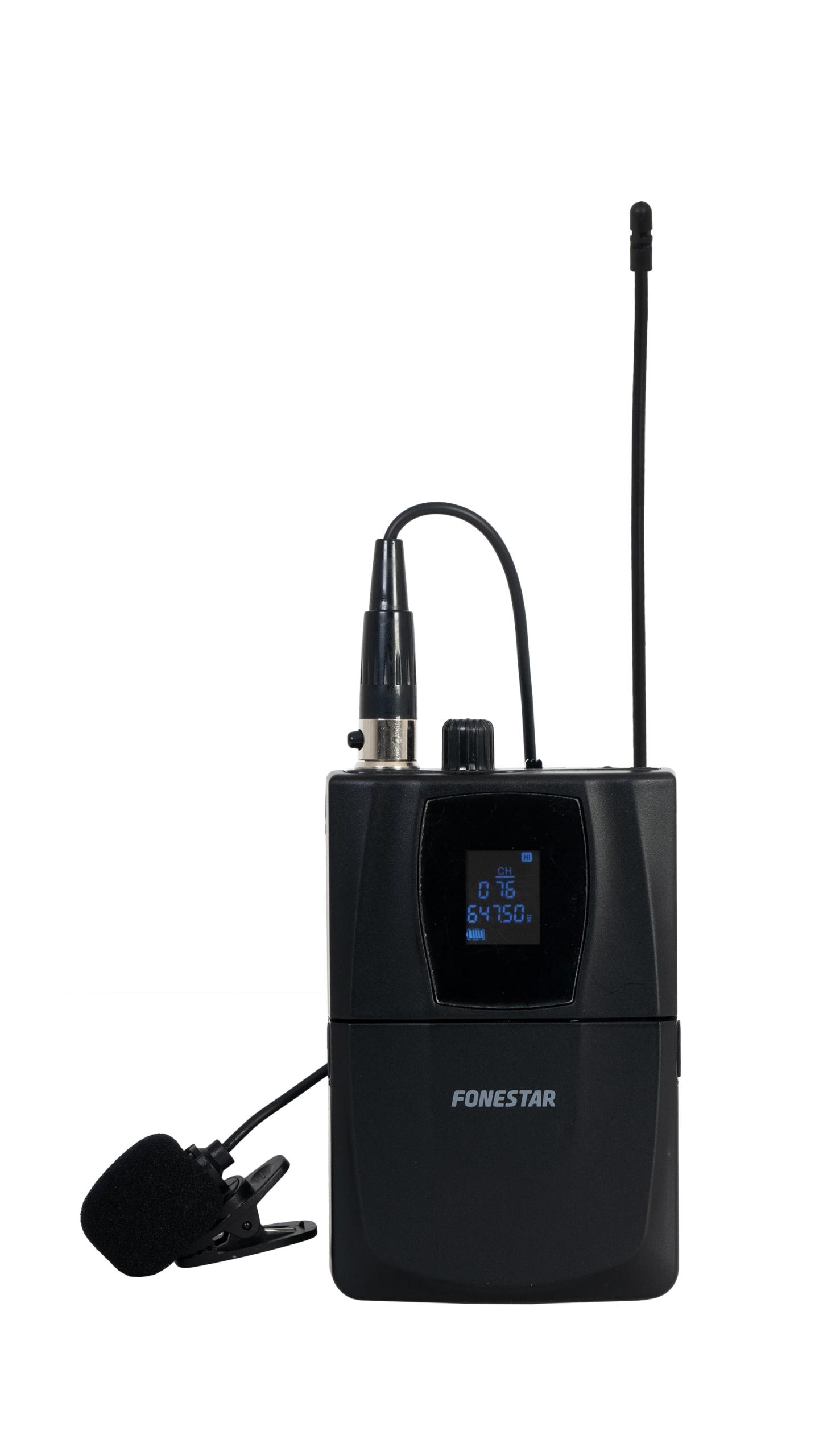

Wireless belt-pack microphone with
clip-on microphone.
Receiver with colour display of
information; transmission
channel, battery
level in microphone, etc. Radio frequency signal and audio signal indicator.
ID Pilot function 16 bit pairing code to
avoid interference.
Diversity reception
with antennas.
Transmission of the receiver channel
to the microphone
with SYNC IR.
Selectable channels.
Transmission distance greater than 50 m.
Great vocal quality.
Maximum 7 – 8 microphones
/ receivers operating at the same time on different channels.

FREQUENCIES:Range 640-690 MHz
500 channels
POWER:30 mW
RESPONSE:30-20,000 Hz (+/- 2 dB)
S/N RATIO:> 96 dB
INPUTS:2 antennas, TNC female, 50 Ω. With 9 V DC output for power supply of antenna amplifiers

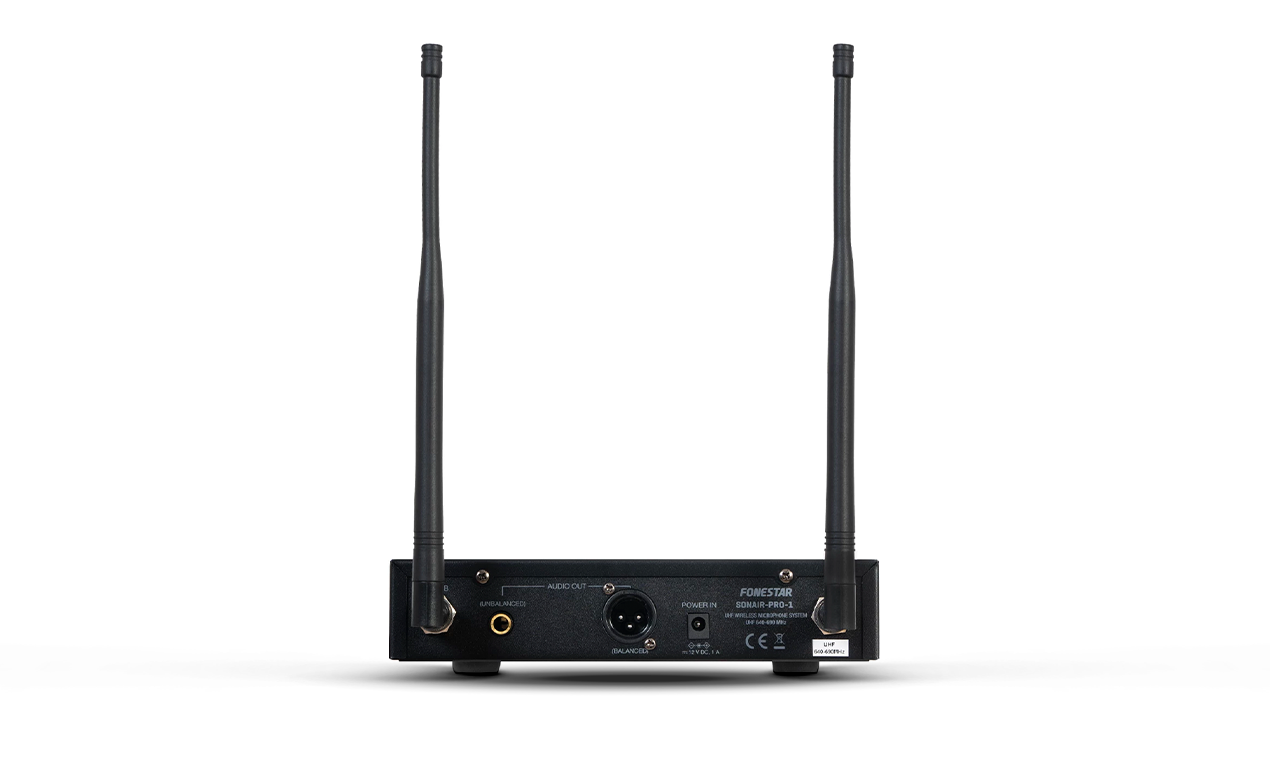

OUTPUTS:Audio:
1 balanced, XLR, 0 ~ 250 mV, 600 Ω
1 unbalanced, 6.3 mm jack, 0 ~ 250 mV, 1 KΩ
RECEIVER:Receiving sensitivity: -95 dBm
Distortion: < 0.3%
Latency: < 3 ms
MICROPHONES:1 belt-pack wireless microphone with clip-on microphone
3-pin XLR mini input connector
Harmonic radiation: < -50 dBc
Battery life (alkaline): Up to 10 hours
POWER SUPPLY:Receiver: 12 V DC, 1 A with adapter included
Transmitter microphone: 2 x AA batteries. Supports rechargeable batteries.
DIMENSIONS:Receiver: 210 x 50 x 205 mm depth
WEIGHT:0.9 kg
ACCESSORIES:2 antennas TNC
6.3 mm mono jack cable, 1m
Power adapter
Microphone batteries
OPTIONAL:SONAIR-PRO-1RACK: mount for assembly in 19” rack
COMPATIBILITY:FCM-850-MC3: Tie-clip microphone
FCM-970-MC3: Head-worn microphone
FCM-660-MC3: Head-worn microphone

Specs

FEATURES: Wireless belt-pack microphone with clip-on microphone.
Receiver with colour display of information; transmission channel,
battery level in microphone, etc. Radio frequency signal and audio
signal indicator.
ID Pilot function 16 bit pairing code to avoid interference.
Diversity reception with antennas.
Transmission of the receiver channel to the microphone with SYNC IR.
Selectable channels.
Transmission distance greater than 50 m.
Great vocal quality.
Maximum 7 – 8 microphones/receivers operating at the same time on different channels.
FREQUENCIES: Range 640-690 MHz
500 channels
POWER: 30 mW
RESPONSE: 30-20,000 Hz (+/- 2 dB)
S/N RATIO: > 96 dB
INPUTS: 2 antennas, TNC female, 50 Ω. With 9 V DC output for power supply of antenna amplifiers
OUTPUTS: Audio:
1 balanced, XLR, 0 ~ 250 mV, 600 Ω
1 unbalanced, 6.3 mm jack, 0 ~ 250 mV, 1 KΩ
RECEIVER: Receiving sensitivity: -95 dBm
Distortion: < 0.3%
Latency: < 3 ms
MICROPHONES: 1 belt-pack wireless microphone with clip-on microphone
3-pin XLR mini input connector
Harmonic radiation: < -50 dBc
Battery life (alkaline): Up to 10 hours
POWER SUPPLY: Receiver: 12 V DC, 1 A with adapter included
Transmitter microphone: 2 x AA batteries. Supports rechargeable batteries.
DIMENSIONS: Receiver: 210 x 50 x 205 mm depth
WEIGHT: 0.9 kg
ACCESSORIES: 2 antennas TNC
6.3 mm mono jack cable, 1m
Power adapter
Microphone batteries
OPTIONAL: SONAIR-PRO-1RACK: mount for assembly in 19” rack
COMPATIBILITY: FCM-850-MC3: Tie-clip microphone
FCM-970-MC3: Head-worn microphone
FCM-660-MC3: Head-worn microphone

Additional information

Brand

Fonestar

Microphone Features

Wireless

Microphone Type

,
