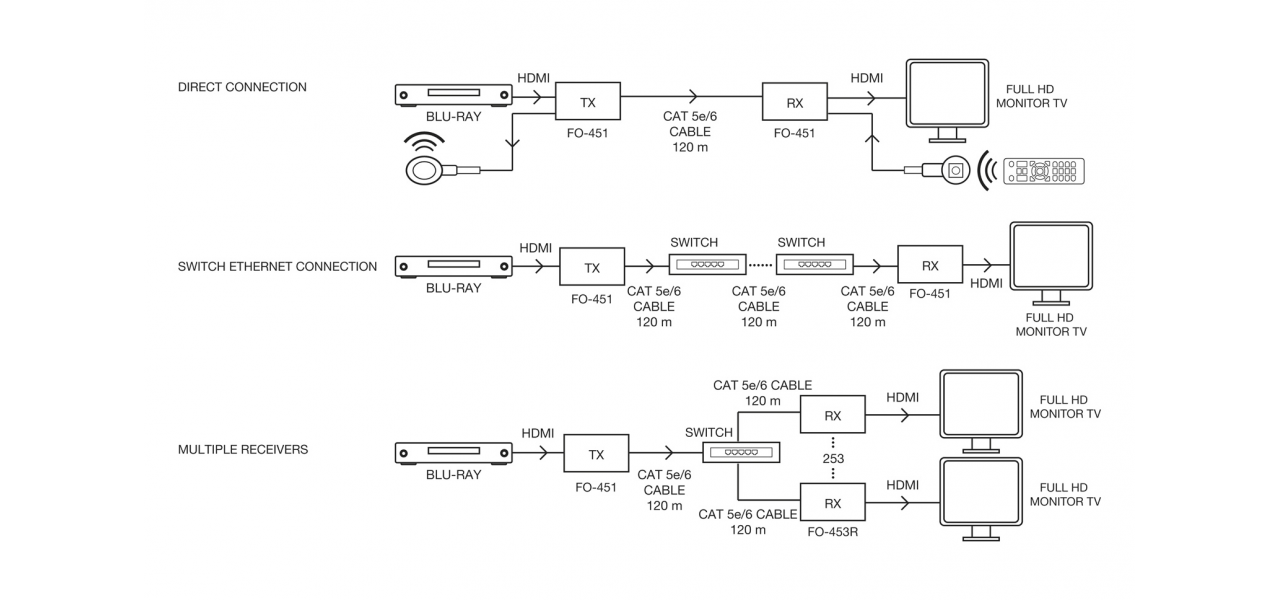

HDMI extension via Cat 5e/6 cable (transmitter and receiver) HDbitT. Compatible with Full HD 1080p/60Hz with a transmission distance of up to 120 m with direct connection for a resolution of 1080p. Extendable 120 m with each switch level. Direct connection with cat 5e/6 cable or ethernet with switch. Splitter function via switch with multiple receivers, up to 253 receivers. In accordance with IEEE-568B standard. Recommended switch 1,000 Mbps. Low consumption bandwidth 18 Mbps.

TRANSMITTER
Input: 1 female HDMI
Output: 1 RJ-45 HDMI ethernet extension via Cat 5e/6 cable

RECEIVER
Input:1 RJ-45 HDMI ethernet extension via Cat 5e/6 cable
Output:1 female

HDMI POWER SUPPLY
Transmitter and receiver: 5 V DC, 1 A with adapter included

DIMENSIONS
Transmitter and receiver: 97 x 24 x 94 mm depth

WEIGHT
2 x 0.1 kg

ACCESSORIES
Remote control receiver and transmitter

NOTE It is recommended that good quality Cat 5e/6 cables with FTP/SFTP shielding are used. The cables must have shielded connectors with the cable shielding connected to the connector shielding. This improves the reliablity of the HDMI extenders, avoiding ground loops produced by interconnecting devices (player/receiver and TV) with different ground reference which could cause losses or image cutting.
