Distribute one HDMI source to four displays with identical video and audio. Featuring HDMI 2.0 support and a built-in down-scaling function, it adapts automatically to each TV’s resolution. Ideal for exhibitions, retail displays, training rooms, conference halls, sports centers, bars, and restaurants.

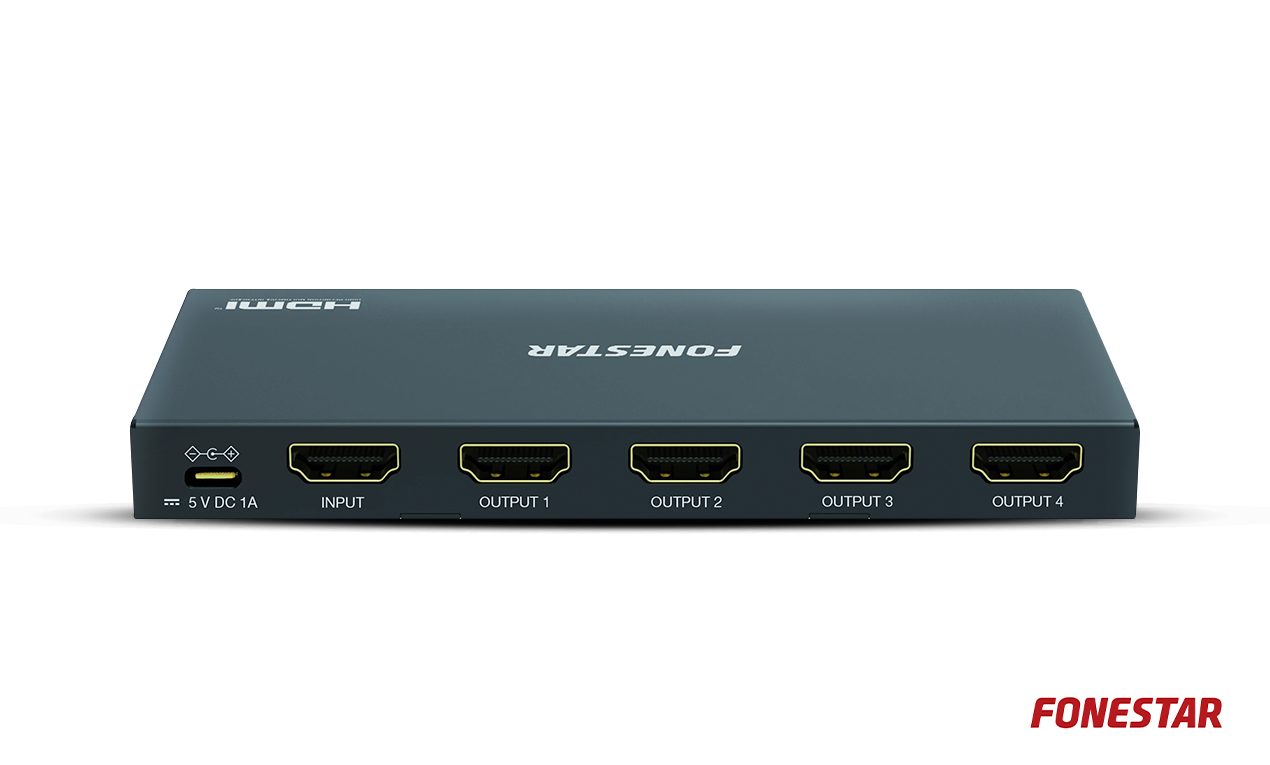

Fonestar FO-22S4ED 1 x 4 HDMI – Amplifier Splitter
Original price was: €129.€99Current price is: €99.
In stock
In stock
Description
- Allocates HDMI signals (1 input to 4 outputs)
- UHD 4K@60Hz resolution
- Downscaler and EDID function
- 2.0 HDMI
- HDCP 2.2
Hostelry
Offices
Education
All sectors
HDMI 2.0 splitter (1 input x 4 outputs).
Distribute the same image on multiple TVs. The same video and audio content can be shown on different TVs to be seen by more people.
In addition, you can distribute the signal to TVs of different resolutions, thanks to the DOWN-SCALING function that automatically adjusts the output signal to the TV resolution.
For installations where multiple TVs are needed for the audience such as exhibitions, shop displays, training rooms, conference rooms, sports centres, bars, restaurants, etc.
Technical Specs
| Features: | 1×4 HDMI 2.0 amplifier splitter. UHD 4K@60Hz resolution. 18 Gbps bandwidth. DOWN-SCALING function on outputs (Auto adjustment for the resolution of each TV. Simultaneously provides 4K and 1080p outputs). Intelligent EDID management, automatic or manual selection. Supports HDR and 12-bit colour, 3D video and all audio formats. |
| HDMI: | 2.0, compatible with 1.4 |
| HDCP: | 2.2, compatible with 1.4 |
| Delay: | 0 ms |
| Inputs: | 1 x HDMI female gold-plated connector |
| Outputs: | 4 x HDMI female gold-plated connectors |
| Indicators: | – Operating LED – Output LED – Operating mode LED |
| Power Supply: | USB-C PORT, 5 V CC, 1 A |
| Dimensions: | 136 x 14 x 61 mm depth |
| Weight: | 0.15 kg |
| Accesories: | USB-C power adapter and cable, 1 m |
| Notes: | The cable must be HDMI 2.0. Maximum cable length is 5m for 4K@60Hz 4:4:4 or 10m for 4K@30Hz or 1080p. |
Additional information
| Brand | Fonestar |
|---|---|
| Product Type | HDMI Splitters |
