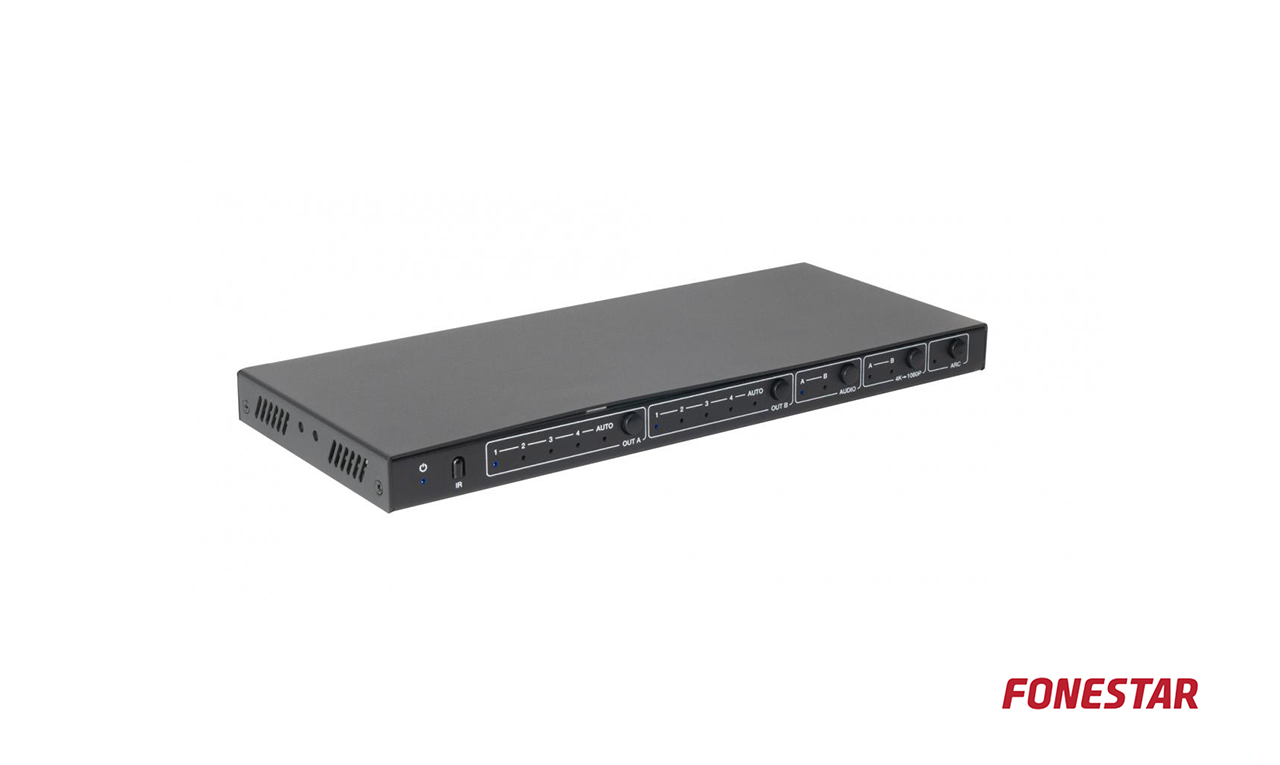

Fonestar FO-22M42 4 x 2 HDMI Matrix connects 4 4K @ 60Hz UHD HDMI sources to output independently or simultaneously to 2 HDMI outputs.
Description
FEATURES

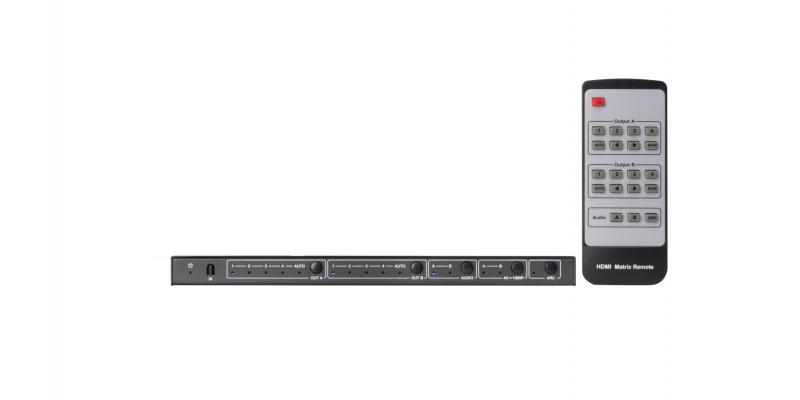

4 x 2 HDMI matrix. Resolution 4K UHD@ 60Hz and lower. Bandwidth 18 Gbps. HDR compatible. EDID function, manually select the optimal resolution for all TVs. DOWN-SCALING function to transform resolutions from 4K to Full HD 1080p. Digital and analog audio extractor for selected HDMI output. Remote control.
HDMI
2
HDCP
2.2
DELAY
500 ms
INPUTS

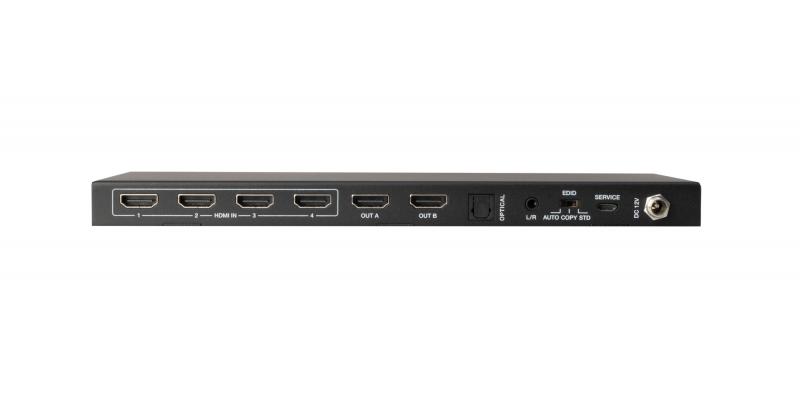

4 HDMI female
OUTPUTS
2 HDMI female 1 stereo audio, 3.5 mm jack 1 SPDIF audio, optical
CONTROLS
Input selection buttons for each output HDMI audio source selection button DOWN-SCALING function activation button SPDIF audio selection button
INDICATORS
Power indicator lights, input selected for each output, selected audio source, DOWN-SCALING function activation and SPDIF digital audio activation
POWER SUPPLY
12 V DC, 1 A with adapter included
DIMENSIONS
251 x 20 x 105 mm depth
WEIGHT
0.6 kg
Additional information
| Brand | Fonestar |
|---|---|
| Product Type | HDMI Switches |
