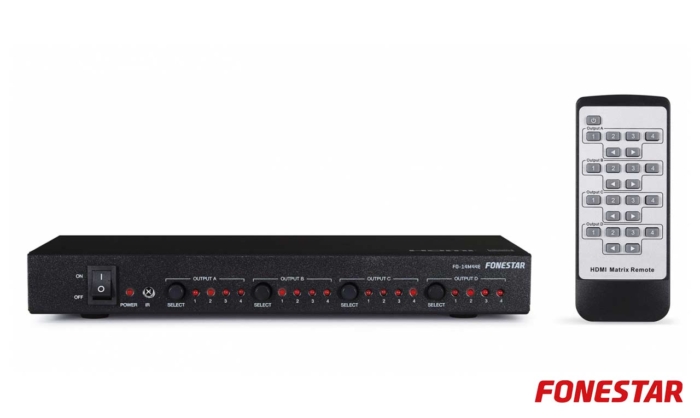

4 x 4 HDMI matrix 4k x 2k, Full HD 1080p, EDID function, Remote control. RS-232 comm. port, Bandwidth 8.91 Gbps.
Description
4 x 4 HDMI matrix. Compatible with 4k x 2k, Full HD 1080p. EDID function, automatically or manually selects optimum resolution for all TVs. Remote control. Communication protocol through port RS-232. Bandwidth 8.91 Gbps.
INPUTS
4 gold-plated female HDMI connectors 1 RS-232, D9
OUTPUTS
4 gold-plated female HDMI connectors
CONTROLS
Input selection buttons for each output
INDICATORS
LED power indicator, selected input in each output
POWER SUPPLY
12 V DC, 2.5 A with adapter included
DIMENSIONS
267 x 37 x 120 mm depth WEIGHT 0.8 kg
Additional information
| Brand | Fonestar |
|---|---|
| Product Type | HDMI Matrix |
