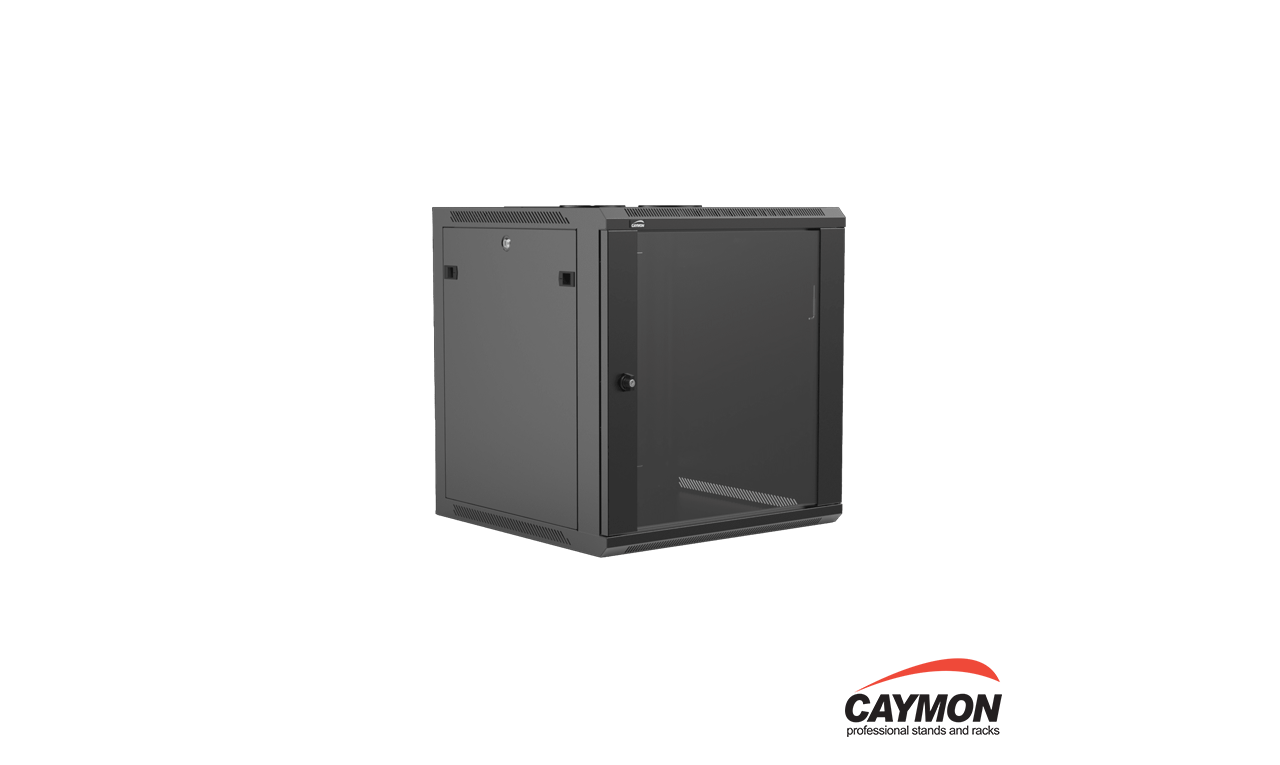

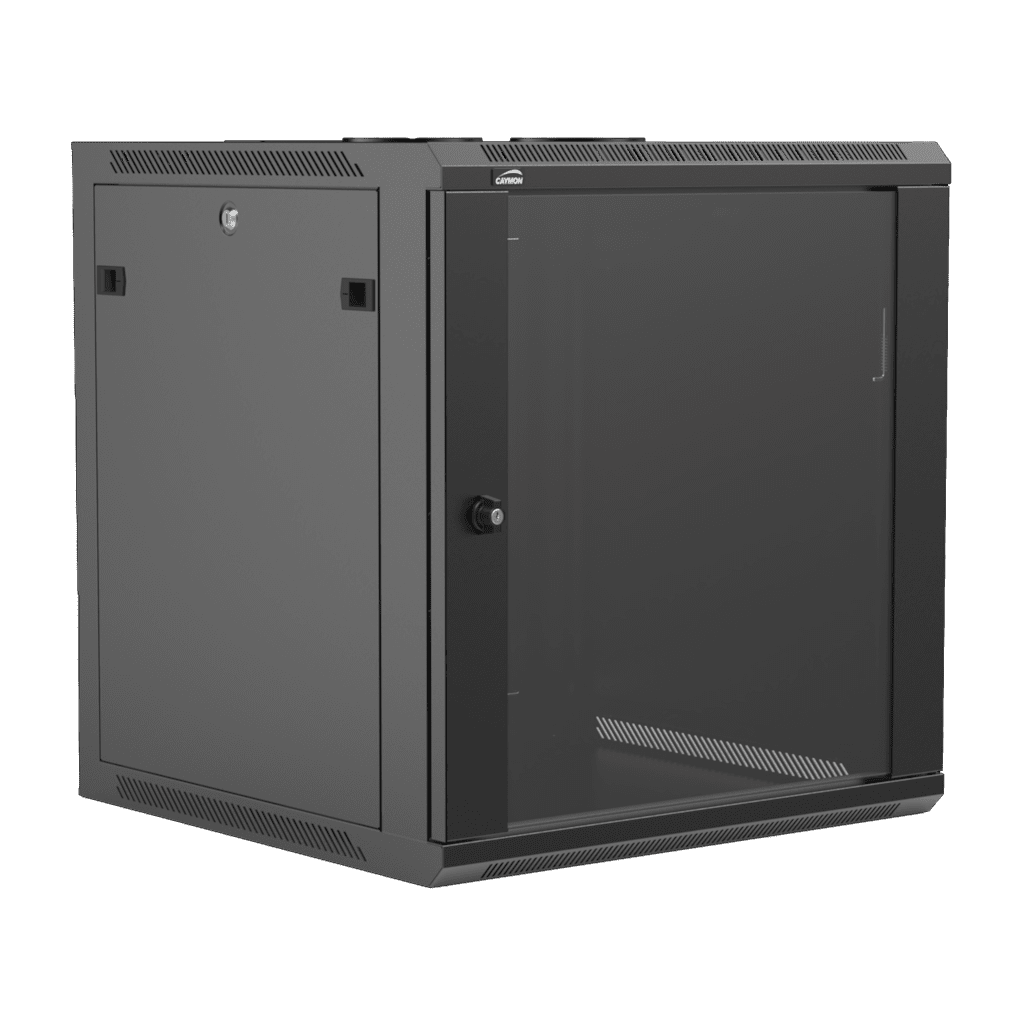

Caymon WPR612R 19″ rack cabinet

419.10

In stock

Caymon Rack Cabinet. 12 unit cabinet. Ventilation grid on top. Removable sides for easy installing & cabling. Tempered glass door with keylock.

In stock

Description

WPR612R

19" wall mount rack - 12 unit - 600mm depth

wpr612-black

Highlights

  • Stores up to 12 units of 19” Equipment
  • Integrated ventilation grid on top
  • Cable entry on top, back & bottom (closable)
  • Removable sides for easy installing & cabling

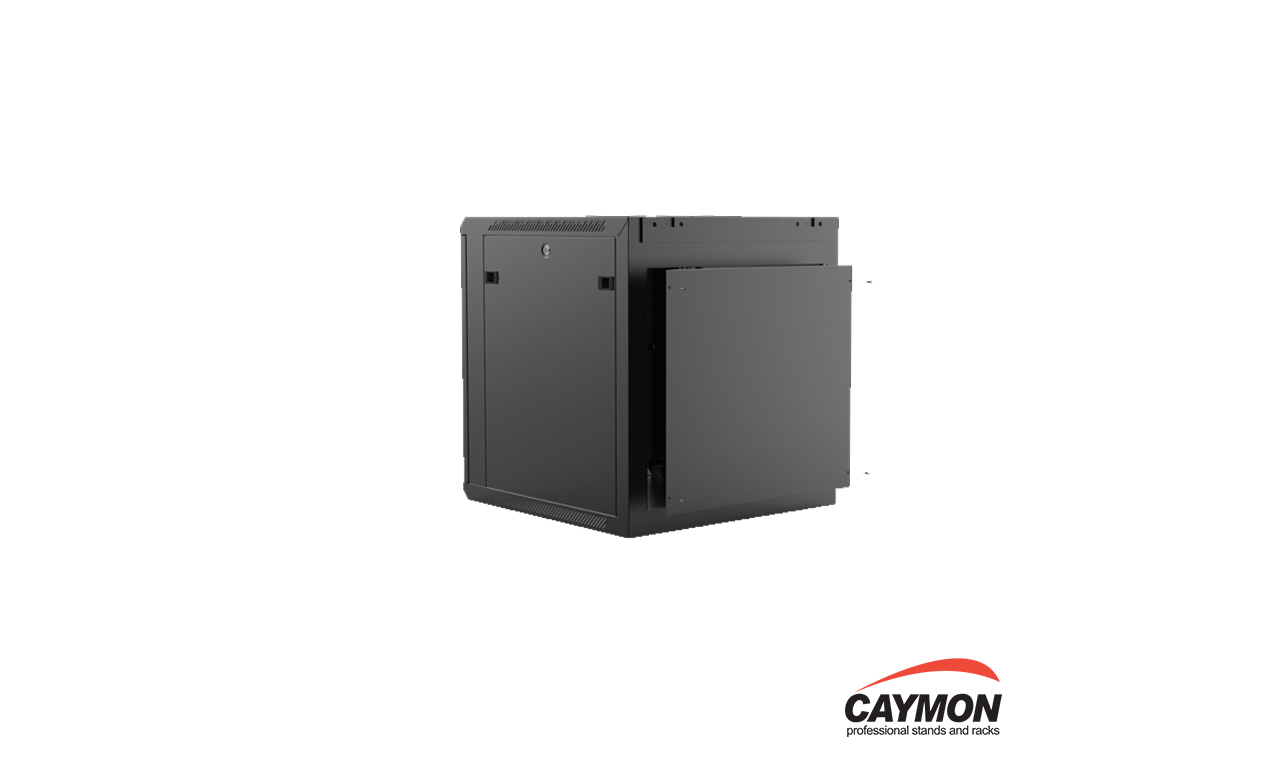

  • Removable rear panel
  • Keylock with butterfly handle
  • Tempered glass door with keylock
  • Punched square holes for use with snap-in cage nuts
  • Front in depth adjustable 19” profiles (max 560 mm)
  • Loading capacity of 60 kg

The WPR612R is a professional 19” wall mount metal rack compliant to ANSI/EIA RS-310D, DIN41491, IEC 60297 standards. It is a solid construction with a cold rolled steel 1,5 mm thick frame and 1,2 mm thick plates. The WPR612R comes fully assembled and can easily be mounted on the wall. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure easy fitting of the equipment. The tempered smokey grey glass door is fitted with a keylock to keep the equipment only accessible for authorized persons. The removable sides and back panels allow easy installing and cabling of the equipment while the in depth adjustable 19” profiles provide great flexibility for installing equipment depending on its depth.



PRODUCT FEATURES
Dimensions600 x 638 x 600 mm (W x H x D)
Unit height12 HE
Weight30.7 kg
ColoursBlack (RAL9004)
Max. load60 kg
Max. usable depth560 mm
AccessoriesIncluded10 x Cage nuts + screws
  2 x key for front door
  4 x Key for sidepanel lock
  1 x Allen key
  1 x WPR60LR
 OptionalKM600 – M6 Cage nuts
  KS600 – M6 x 16 mm bolt DIN7985 Black
  WPR10RF – Roof fan 120×120 mm
  SPR10DC – Dust cover brush
  WPR60FS – Fixed shelf
  WPR60LR – L-Rail pair
  SS160 – Sliding shelf
Play Video

Additional information

Brand

Caymon

Racks

Racks & stands

Bracket Type

Racks/Cabinet

Rack/Cabinet Type

Cabinet

Model

WPR406R/B, WPR406R/W
