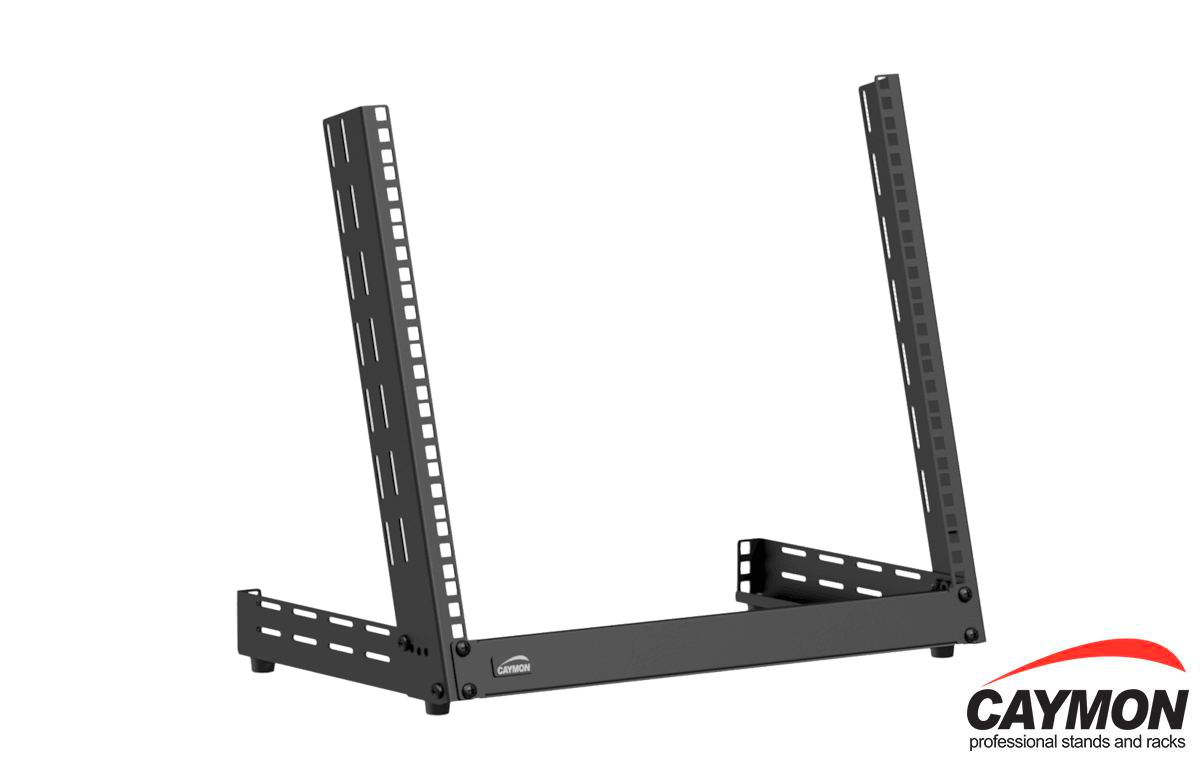

Caymon TPR309A Desktop open frame rack – 9 units


In stock

Caymon Desktop open frame rack – 9 units – Adjustable angle 0°~15°

In stock



Desktop open frame rack - 9 units - Adjustable angle 0°~15°


  • Stores up to 9 units of 19” Equipment
  • Punched square holes for use with snap-in cage nuts
  • 2.0 mm thick cold rolled steel frame
  • Easy assembly in 5 minutes
  • Ships as flat-down package
  • Desktop standing use
  • Slanted front for optimal stability and equipment viewing
  • Perforated sides for cable guiding or accessories mounting
  • 0° – 15° adjustable angle
  • 1 unit backside mounting possibility

The TPR309A is a professional and solid constructed desktop rack with adjustable angle for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It ensures maximum installation, connectivity and maintenance ease while simultaneously storing up to 9 units for studio, processing, test and other 19” equipment. The 0° ~ 15° adjustable slanted front profiles offer optimal stability and a perfect viewing angle on the front panels of the installed equipment at any given time.

The construction is made of 2.0 mm thick steel finished in a black (RAL9004) powder coating with fine structure. Punched equipment mounting profiles on the front offer a multifunctional use of the rack while perforated sides allow cable guiding or accessories mounting. Delivered in a flat-down package, the simple structure allows assembly by a single person in record-breaking time.

Adjustable angle0° – 15° adjustable tilt angle
Unit height9 HE
Max. load30 kg
Dimensions509 x 446,2 x 301,3 mm (W x H x D) (incl. rubber feet)
ColoursBlack (RAL9004)
AccessoriesIncluded1 set Assembly hardware
  20 x Cage nuts + screws
 OptionalKM600 – M6 Cage nuts
