Caymon Rack Cabinet. 32 unit cabinet. Ventilation grid on top. Removable sides for easy installing & cabling.

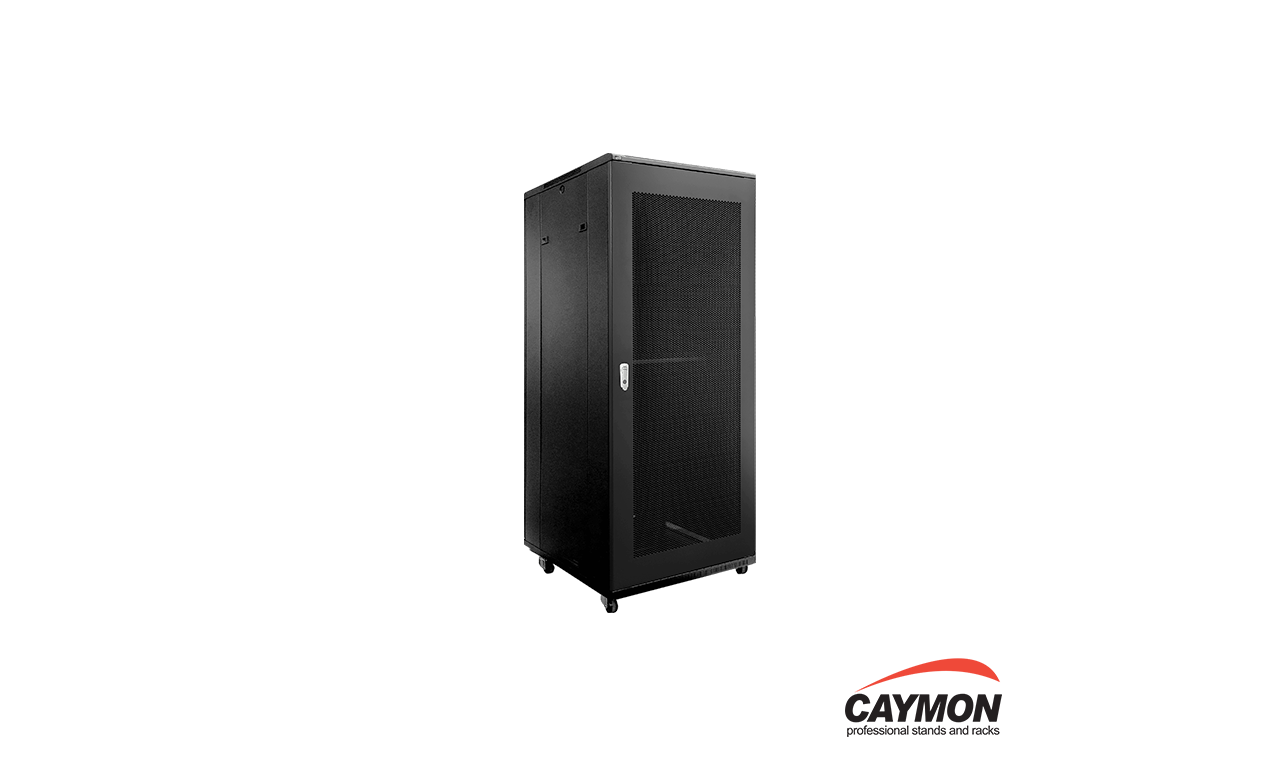

Caymon SPR832GG 19″ rack cabinet
€1,139
In stock
In stock
Description
SPR832GG
19" rack cabinet - 32 unit - 600mm W x 800mm D
Highlights
- Stores up to 32 units of 19” Equipment
- Integrated ventilation grid on top
- 50 mm Wheels + leveling feet included
- Removable sides for easy installing & cabling
- Punched square holes for use with snap-in cage nuts
- Front and rear in depth adjustable 19” profiles (max 740 mm)
- Reversible door position
- Mesh perforation with hexagonal pattern
- Swing handle with cylinder lock
The SPR832GG is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provide a solid and stable construction making it suitable for heavy equipment, storing up to 32 units inside. The SPR832GG comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and levelling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19“ profiles provide great flexibility for installing equipment depending on its depth.
The SPR832GG comes with 2 perforated steel grill doors (front and rear). The mesh perforation with hexagonal pattern provides an optimal air flow through the cabinet. The swing handle with cylinder lock safely locks the equipment inside.
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Unit height | 32 HE | |||
| Colours | Black (RAL9004) | |||
| Max. usable depth | 740 mm | |||
| Dimensions | 600 x 1540 (1610) x 800 mm (W x H (incl. feet) x D) | |||
| Accessories | Optional | KS600 – M6 x 16 mm bolt DIN7985 Black | ||
| KM600 – M6 Cage nuts | ||||
| Wheel | Diameter | 50 mm | ||
| Accessories | Included | 4 x Key for sidepanel lock | ||
| 1 x Allen key | ||||
| 4 x Levelling feet | ||||
| 4 x Key for front/back door | ||||
| 20 x KS600 | ||||
| 20 x KM600 | ||||
| Static load capacity (adjustable feet) | 800 kg | |||
| Dynamic load capacity (transport castors) | 400 kg | |||
| Weight | 76 kg | |||
