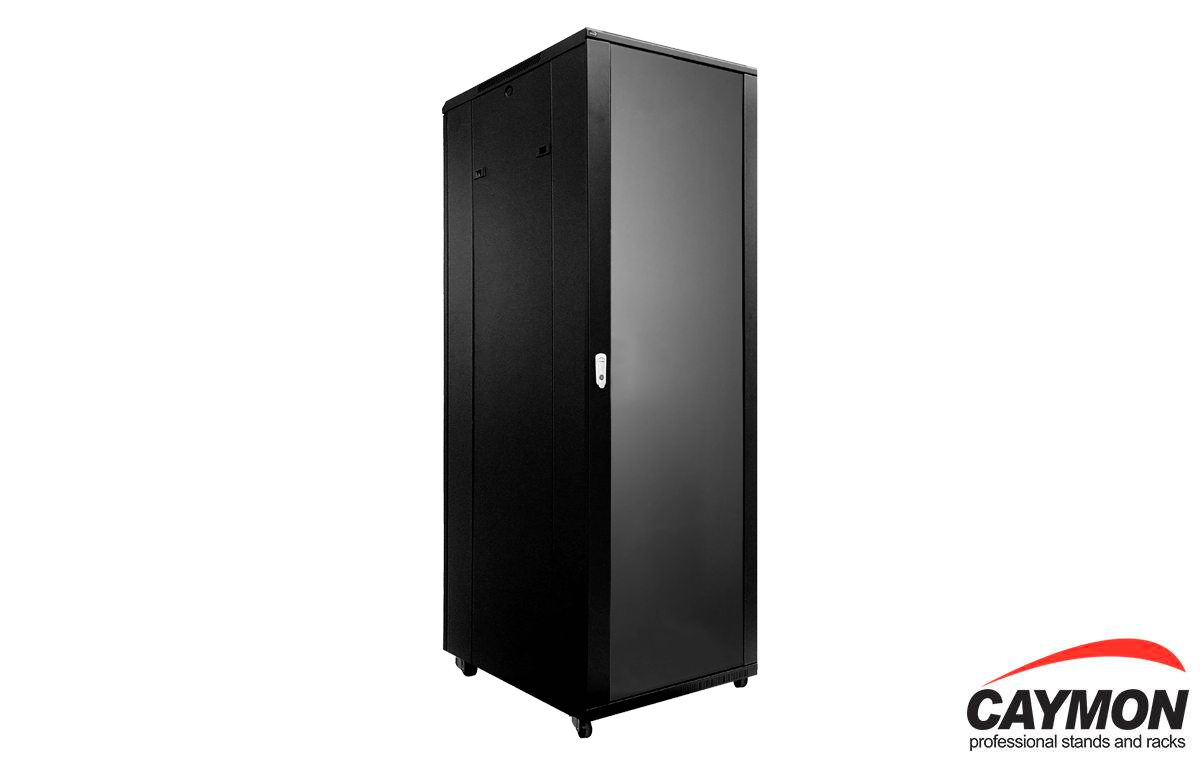

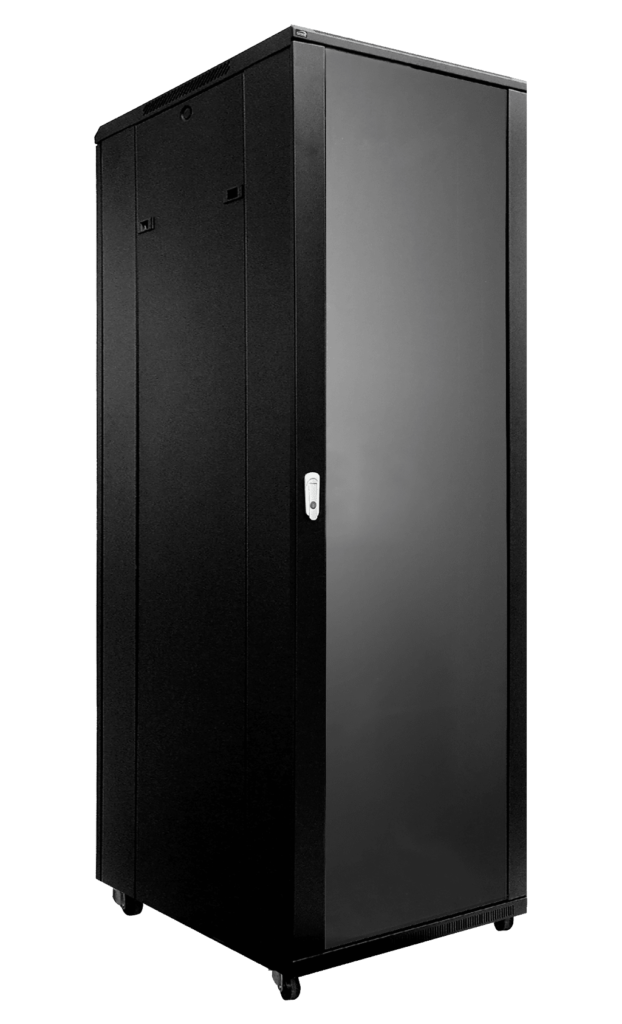

Caymon SPR1042 19″ rack cabinet – 42 unit

1,186.10

Caymon Rack Cabinet. 42 unit cabinet. Ventilation grid on top. Removable sides for easy installing & cabling. Tempered glass door with keylock.

SEND EMAIL QUERY

Description

SPR1042

19" rack cabinet - 42 unit - 600mm W x 1000mm D

Highlights

  • Standard keylock for both doors
  • Integrated ventilation grid on top
  • 50 mm Wheels + leveling feet included
  • Removable sides for easy installing & cabling
  • Punched square holes for use with snap-in cage nuts
  • Front and rear in depth adjustable 19” profiles (max 940 mm)
  • Tempered glass door with keylock
  • Reversible door position
  • Stores up to 42 units of 19″ equipment


The SPR1042 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold-rolled steel 2 mm thick frame and 1,2 mm thick plates provide a solid and stable construction making it suitable for heavy equipment, storing up to 42 units inside. The SPR1042 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and levelling once correctly positioned.

The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19“ profiles provide great flexibility for installing equipment depending on its depth. Both front and rear doors are fitted with a standard key lock.

PRODUCT FEATURES
Unit height42 HE
Weight115 kg
ColoursBlack (RAL9004)
Max. usable depth940 mm
WheelDiameter50 mm
Dimensions600 x 1985 (2055) x 1000 mm (W x H (incl. feet) x D)
AccessoriesIncluded4 x Key for sidepanel lock
  1 x Allen key
  4 x Levelling feet
  4 x Key for front/back door
  20 x KS600
  20 x KM600
 OptionalKS600 – M6 x 16 mm bolt DIN7985 Black
  KM600 – M6 Cage nuts
  SPR10CS – Rack interconnection slot
  SPR100LR
  SPR100PT
  SPR100RF
Static load capacity (adjustable feet)800 kg
Dynamic load capacity (transport castors)400 kg
Play Video

Additional information

Brand

Caymon

Racks

Racks & stands

Bracket Type

Racks/Cabinet

Rack/Cabinet Type

Cabinet
