Caymon OPR512A 12-unit adjustable open frame rack

21.40

Caymon 19″ in depth adjustable open frame rack – 12 unit – 500 ~ 700 mm

SEND EMAIL QUERY

Description

OPR512A

19" in depth adjustable open frame rack - 12 unit - 500 ~ 700 mm

Highlights

  • In depth adjustable
  • Stores up to 12 units of 19” Equipment
  • Punched square holes for use with snap-in cage nuts
  • 2 mm thick cold rolled steel frame
  • Easy assembly in 10 minutes
  • Floor standing & wall mounted use
  • Unrestricted air flow due to open-frame design
  • Stand alone & in-furniture integration
  • Ships as flat-down package

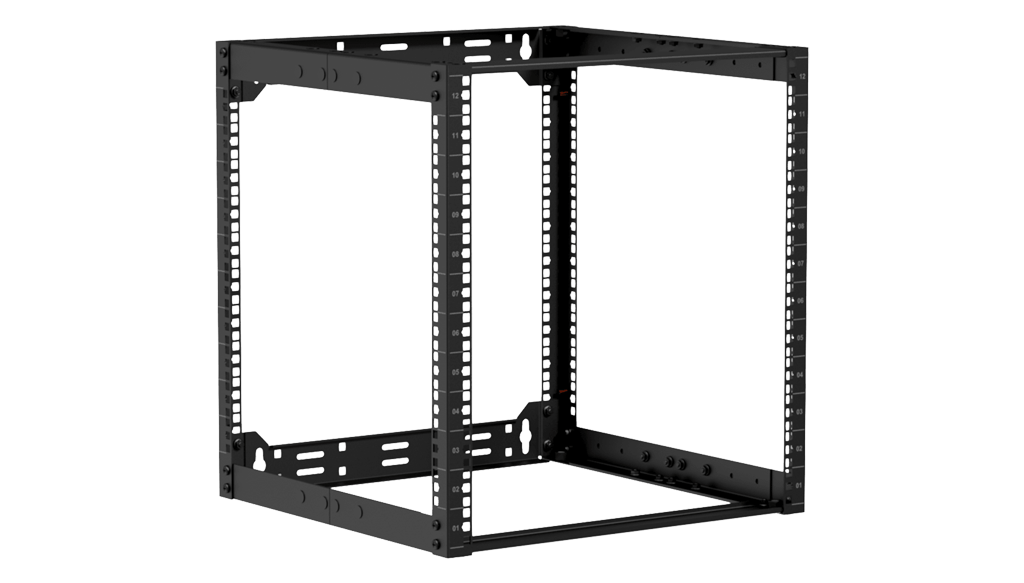

The OPR512A is an in depth adjustable professional and solid constructed open-frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards which is suitable for wall-mounted or floor-standing installation. It ensures maximum installation, connectivity and maintenance ease storing up to 12 units of 19” equipment.

The open frame rack has an adjustable depth of 500 to 700 mm for easy installation and fitment in existing furniture. The rugged construction made of 2 mm thick steel allows pre-loading of the equipment before transportation to the installation site. Finishing is done in a black (RAL9004) powder coating with fine structure while punched equipment mounting profiles on front and both sides offer a multifunctional use of the cabinet. Delivered in a flat-down package, the simple structure allows assembly by a single person in record-breaking time.

PRODUCT FEATURES
Unit height12 HE
Max. usable depth500 ~ 700 mm
Dimensions520 x 558 x 500~700 mm (W x H x D) (excl. rubber feet)
ColoursBlack (RAL9004)
AccessoriesIncluded4 x Levelling feet
  4 x M8 expanding wall bolt
  24 x Cage nuts + screws
 OptionalKM600 – M6 Cage nuts
Max. load standing100 kg
Max. load hanging50 kg
Weight9 kg
Play Video

Additional information

Brand

Caymon

Racks

Racks & stands

Bracket Type

Racks/Cabinet

Rack/Cabinet Type

Rack
