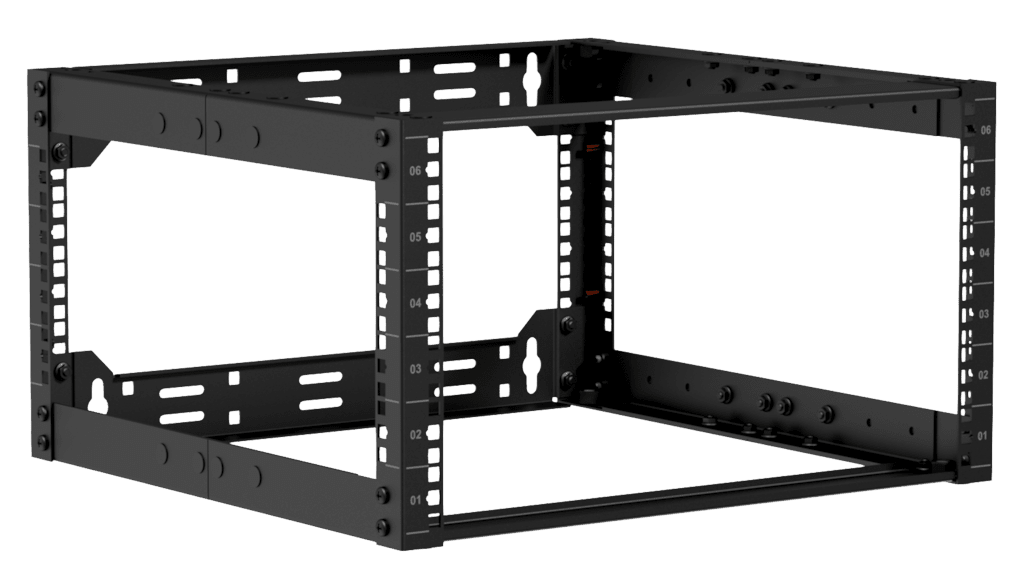

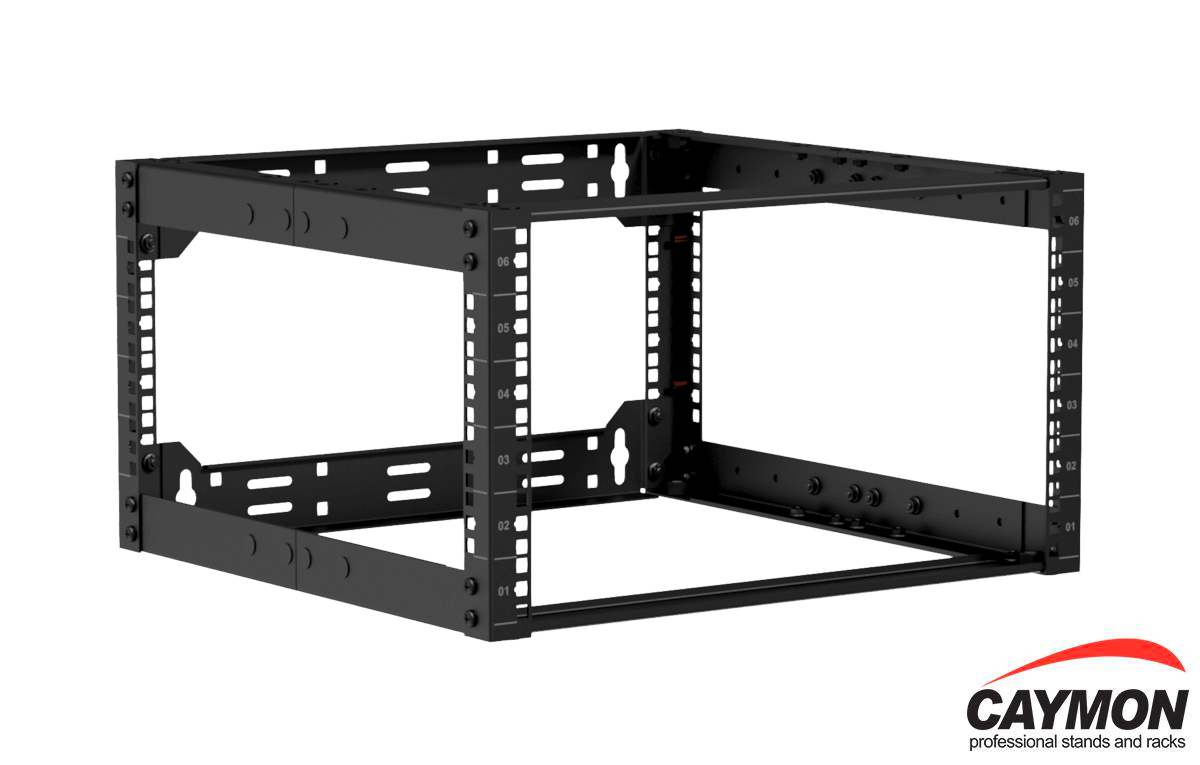

Caymon OPR506A 19″ in depth adjustable open frame rack – 6 unit


Caymon 19″ in depth adjustable open frame rack – 6 unit – 500 ~ 700 mm




19" in depth adjustable open frame rack - 6 unit - 500 ~ 700 mm


  • In depth adjustable
  • Stores up to 6 units of 19” Equipment
  • Punched square holes for use with snap-in cage nuts
  • 2 mm thick cold rolled steel frame
  • Easy assembly in 10 minutes
  • Floor standing & wall mounted use
  • Unrestricted air flow due to open-frame design
  • Stand alone & in-furniture integration
  • Ships as flat-down package

The OPR506A is an in depth adjustable professional and solid constructed open frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards which is suitable for wall-mounted or floor standing installation. It ensures maximum installation, connectivity and maintenance ease storing up to 6 units of 19” equipment.

The open frame rack has an adjustable depth of 500 to 700 mm for easy installation and fitment in existing furniture. The rugged construction made of 2 mm thick steel allows pre-loading of the equipment before transportation to the installation site. Finishing is done in a black (RAL9004) powder coating with fine structure while punched equipment mounting profiles on front and both sides offer a multifunctional use of the cabinet. Delivered in a flat-down package, the simple structure allows assembly by a single person in a record-breaking time.

Unit height6 HE
Max. usable depth500 ~ 700 mm
Dimensions520 x 291 x 500~700 mm (W x H x D) (excl. rubber feet)
ColoursBlack (RAL9004)
Max. load standing100 kg
Max. load hanging25 kg
Weight7.5 kg
AccessoriesIncluded4 x Levelling feet
  4 x M8 expanding wall bolt
  12 x Cage nuts + screws
 OptionalKM600 – M6 Cage nuts
