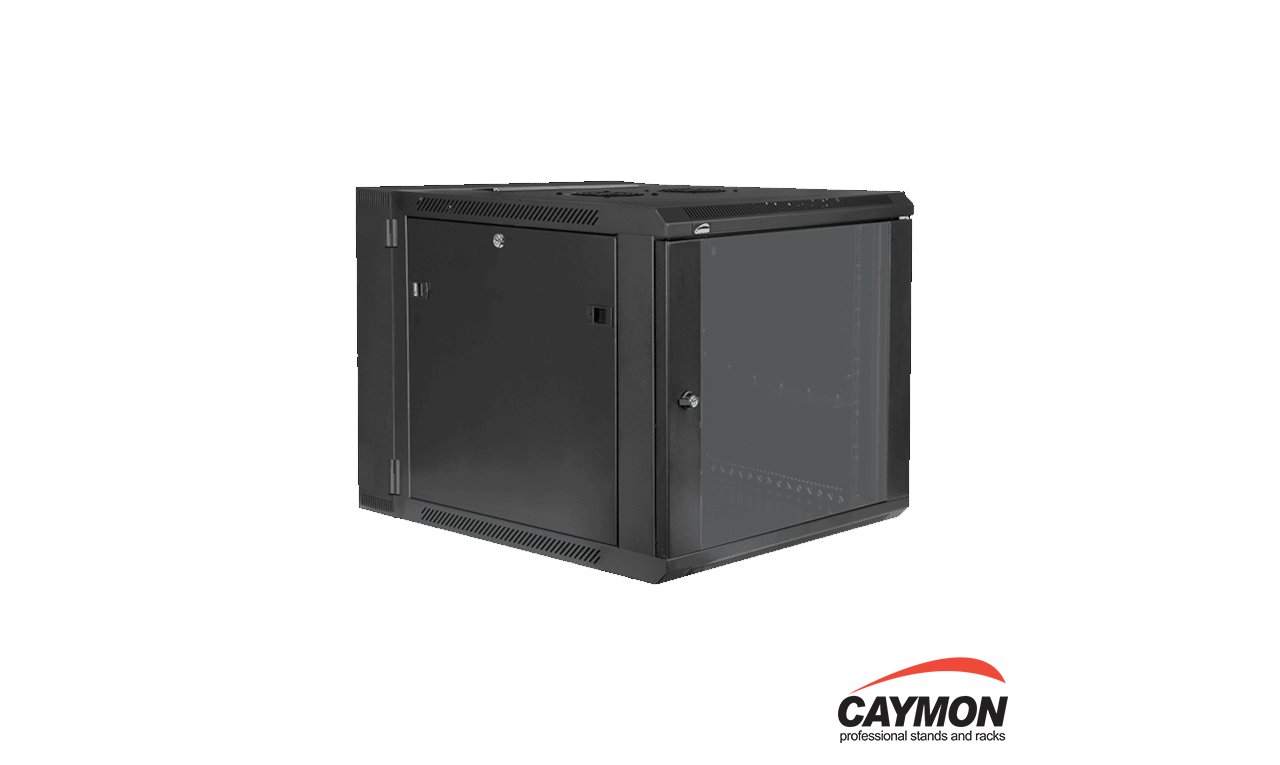

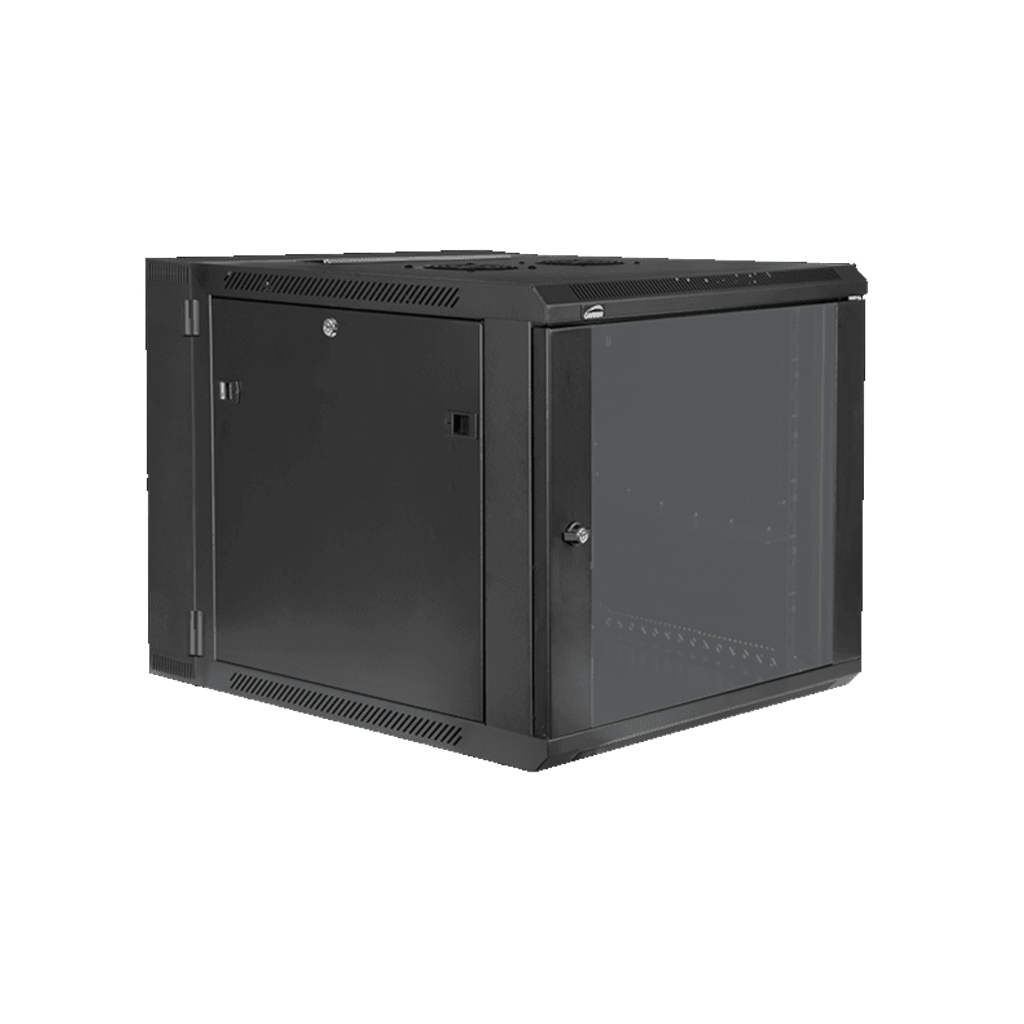

Caymon HPR509 19″ rack cabinet

428.70

In stock

Caymon Rack Cabinet. 9 unit cabinet. Ventilation grid on top. Removable sides for easy installing & cabling. Tempered glass door with keylock.

In stock

Description

HPR509

19" wall rack cabinet - 9 unit - 550mm depth

Highlights

  • Stores up to 9 units of 19” Equipment
  • Integrated ventilation grid on top
  • in depth adjustable 19” profiles (max 510 mm)
  • Loading capacity of 30 kg
  • Tempered glass door with keylock
  • Double section allowing easy access to rear side of equipment
  • Double lock connecting front and rear section
  • Reversible door position


The HPR509 is a professional 19” double section wall rack cabinet which complies to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It ensures maximum installation, connectivity and maintenance ease storing up to 9 units of 19” equipment. The solid construction made of an 1.5 mm thick steel frame and 1.2 mm thick plates is finished with a black (RAL9004) fine structured powder coating. It provides a stable and secure installation while the double section structure allows easy access to the rear side of the equipment. The tempered smokey glass front door is reversible and secured with a key lock which keeps the equipment accessible for authorized persons only. Other present features are removable sides and in depth adjustable 19” profiles with unit measurement indicators and punched square holes for use with snap-in cage nuts.



PRODUCT FEATURES
Dimensions600 x 501 x 550 mm (W x H x D)
Unit height9 HE
Max. usable depth510 mm
Max. load30 kg
Weight26.800 kg
ColoursBlack (RAL9004)
AccessoriesIncluded1 x WPR45LR
  2 x key for front door
  4 x Key for sidepanel lock
  10 x Cage nuts + screws
  1 x Allen key
 OptionalWPR45FS – Fixed shelf
  WPR45LR – L-Rail pair
  WPR10RF – Roof fan 120×120 mm
  SPR10DC – Dust cover brush
  KM600 – M6 Cage nuts
  KS600 – M6 x 16 mm bolt DIN7985 Black
