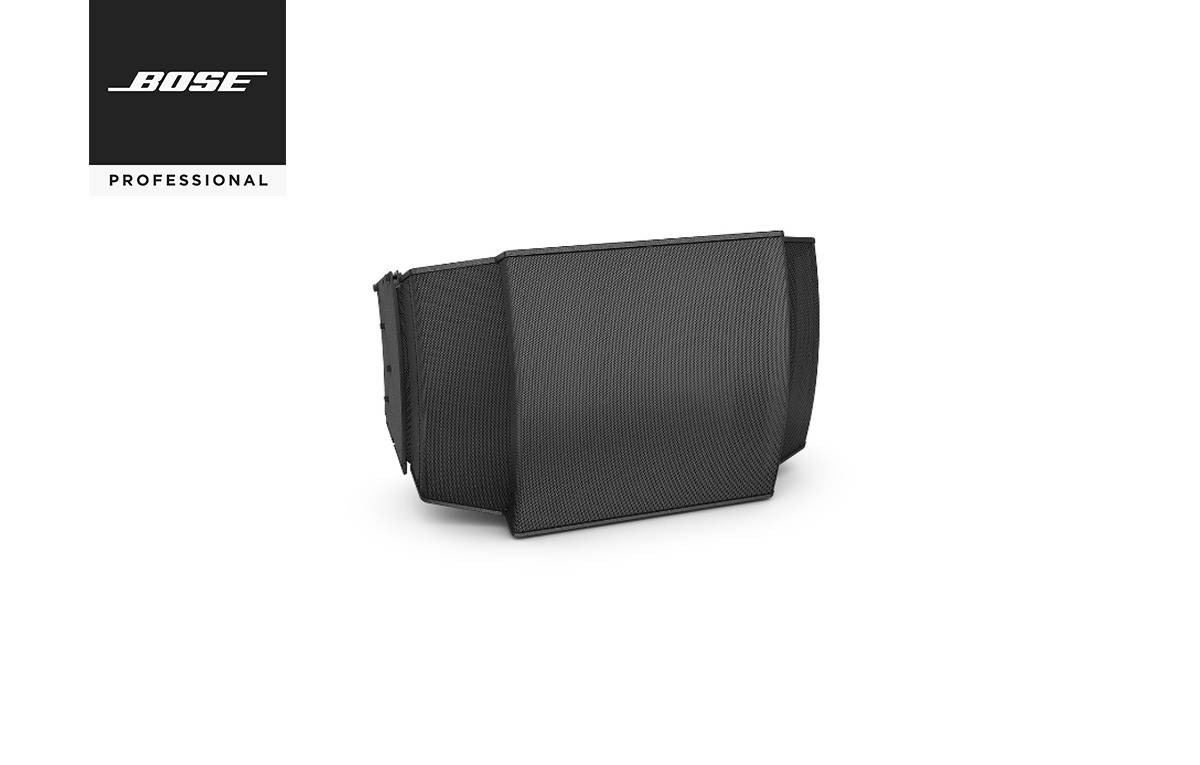

Bose RoomMatch Symmetrical 40° vertical modules

Call for price

Bose RoomMatch RM9010 array module delivers superb audio quality for fixed-installations in almost any room size, shape, acoustic requirement or budget.

SEND EMAIL QUERY

Description

Bose RoomMatch Symmetrical 40° vertical modules – Doneo Malta

Bose RoomMatch® DeltaQ™ array loudspeakers are designed for permanent installation in the finest performing arts centers, auditoriums, sports arenas, dance clubs and houses of worship, in which the large-format waveguides with choice of 42 coverage patterns can provide best-in-class coverage control, sound quality and vocal clarity even in venues with difficult acoustics.

Features

DeltaQ™ array technology improves sound quality compared to conventional line-array loudspeakers by providing better horizontal coverage control to reduce wall reflections, more vertical patterns for smaller arrays without coverage compromise, and selectable directivity or “Q” per box for consistent front-to-back coverage

42 large-format waveguide patterns – allows designers to customize array coverage to exact venue dimensions to minimize wall reflections and deliver best-in-class sound quality even in venues with difficult acoustics

Continuous-Arc Diffraction-Slot (CADS) Manifold – provides smooth high-frequency array summation and allows choice of 5 vertical-coverage patterns. Select number of array modules based on sound level, low-frequency pattern control and budget requirements, independent of total array vertical coverage

Bose EMB2 compression drivers – deliver the vocal power normally associated with 3-way systems with frequencies from 500 Hz to 16 kHz projected from the large-format waveguides for remarkably consistent coverage and vocal clarity

Integrated Rigging – allows fast installation of arrays with up to 8 full-range modules at 10:1 safety factor

Available RMS215 or RMS218 subwoofers – extend full-range performance to 40 Hz or 25 Hz, in flown or ground stack arrays

Available Bose PowerMatch® amplifiers – configurable to provide optimal power for all RoomMatch modules and subwoofers; includes integrated loudspeaker DSP functions with optional Dante® digital audio network interface

Applications

  • Theaters
  • Houses of worship
  • Auditoriums
  • Performing arts venues
  • Arenas

Specs

Technical Summary

Frequency Response (-3 dB)
60 Hz – 16 kHz

Frequency Range (-10 dB)
55 Hz – 16 kHz

Nominal Coverage Pattern (H x V)
RM5540: 55° H x 40° V
RM7040: 70° H x 40° V
RM9040: 90° H x 40° V
RM12040: 120° H x 40° V

Long-Term Power Handling
Low Frequency: 500 W (2000 W peak)
High Frequency: 150 W (600 W peak)

Nominal Impedance
Low Frequency: 4 Ω
High Frequency: 8 Ω

Sensitivity (SPL / 1 W @ 1 m)
LF No EQ: 94 dB
LF With EQ: 93 dB
HF No EQ: 106 dB – 110 dB*
HF With EQ: 99 dB – 103 dB*

Maximum SPL @ 1 m
LF No EQ: 121 dB
LF With EQ: 120 dB
HF No EQ: 128 dB – 132 dB*
HF With EQ: 121 dB – 125 dB*

Calculated Maximum SPL @ 1 m, peak
LF No EQ: 127 dB
LF With EQ: 126 dB
HF No EQ: 134 dB – 138 dB*
HF With EQ: 127 dB – 131 dB*

*Varies by coverage pattern

Additional information

Brand

Bose

Speaker Type

Line Array Speakers
