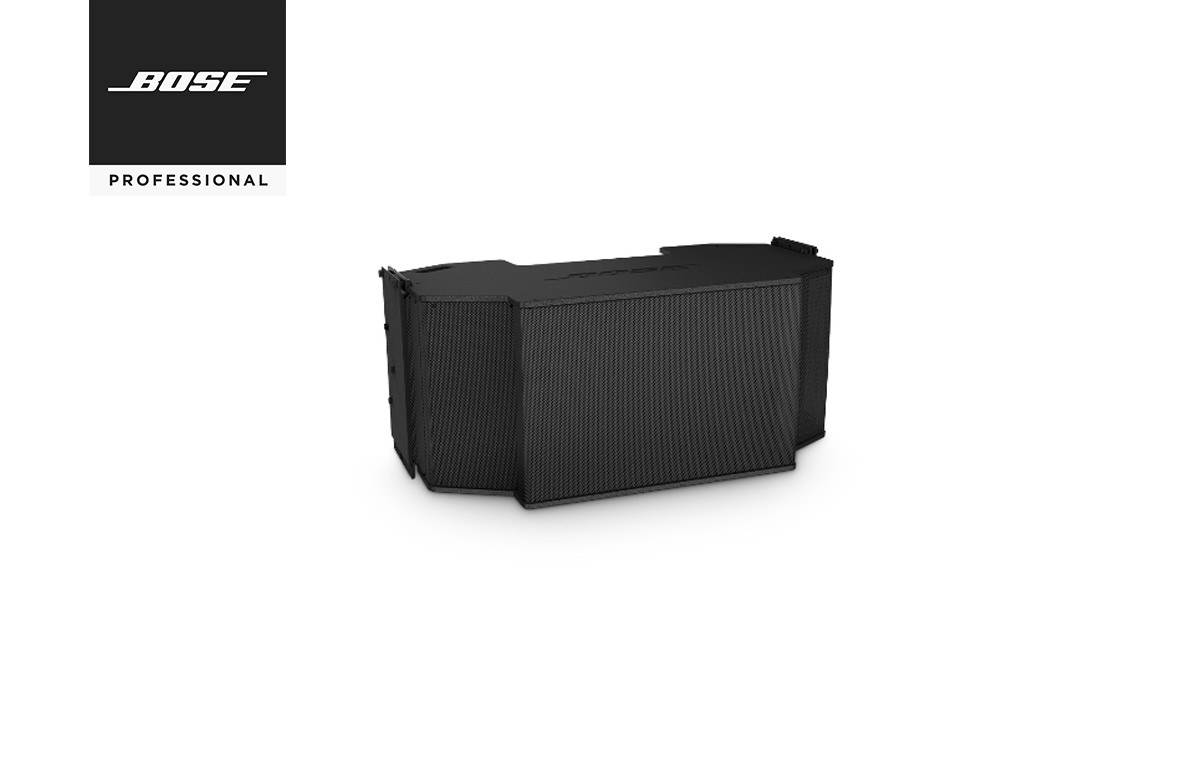

Bose RoomMatch RM9010 array module delivers superb audio quality for fixed-installations in almost any room size, shape, acoustic requirement or budget.
Bose RoomMatch® DeltaQ™ array loudspeakers are designed for permanent installation in the finest performing arts centers, auditoriums, sports arenas, dance clubs and houses of worship, in which the large-format waveguides with choice of 42 coverage patterns can provide best-in-class coverage control, sound quality and vocal clarity even in venues with difficult acoustics.
DeltaQ™ technology advances line-array loudspeaker design by allowing different “Q” (directivity) for each module in the array to improve sound quality by better matching array coverage to audience areas and distance, with improved phase coherency.
42 large-format waveguide patterns – allows designers to customize array coverage to exact venue dimensions to minimize wall reflections and deliver best-in-class sound quality even in venues with difficult acoustics
Continuous-Arc Diffraction-Slot (CADS) Manifold – provides smooth high-frequency array summation and allows choice of 5 vertical-coverage patterns. Select number of array modules based on sound level, low-frequency pattern control and budget requirements, independent of total array vertical coverage
Bose EMB2 compression drivers – deliver the vocal power normally associated with 3-way systems with frequencies from 500 Hz to 16 kHz projected from the large-format waveguides for remarkably consistent coverage and vocal clarity
Integrated Rigging – allows fast installation of arrays with up to 8 full-range modules at 10:1 safety factor
Available RMS215 or RMS218 subwoofers – extend full-range performance to 40 Hz or 25 Hz, in flown or ground stack arrays
Available Bose PowerMatch® amplifiers – configurable to provide optimal power for all RoomMatch modules and subwoofers; includes integrated loudspeaker DSP functions with optional Dante® digital audio network interface
Frequency Response (-3 dB)
60 Hz – 16 kHz
Frequency Range (-10 dB)
55 Hz – 16 kHz
Nominal Coverage Pattern (H x V)
RM5510: 55° H x 10° V
RM7010: 70° H x 10° V
RM9010: 90° H x 10° V
RM12010: 120° H x 10° V
Long-Term Power Handling
Low Frequency: 500 W (2000 W peak)
High Frequency: 150 W (600 W peak)
Nominal Impedance
Low Frequency: 4 Ω
High Frequency: 8 Ω
Sensitivity (SPL / 1 W @ 1 m)
LF No EQ: 94 dB
LF With EQ: 93 dB
HF No EQ: 107 dB – 111 dB*
HF With EQ: 104 dB – 107 dB*
Maximum SPL @ 1 m
LF No EQ: 121 dB
LF With EQ: 120 dB
HF No EQ: 129 dB – 133 dB*
HF With EQ: 126 dB – 129 dB*
Calculated Maximum SPL @ 1 m, peak
LF No EQ: 127 dB
LF With EQ: 126 dB
HF No EQ: 135 dB – 139 dB*
HF With EQ: 132 dB – 135 dB*
*Varies by coverage pattern
| Brand | Bose |
|---|---|
| Speaker Type | Line Array Speakers |
