Bose RoomMatch MB24/MB24WR

Call for price

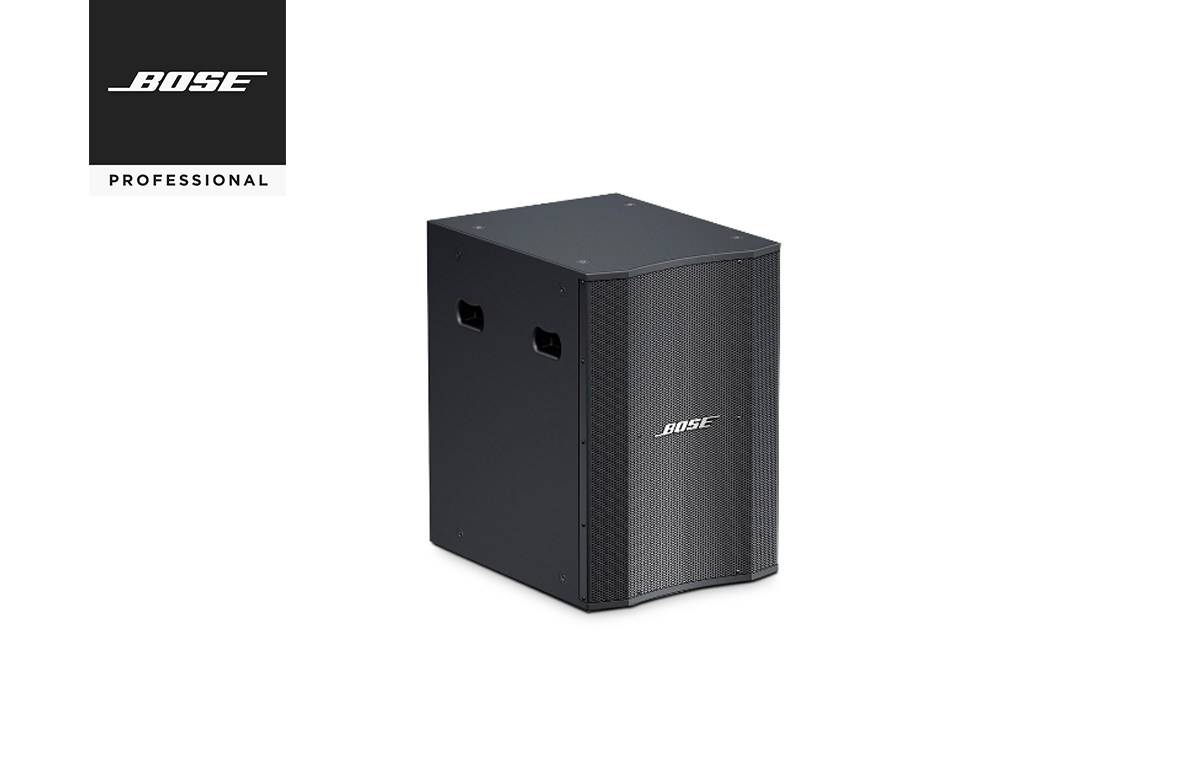

Bose MB24/MB24WR Compact 2 x 12″ (305 mm) configuration designed to provide bass augmentation for Bose® LT arrays.

SEND EMAIL QUERY

Description

Bose RoomMatch MB24WR Subwoofer – Doneo Malta

Compact 2 x 12″ (305 mm) configuration designed to provide bass augmentation for Bose® LT arrays and other subwoofer applications. Allows minimal-height arrays when used with LT mid/high loudspeakers.

MB24 WR for indoor and outdoor applications.

Features

Low-frequency reinforcement for Bose® LT arrays and other subwoofer applications that require 40 – 280 Hz bass response

Front-loaded tapered transmission line design provides peak-free extended low-frequency response and reduces port turbulence distortion

2 x 12″ (305 mm) high-excursion woofers with 4″ (102 mm) voice-coils and 800 W long-term power rating provide high SPL with fast transient response

Compact enclosure optimized for bass-array applications when cardioid or other directional-bass configurations are required for reverberant spaces

Applications

  • Stadiums
  • Arenas
  • Houses of worship
  • Auditoriums
  • Performing arts venues

Specs

Technical Summary

Frequency Response (+/-3 dB)
40 Hz – 280 Hz

Frequency Range (-10 dB)
36 Hz – 290 Hz

Nominal Dispersion
Omni-directional below 200 Hz

Sensitivity (SPL / 1 W @ 1 m)
94 dB SPL

Maximum SPL @ 1 m
123 dB SPL (129 dB SPL peak)

Long-Term Power Handling
800 W (3200 W peak)

Nominal Impedance
4 Ω

Additional information

Brand

Bose

Speaker Type

Subwoofer

Title
