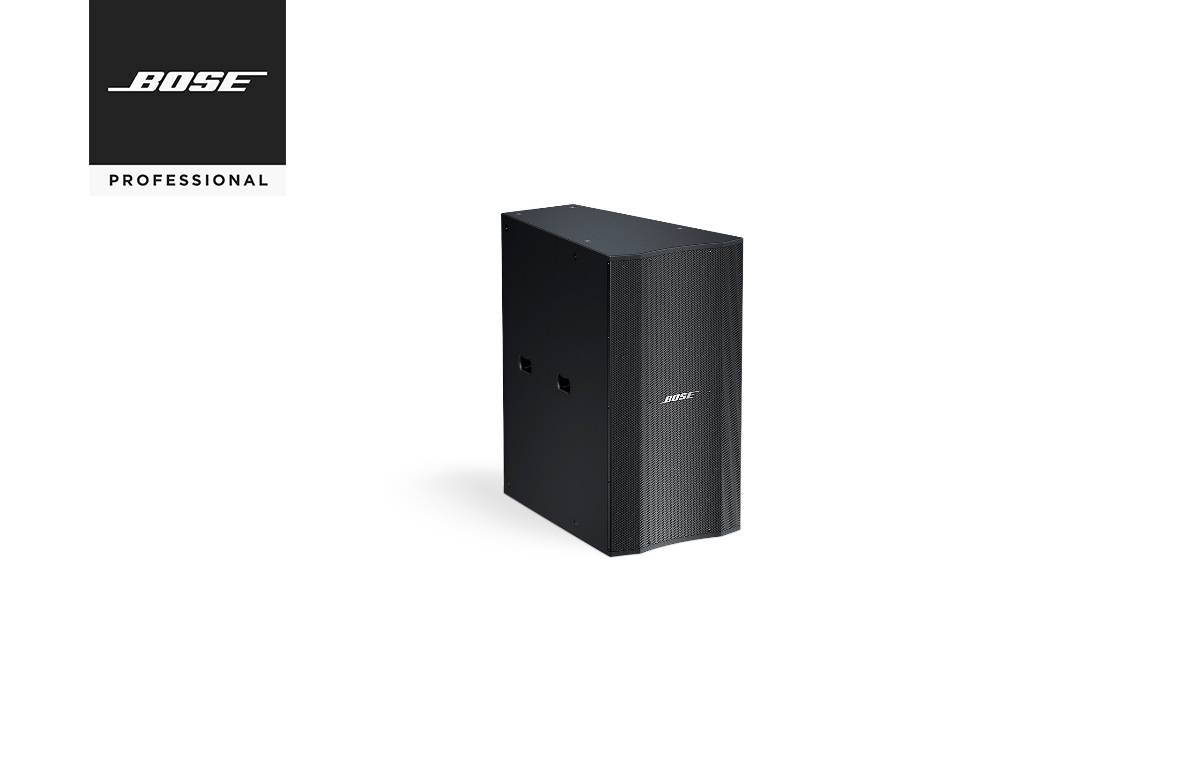

Large-format waveguide and narrow 30° x 20° pattern designed for use with other LT loudspeakers to form Coherent Zone arrays in medium to large permanent installations.
Large-format waveguide and narrow 30° x 20° pattern designed for use with other LT loudspeakers to form Coherent Zone arrays in medium to large permanent installations requiring precise coverage and high intelligibility.
For indoor and outdoor applications.
Features
30° x 20° coverage for long-throw applications in stadiums and arenas. (This is the only mid/high loudspeaker currently available with 30° x 20° pattern.)
Mid/high-frequency loudspeaker designed for use in arrays with separate LF augmentation (Bose® MB12 or MB24 bass arrays) or voice-only applications
Bose V2 midrange manifold sums output of 2 x 4.5″ (114 mm) extended-range cone drivers for lower breakup distortion and improved transient response. Provides a smoother, more natural vocal range compared to single 8″ to 12″ woofers. The LT 3202 WR utilizes four Bose V2 midrange manifolds
Bose coherent zone waveguide provides effective 30° x 20° pattern control to approximately 1 kHz. Minimizes loudspeaker overlap in arrays to reduce comb-filter interference and improve intelligibility
Applications
- Stadiums
- Arenas
- Houses of worship
- Auditoriums
- Performing arts venues
- Outdoor event venues
Specs
Technical Summary
Frequency Response (+/-3 dB)
220 Hz – 16 kHz
Frequency Range (-10 dB)
150 Hz – 18 kHz
Nominal Dispersion
30° H x 20° V
Sensitivity (SPL / 1 W @ 1 m)
110 dB SPL
Maximum SPL @ 1 m
134 dB SPL (140 dB SPL peak)
Long-Term Power Handling
280 W (1120 W peak)
Nominal Impedance
16 Ω
