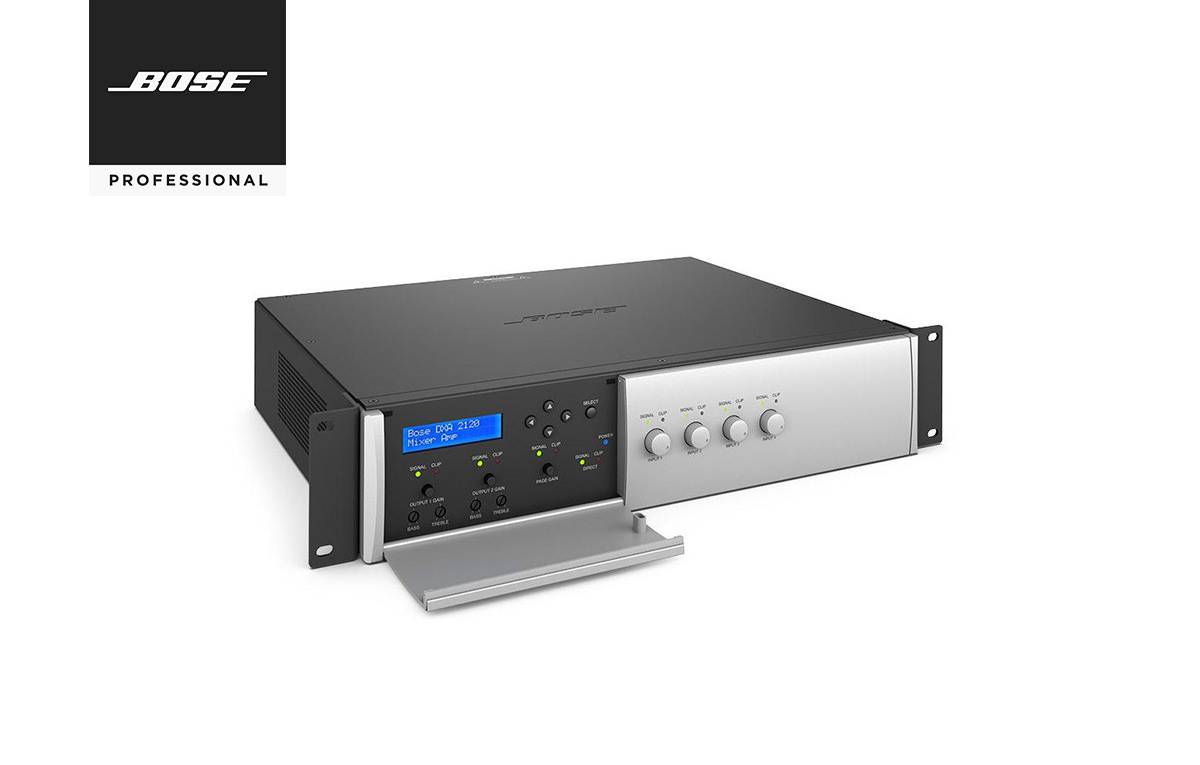

Bose FreeSpace DXA2120

Call for price

Bose FreeSpace DXA 2120 digital mixer/amplifier features a 6-in by 2-out design that provides signal processing, mixing, routing, paging & two-channel amplification.

SEND EMAIL QUERY

Description

Bose FreeSpace IZA 190-HZ – Doneo Malta

The Bose® FreeSpace® DXA 2120 digital mixer/amplifier features a 6-in by 2-out design that provides signal processing, mixing, routing, paging and two-channel amplification for installed applications. It offers three versatile operating modes and is easily configured using the controls on the front panel. No external computer is required.

Features

Six inputs: four mic/line inputs with choice of balanced Euroblock or unbalanced RCA connectors, one page input and one direct input

Two powered outputs that can operate at high or low impedance: 2 x 120 W at 4 ohms , 2 x 65 W at 8 ohms, or 2 x 100 W at 70/100V

Three operating modes for greater flexibility in installed music or speech applications: Mixer Mode, Dual Mono Select Mode, and Stereo Select Mode

Easy setup and control via onboard controls – no computer needed

DSP includes loudspeaker EQs and dynamic EQ functions engineered specifically for Bose loudspeakers

Opti-voice® paging provides a smooth transition between music and announcements

24-volt DC backup power connection for added reliability and integration onto fire and evacuation systems

Applications

  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hotels
  • Lobbies and conference rooms

Specs

Technical Summary

Amplifier Power
2 x 120 W at 4 ohms , 2 x 65 W at 8 ohms, or 2 x 100 W at 70/100V

Signal-to-Noise Ratio
75 dB (below rated power, A-weighted)

THD
≤0.5 % (at full rated power)

Dynamic Range
80 dB

Output Channels
2 channels

Input Channels
Mic/Line Inputs: 4 balanced
Line Inputs: 4 unbalanced
Page Inputs: 1 balanced
Direct Inputs: 1 balanced

Additional information

Brand

Bose

Amplifier Connectivity

Microphone In

Title
