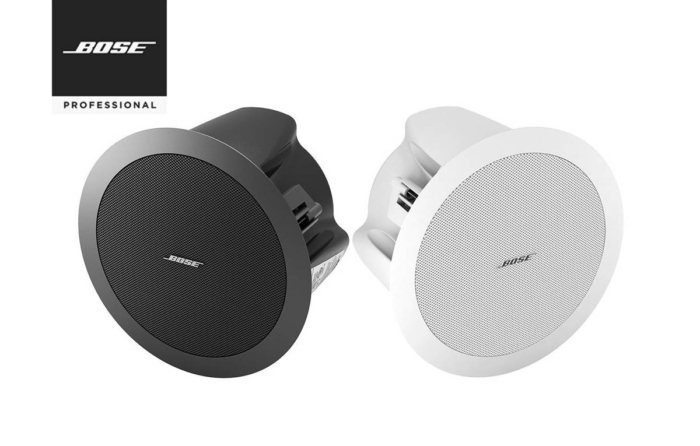

Bose FreeSpace DS 16F Flush-Mount Loudspeaker

Call for price

Bose Professional FreeSpace DS 16F Flush-Mount Loudspeaker.

SEND EMAIL QUERY

Description

Bose FreeSpace DS 16F

Entry-level, full-range, flush-mount loudspeaker designed for background music and speech reproduction in a wide range of installed applications. Wide, even 140° conical pattern and frequency range down to 80 Hz.

For indoor applications only.

EN 54-24 compliant DS loudspeaker models are also available for use in Voice Alarm (VA) systems. Please contact your local Bose team for availability information.

FEATURES

Full-range loudspeaker with a single 2.25″ (57 mm) driver in a ported enclosure to deliver a 140° conical coverage pattern and clear, intelligible music and speech reproduction for flush-ceiling or pendant-mount applications

Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the loudspeaker grille

Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality

Can be combined with either surface- or flush-mount FreeSpace 3 Acoustimass® module for extended bass response

Supported by a suite of accessories, including ceiling-mount bracket, adjustable tile bridge, pendant-mount kit and square grille

Applications

  • Retail stores
  • Restaurants and bars
  • Concourses
  • Transportation facilities
  • Resorts and hospitality venues
  • Houses of worship

SPECS

Technical Summary

Frequency Response (+/-3 dB)

95 Hz – 17 kHz

Frequency Range (-10 dB)
80 Hz – 19 kHz

Nominal Dispersion
140° conical

Long-Term Power Handling
16 W (64 W peak)

Sensitivity (SPL / 1 W @ 1 m)
84 dB SPL

Maximum SPL @ 1 m
96 dB SPL (102 dB SPL peak)

Nominal Impedance
8 Ω (transformer bypassed)

Mechanical Diagrams

Front view

Rear View

Side View

Additional information

Brand

Bose

Speaker Type

Ceiling

Colour

Black, White
