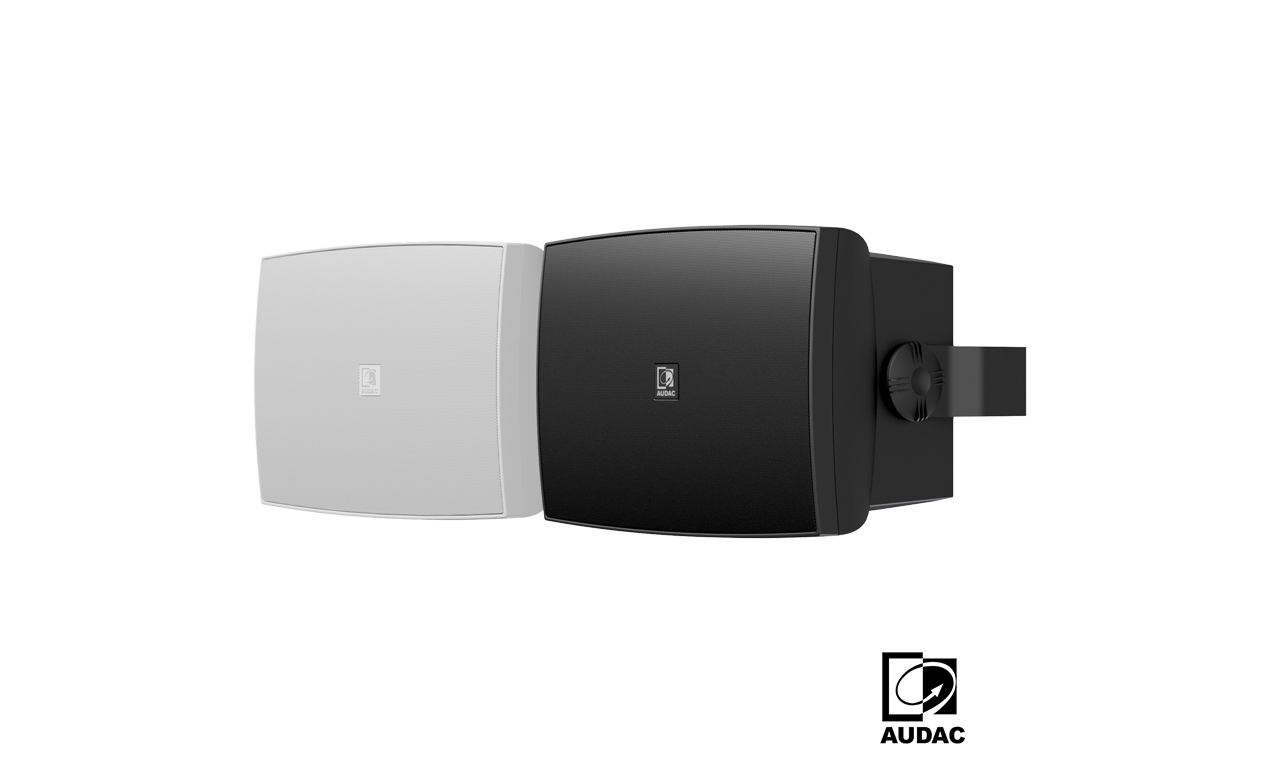

Audac WX802MK2_O – Outdoor Wall Speaker

303

The WX802/O is a powerful 2-way performance speaker which is specially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech.

Outdoor universal wall speaker 8″

  • 1″ Dome tweeter
  • 8″ Low frequency loudspeaker
  • Aluminum mounting bracket (MK2 version)
  • Aluminum grill
  • AWX5™ waterproof connector
  • Vertical and horizontal mounting
  • Multi-tapping 70V / 100V line transformer
SEND EMAIL QUERY

Description

The WX802/O is a powerful 2-way performance speaker which is specially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech. It lends itself to a wide variation of outdoor applications, ensuring a clear and powerful sound reproduction. Hereby, the WX802/O is the perfect companion for outdoor applications where clear background music is desirable throughout the day and a more powerful sound with deeper bass is necessary when the party erupts after sunset. The sound is coming from a weatherproof treated 8” low-frequency loudspeaker in combination with a 1” dome tweeter which is built in an aesthetical and solid synthetic enclosure.

The material used for the mounting bracket on the outdoor versions has been improved by using aluminum, making the WX series MK2 even more resistant to extreme weather conditions. The bracket allows users to mount the WX802/O vertically as well as horizontally.

Special treatment with powder coating provides the necessary protection for all weather conditions. Because of this, the brackets can pass the 96 hours salt-spray test. A drain hole behind the aluminum front grill allows letting the moisture flow out when condensation occurs. The waterproof AWX-5 connector at the backside makes sure that this speaker meets the IP55 standards.

Technical Specifications

Available Models
WX802MK2/OB Black Version
WX802MK2/OW White Version

System Specifications
CrossoverFrequency2.4 kHz
 TypePassive built-in
DriversHF1″
 LF8″
FrequencyRange ( -10 dB)50 Hz – 20 kHz
 Response (± 3 dB)60 Hz – 17 kHz
Impedance 16 Ω

Sensitivity (1W/1m)89 dB
Sound Pressure (Max. W/1m)@ 100 V106 dB
 @ 16 Ω108 dB
Speaker Type 2 way
RMS/AES power handling70W
Peak power handling280W
Program power handling140W
DispersionHorizontal110°
 Vertical110°
Line Transformer Tappings183 Ω – 100 V / Not used – 70 V / 60 W
 2167 Ω – 100 V / 60 W – 70 V / 30 W
 3333 Ω – 100 V / 30 W – 70 V / 15 W

Product Features
Dimensions 270 x 360 x 215 mm (W x H x D)
Weight 7.5 kg
Operating Temperature -25 °C ~ 70 °C
Construction ABS
Mounting & Handling Mounting Bracket
Front finish Steel grill
Colours Black (RAL9005) (WX802MK2/OB)
  White (RAL9003) (WX802MK2/OW)
AccessoriesIncluded Mounting bracket

Recommend Applications Sporting Facilities
  Retail
  Corporate
  Bars & Restaurants
  Outdoor
  Clubs

Speaker Matrix

Additional information

Brand

Audac

Colour

Black, White

Speaker Type

Bookshelf / Wall-Mounted, Surface mount
